The Heli-22 Wifi (Bi-directional)

Circular Polarised, Bi Directional Mine/Tunnel Antenna

The Heli-22 Wifi offers medium to high gain, which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes.

The Heli-22 Wifi is a dual-band 2.4 GHz and 5 GHz Wi-Fi antenna, radiating in  both directions (i.e. bi-directional). This makes them ideal for the coverage of both Wi-Fi bands in mining and other type of tunnels.

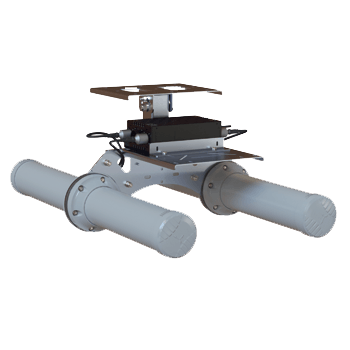

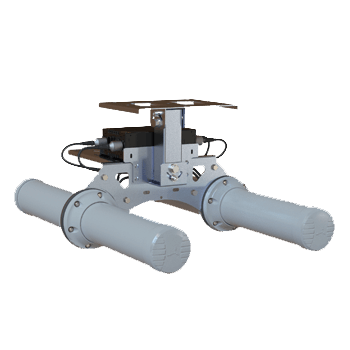

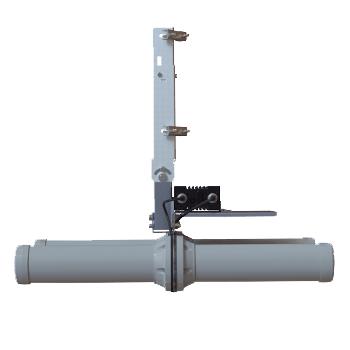

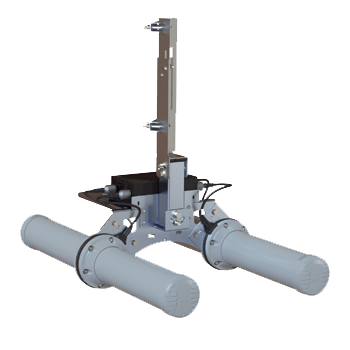

These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mine automation. These antennas are available in both Left-hand Circular (LHC) & Right-Hand Circular (RHC) polarised antenna elements to provide optimal decorrelation within a MIMO deployment when using the BRKT-45, resulting in optimum performance. The decorrelation is due to the polarisation difference and spatial diversity, between the two antenna elements, which enhances MIMO performance and RF reliability within a mining tunnel.

The dual-band Wi-Fi connection propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many Wi-Fi signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.

The Heli-22 WiFi Antenna Frequencies & Gains

2400 - 2500 MHz	12 dBi
5000 - 6000 MHz	13 dBi

Impedance	50 Ohm
Polarization	Circular (LHC and RHC)
VSWR	<1.5:1 over 90% of the band
Connectors	N-Male
Input Power MAX	30 watt
Water Resistance	IP 65
Radome Material	ABS & PVC
Dimensions	526 mm x 415 mm x 266 mm
Weight	3.9 kg

Download Geek Sheet
