InRouter302 LTE CAT 4 Router IR302-FQ38-WLAN

InRouter302 LTE CAT 4 Router

Availablity: Out of Stock
  • Equipped with two Ethernet ports and an optional Wi-Fi interface.
  • Dual SIM failover and link backup
  • Encrypted VPN transmission, firewall protections and multi-level authorization control
  • Centralized cloud management platform allowing users to manage & monitor InHand devices remotely.
  • Easy-to-Use Web Interface
  • Pairs perfectly with the Bolton Technical Crossbow 5G
Thank you for contacting us! We will be in touch soon.

Compact and Rugged Housing Design LTE VPN Router

The InRouter 302 features a compact design for easy installation, dual-sim technology to keep you connected, a comprehensive security network to protect all data from attacks, and remote management capabilities.

Speeds Up to 150 Mbps
Dual-Sim Card Capabilities
Perfect for a wide range of IoT applications
All parts included for easy set up
Works with Vodacom, MTN, Telkom and Cell C
InRouter 302 LTE CAT 4

Who is This For?

For homes, offices, RVs, & commercial IOT applications

Perfect for a wide range of IoT applications (ATMs. POC, EV Charging, Smart Meters, Kiosks, etc.) and homes where broadband internet is unavailable or too expensive.

InHand IR302 is a cost-effective, compact industrial 4G LTE router, equipped with two Ethernet ports, dual SIM holders and an optional Wi-Fi interface. It provides easy, reliable, and secure connectivity. This industrial cellular router can be used in a wide range of industrial and commercial IoT applications, giving you an option of better performance but lower cost.

Benefit from IR302’s compact design, so the narrow installation space will no longer be a roadblock. Panel mounting and DIN-Rail mounting are available for various deployment scenarios.

Fully Industrial Design

EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial LTE router offers high-quality networking solutions for unattended sites and works well even in harsh environments.

Compatible Carriers

IR302 is a convenient plug-and-play router. It will automatically and quickly connect to the network after plugging in the power supply and inserting the SIM cards. It is functionality meets kinds of carriers' access standards from many countries. You can rest assured to use our products for business.

Reliable Network Connection

With Dual SIM failover and link backup, IR302 provides a reliable network connection for users.

Strong Security Protection

The IR302 is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.

Easy-to-Use Web Interface

The user-friendly web interface will help you with the configuration and management of IR302 more efficiently.

Device Manager-Free Remote Centralized Management Platform

IR302 is compatible with InHand Device Manager, a free centralized cloud management platform allowing users to manage & monitor InHand devices remotely.

Compact and Rugged Housing Design LTE VPN Router

The InRouter 302 features a compact design for easy installation, dual-sim technology to keep you connected, a comprehensive security network to protect all data from attacks, and remote management capabilities.

Speeds Up to 150 Mbps
Dual-Sim Card Capabilities
Perfect for a wide range of IoT applications
All parts included for easy set up
Works with Vodacom, MTN, Telkom and Cell C
InRouter 302 LTE CAT 4

Who is This For?

For homes, offices, RVs, & commercial IOT applications

Perfect for a wide range of IoT applications (ATMs. POC, EV Charging, Smart Meters, Kiosks, etc.) and homes where broadband internet is unavailable or too expensive.

InHand IR302 is a cost-effective, compact industrial 4G LTE router, equipped with two Ethernet ports, dual SIM holders and an optional Wi-Fi interface. It provides easy, reliable, and secure connectivity. This industrial cellular router can be used in a wide range of industrial and commercial IoT applications, giving you an option of better performance but lower cost.

Benefit from IR302’s compact design, so the narrow installation space will no longer be a roadblock. Panel mounting and DIN-Rail mounting are available for various deployment scenarios.

Fully Industrial Design

EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial LTE router offers high-quality networking solutions for unattended sites and works well even in harsh environments.

Compatible Carriers

IR302 is a convenient plug-and-play router. It will automatically and quickly connect to the network after plugging in the power supply and inserting the SIM cards. It is functionality meets kinds of carriers' access standards from many countries. You can rest assured to use our products for business.

Reliable Network Connection

With Dual SIM failover and link backup, IR302 provides a reliable network connection for users.

Strong Security Protection

The IR302 is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.

Easy-to-Use Web Interface

The user-friendly web interface will help you with the configuration and management of IR302 more efficiently.

Device Manager-Free Remote Centralized Management Platform

IR302 is compatible with InHand Device Manager, a free centralized cloud management platform allowing users to manage & monitor InHand devices remotely.

IR302 Router
IR302 Router
Power Supply
Power Supply
Cellular Antenna
Cellular Antenna
Cellular Antenna
Wifi Antenna
Network Cable
Network Cable

InRouter302 Specifications

HARDWARE PLATFORM
CPU Platform 580MHz
RAM 128MB DDR2
Flash 32MB SPI
INTERFACE

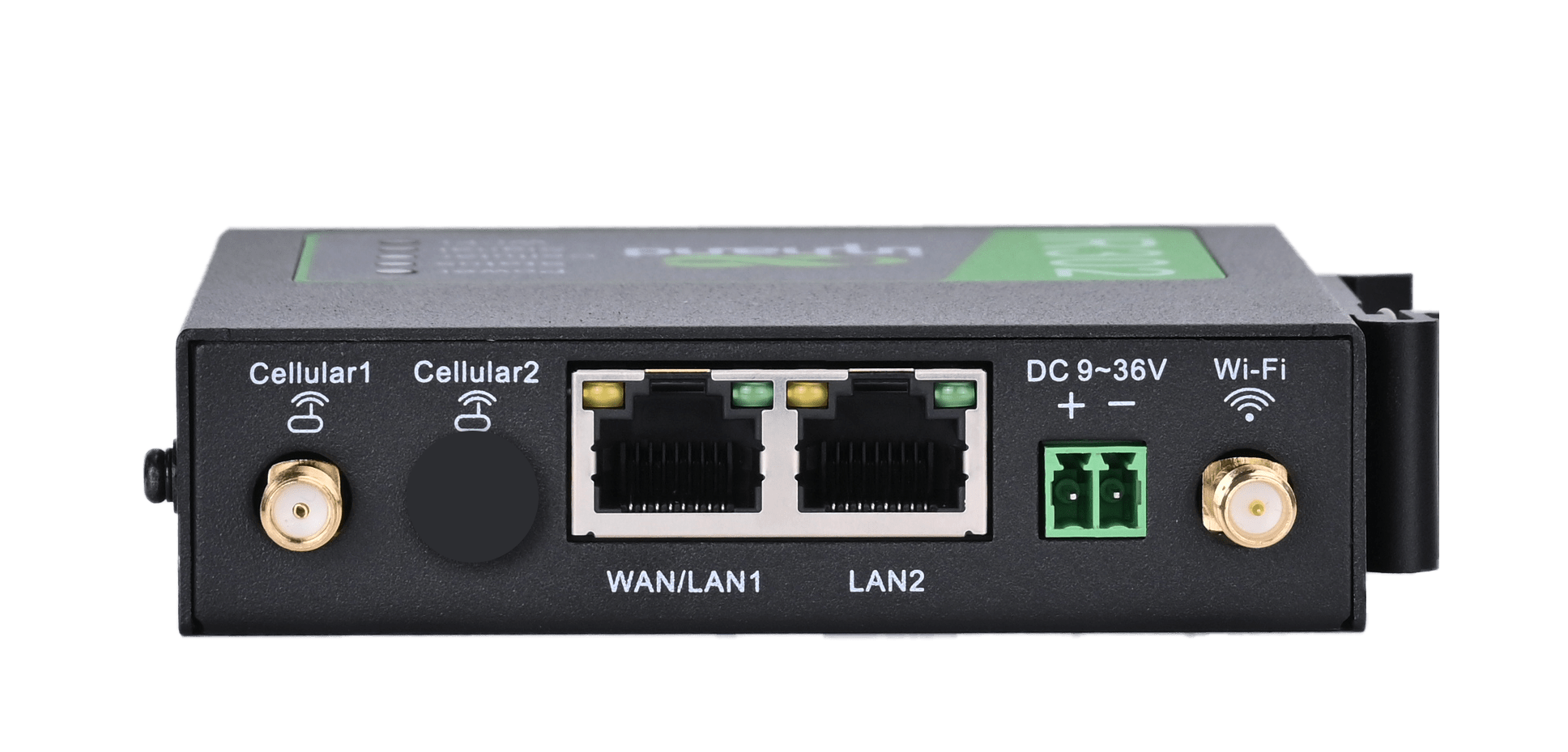

Ethernet Port 2* 10/100Mbps fast Ethernet port, LAN/WAN port 1.5KV network isolation transformer protection Note: IR301-FQ02(- -W) has one port only
Serial Port IR301 has 2 serial ports. 1*RS-232 and 1*RS-485 in RJ45 form. IR302 has no serial port.
Power Supply DC9- -36V, over-current protection, anti-reverse connection, 2 PIN industrial terminal block
Reset Button Pinhole reset button
SIM Card Dual drawer-type SIM card slots. 2FF SIM
Wi-Fi (Optional) IEEE 802.1 1b/g/n, 150Mbps
Antenna Connector 3G/4G: SMA x 1 Wi-Fi: RP-SMA x 1 Note: North America models (FQ38, FQ33) have 2 x SMA 4G antennas. IR301-FQ02(-W) has only 1 SMA 4G cellular antenna
Ground Terminal Supports
MECHANICAL SPECS
Dimensions (mm) 90X90x25mm
Weight (g) 240g

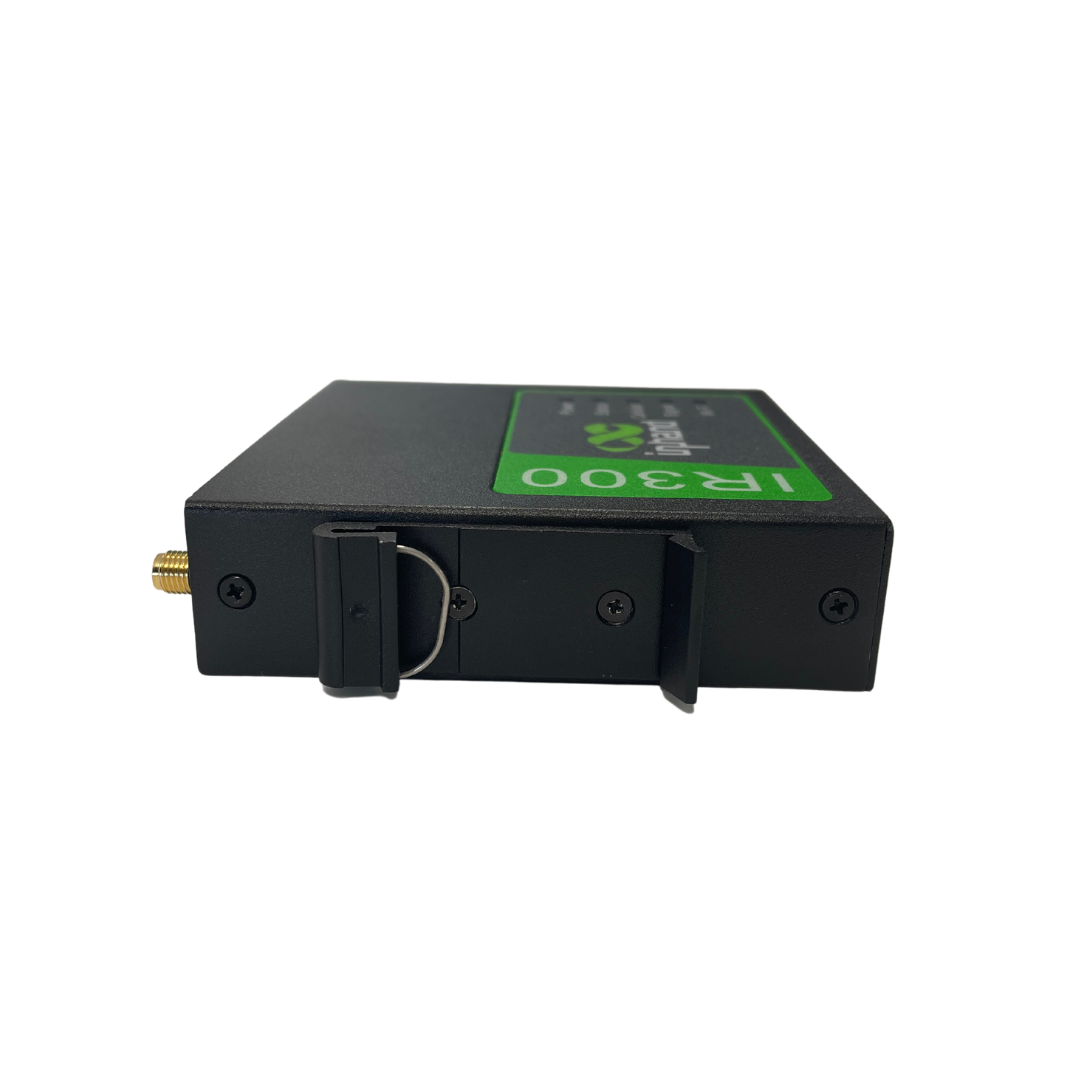

Installation Method Panel mounting, rail mounting
Protection Rating IP30
Housing Metal
Cooling Fanless
POWER RATE
Working Power 200-220mA@12V
Standby Power 240mA@12.0V
Peak Power 90mA-120mA@12V
WI-FI TRANSMIT POWER
Transmit Power 802.11b: 16dBm +/-2dBm (11Mbps) 802.11g: 16dBm +/-2dBm (54Mbps) 802.11n@2.4GHz: 16dBm +/-2dBm (HT20 MCS7) 802.11n@2.4GHz: 16dBm +/-2dBm (HT40 MCS7)
AMBIENT ENVIRONMENT
Storage Temperature -40 ~ 85℃
Operating Temperature -20 ~ 70℃
Ambient Humidity 5 ~ 95% (non-condensing)
INDICATOR
LED Power, Status, Cellular, Wi-Fi, cellular Signal
EMC
Static EN61000-4-2, level 2
Radiation Electric Field EN61000-4-3, level 2
Pulsed Electric Field EN61000-4-4,level 2
Surge EN61000-4-5,level 2
Conducted Disturbance Immunity EN61000-4-6, level 2
Shock Wave Resistance EN61000-4-12, level 2
Power Frequency Magnetic Field Resistance EN61000-4- -8, horizontal Ivertical 400A/m (>level 2)
PHYSICAL SPECS
Shockproof IEC60068-2-27
Vibration Resistance IEC60068-2-6
Free Fall IEC60068-2-32
CERTIFICATE
CE, FCC, PTCRB, IC, Verizon, AT&T

INROUTER302 SOFTWARE SPECIFICATIONS
NETWORK CONNECTION
Network Access APN, VPDN, PrivateNetwork
Access Authentication CHAP/PAP
LAN Protocol ARP
WAN Protocol PPP, PPPoE, DHCP
Network Type GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/ FDD LTE (Please refer to the Ordering Guide for frequencies.)
NETWORK PROTOCOL
IP Application Ping, Route Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet, SSH
IP Routing Static routing, Dynamic routing
NAT Supports network address
SECURITY
Network Security Stateful Packet Inspection (SPI), DoS attack defense; Multicast filter/Ping probe packet, Access Control List ACL); Content URL filter, port mapping, virtual IP mapping, IP/MAC binding
Data Security Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2), OpenVPN protocols Supports CA digital certificate
NETWORK CONNECTION
Reliability VRRP hot backup
Link detection Sends heartbeat packets to detect, auto redials when disconnected
Dual SIM Failover Device runs self - detection, auto recovers from malfunctions
WLAN (OPTIONAL)
Protocol IEEE 802.11b/g/n
Rate Up to 150Mbps
Mode AP, STA and WDS modes
Security Open system, shared key, WPA/WPA2 certification WEP/TKIP/AES encryption
Transmission Distance 100 meters by line of sight (Actual transmission distance depends on environment of the site.)
NETWORK MANAGEMENT
QoS Management Bandwidth limit,IP speed limit
Configuration Telnet, web, ssh, and console
Upgrade Method Web, Device Manager
Logs Local system logs, remote logs, and serial export of logs. Power down saving of important logs.
SMS Functions Status query, configuration, restart
Dial-on-demand Dial-on-demand, data / SMS activation
Network Management Supports InHand DeviceManager, batch management
SNMP SNMP v1/v2c/v3҅support SNMP TRAP
Traffic Management Supports data traffic threshold, traffic statistics and traffic alarm
Alarms System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc.
Maintenance Tools Ping, route tracking, network speed test
Status Query System status, modem status, network connection status, and routing status
