The Heli-21 Wifi (Uni-directional) BT151557

The Heli-21 Wifi (Uni-directional)

Availablity: Out of Stock
  • Circular Polarised HELI antenna provides enhanced signal propagation ad connection stability within a tunnel
  • Left Hand Circular (LHC) & Right-Hand Circular (RHC) polarised
  • Uni-directional – radiates in one direction in a tunnel
  • Ruggedized, water and dust ingress protected (IP 65)
  • Ideal for Mining & Tunnel M2M and IoT deployment
Our expert team is available at 011 749 3085 to provide you with personalised recommendations and hassle-free installation advice!

Circular Polarised, Directional Mine/Tunnel Antenna

The Heli-21 Wifi offers medium to high gain, which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes.

The Heli-21 Wifi is a dual-band 2.4 GHz and 5 GHz Wi-Fi antenna, radiating in one direction (i.e. uni-directional). This makes them ideal for the coverage of both Wi-Fi bands in mining and other type of tunnels.

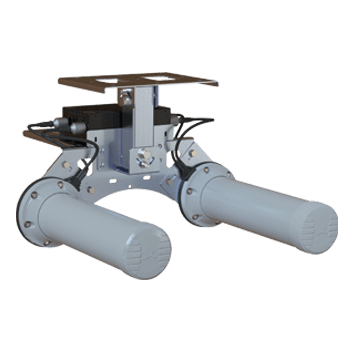

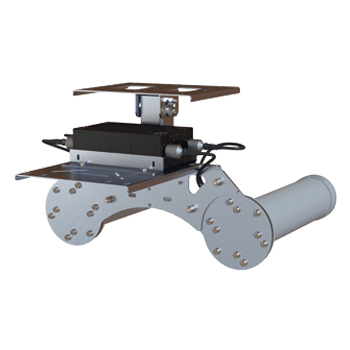

These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mine automation. These antennas are available in both Left-hand Circular (LHC) & Right-Hand Circular (RHC) polarised antenna elements to provide optimal decorrelation within a MIMO deployment when using the BRKT-45, resulting in optimum performance. The decorrelation is due to the polarisation difference and spatial diversity, between the two antenna elements, which enhances MIMO performance and RF reliability within a mining tunnel.

The dual-band Wi-Fi connection propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many Wi-Fi signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.

Circular Polarised, Directional Mine/Tunnel Antenna

The Heli-21 Wifi offers medium to high gain, which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes.

The Heli-21 Wifi is a dual-band 2.4 GHz and 5 GHz Wi-Fi antenna, radiating in one direction (i.e. uni-directional). This makes them ideal for the coverage of both Wi-Fi bands in mining and other type of tunnels.

These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mine automation. These antennas are available in both Left-hand Circular (LHC) & Right-Hand Circular (RHC) polarised antenna elements to provide optimal decorrelation within a MIMO deployment when using the BRKT-45, resulting in optimum performance. The decorrelation is due to the polarisation difference and spatial diversity, between the two antenna elements, which enhances MIMO performance and RF reliability within a mining tunnel.

The dual-band Wi-Fi connection propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many Wi-Fi signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.

The Heli-21 WiFi Antenna Frequencies & Gains

2400 - 2500 MHz 12 dBi
5000 - 6000 MHz 13 dBi



Impedance 50 Ohm
Polarization Circular (LHC and RHC)
VSWR <1.5:1 over 90% of the band
Connectors N-Male
Input Power MAX
30 watt
Water Resistance IP 65
Radome Material ABS & PVC
Dimensions 526 mm x 415 mm x 266 mm
Weight 3.9 kg
