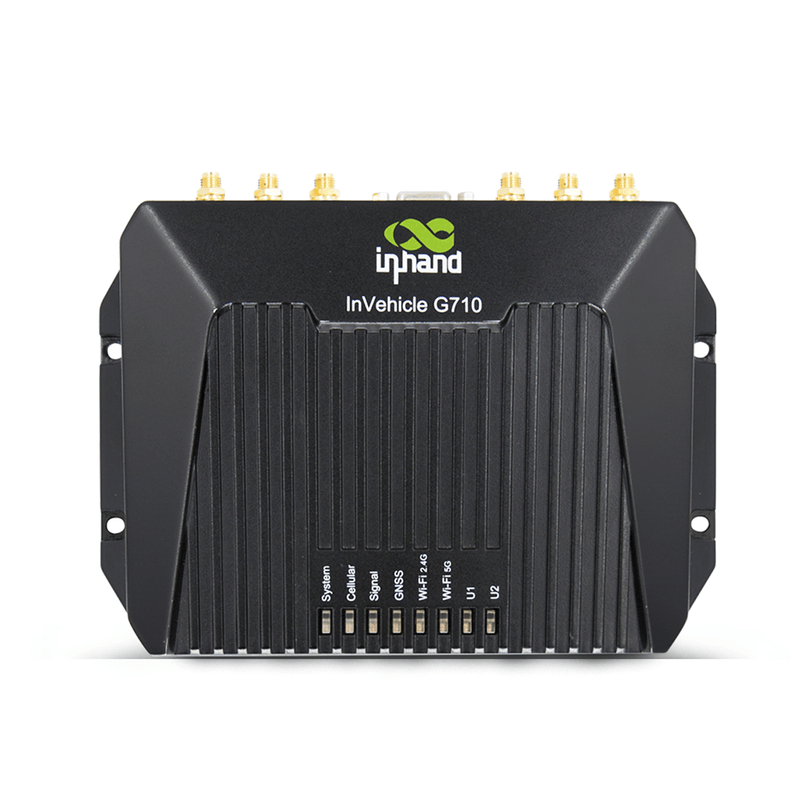

InVehicle G710 Gateway

InVehicle G710 Gateway

Availablity: Out of Stock
  • Compatible with all vehicle types
  • High-Speed LTE Cat 6 Connectivity
  • 2.4GHz/5GHz Gigabit WiFi and Ethernet
  • Remote Device Management, Tracking, and More
  • Works with all network Sim cards (Vodacom, MTN, Cell C and Telkom)
Thank you for contacting us! We will be in touch soon.

High-speed Vehicle Networking with Multiple Interfaces

With vehicle grade hardware, the VG710 offers high-speed vehicle networking, LTE CAT6 high-speed WAN and Gigabit Ethernet, providing vehicles, devices and passengers with fast, reliable and secure Internet connectivity.

Real-time Monitoring of Vehicle Status
Uninterrupted High-accuracy Vehicle Location
Open, Easy-to-use Development Platform for Custom Applications
Most popular commercial booster
Major IoT Cloud Services Supported

With vehicle grade hardware, the VG710 offers high-speed vehicle networking, LTE CAT6 high-speed WAN and Gigabit Ethernet, providing vehicles, devices and passengers with fast, reliable and secure Internet connectivity.

Featuring extensive interfaces such as cellular, Ethernet, Wi-Fi, CAN, I/O, serial ports, Bluetooth and GNSS, the VG710 delivers appropriate connectivity solutions and enables efficient retrofit on existing vehicles.

Integrating OBD-II and J1939, the VG710 enables real-time vehicle diagnostics. The embedded GNSS offers uninterrupted precise positioning, with remote analysis software monitoring dangerous driving behavior, thus ensuring driving safety.

VG710 Vehicle Gateway

Who is This For?

The 72-channel high-accuracy and high-sensitivity GNSS positioning system, which includes GPS, GLONASS, Galileo and Beidou, is ideal for global deployment, delivering real-time location information of vehicles. The inertial navigation system offers excellent positioning precision when GNSS signal is unavailable.

Powerful edge computing capabilities facilitate the development of custom applications. The remote fleet management platform is easy for secondary development by third-party software developers. With an open cloud ecosystem that supports Microsoft Azure and AWS, the VG710 offers more options for application developers. It supports Node-RED low code edge computing solutions.



High-speed Vehicle Networking with Multiple Interfaces

With vehicle grade hardware, the VG710 offers high-speed vehicle networking, LTE CAT6 high-speed WAN and Gigabit Ethernet, providing vehicles, devices and passengers with fast, reliable and secure Internet connectivity.

Real-time Monitoring of Vehicle Status
Uninterrupted High-accuracy Vehicle Location
Open, Easy-to-use Development Platform for Custom Applications
Most popular commercial booster
Major IoT Cloud Services Supported

With vehicle grade hardware, the VG710 offers high-speed vehicle networking, LTE CAT6 high-speed WAN and Gigabit Ethernet, providing vehicles, devices and passengers with fast, reliable and secure Internet connectivity.

Featuring extensive interfaces such as cellular, Ethernet, Wi-Fi, CAN, I/O, serial ports, Bluetooth and GNSS, the VG710 delivers appropriate connectivity solutions and enables efficient retrofit on existing vehicles.

Integrating OBD-II and J1939, the VG710 enables real-time vehicle diagnostics. The embedded GNSS offers uninterrupted precise positioning, with remote analysis software monitoring dangerous driving behavior, thus ensuring driving safety.

VG710 Vehicle Gateway

Who is This For?

The 72-channel high-accuracy and high-sensitivity GNSS positioning system, which includes GPS, GLONASS, Galileo and Beidou, is ideal for global deployment, delivering real-time location information of vehicles. The inertial navigation system offers excellent positioning precision when GNSS signal is unavailable.

Powerful edge computing capabilities facilitate the development of custom applications. The remote fleet management platform is easy for secondary development by third-party software developers. With an open cloud ecosystem that supports Microsoft Azure and AWS, the VG710 offers more options for application developers. It supports Node-RED low code edge computing solutions.



G710 InVehicle Router
G710 Router
Antenna
Wifi Antenna
Antenna
Cell Antenna
Cables
Power Cable

how a signal booster works bolton technical



Features and Advantages

  • Designed for vehicles
  • Global satellite positioning
  • Inertial navigation
  • Driving behavior monitoring
  • Vehicle diagnostics collection
  • Rich vehicle-mounted I/O
  • Edge computing
  • Fleet management platform
  • Developer features
  • Supports 4G LTE CAT6

G710 Specifications

InVehicle G710 Software Specifications
Item InVehicle G710
Network Connection
Network Access                     APN, VPDN
Access Authentication
CHAP/PAP/MS-CHAP/MS-CHAP V2
LAN Protocol                     ARP, Ethernet
Network Protocols
IP Applications                     IPv6, Ping, Traceroute, DHCP server/relay/client, DNS relay, DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, Portal
IP Routing                     Static routing, RIP, OSPF, BGP, IGMP Proxy
Network Security
Firewall

SPI, DoS attack defense, multicast/Ping probe filter, ACLs

Supports NAT, PAT, DMZ, port mapping, virtual server

User Level                     2 levels: administrator; read-only user
AAA Local authentication, Radius, Tacacs+, LDAP
CA Certificate                     PEM, PKCS12, SCEP
VPN                     IPsec VPN, L2TP, PPTP, GRE, OPENVPN, CA
Reliability
Backup                     Floating routing, VRRP, interface backup
Link Detection                     Sends heartbeat packet to detect, auto redial when disconnected
Watchdog                     Runs self-detection and auto-repairing of device faults
Offline Storage                     Built-in cache, records key data when network unavailable
Ports
VLAN Partition                     Supported
Port Mirroring                     Supported
WLAN
Protocol                     IEEE 802.11 ac/a/b/g/n
Security                     Shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption
Network Management
Configuration                     Local or remote HTTP, HTTPS, Telnet, SSH
Upgrade                     Local or remote WEB, DM, TFTP, FTP, SFTP server
AAA                     Local/Radius/TACACS+
Network Diagnostic                     Ping, Traceroute, Sniffer (network packet capturing tool)
Edge Computing Framework
Edge Computing Platform An edge computing platform integrating network, computing, storage and applications
Edge Computing Engine
Python & Docker
SDK
Python 3 SDK, Docker SDK and Azure IoT Edge SDK
IDE
Visual Studio Code
IoT Architecture                     Supports MQTT, DDS, AMQP, XMPP, JMS, REST, CoAP
3rd Party Cloud MS Azure, SmartFleet and development APIs for other third-party platforms
Docker Images
Node-RED, Ubuntu, Docker for ARM 32, etc.
Application Services
Fleet Management Cloud                     InHand Smartfleet cloud platform: task allocation, route planning, vehicle tracking, real-time messaging, geofencing, batch firmware upgrade, batch configuration backup, application upgrade
Vehicle Telemetry                     Rich interfaces for vehicle telemetry and asset tracking devices
Event Alarm                     Customizable event alarms: digital input, network, service status, power supply, temperature, voltage, etc.
Message Push                     SMS, Email, App, device digital output

InVehicle G710 Hardware Specifications
Item InVehicle G710
Hardware Platform
CPU
ARM Cortex A7
RAM                     1GB/512MB DDR3
FLASH 8GB  eMMC
Main Frequency 717MHz
Satellite Navigation
GNSS Receiver GPS, GLONASS, Galileo, Beidou
Built-in Sensor Inertial navigation sensor (accelerometer and gyroscope)
Position Deviation 1.5m (With SBAS),2.5m (Autonomous)
Tracking Sensitivity -160dBm
Location Update Rate MAX 10Hz
Interface
Cellular                     LTE CAT6/ CAT4
Ethernet                     4*10/100/1000Mbps RJ45 interface
Serial Port                     RS232 serial (DB-9)
USB Port                     USB2.0 ,Micro-B (Read-write: MAX 480Mbps)
MircoSD                     Micro SD Card (up to 32GB, 20MB/s)
Bluetooth                     Bluetooth 4.1

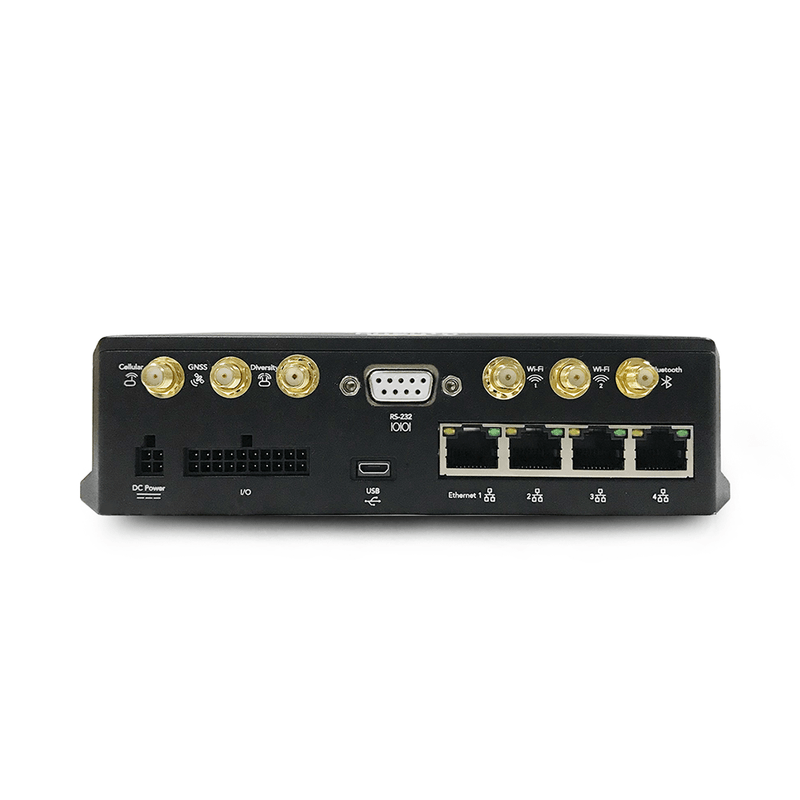

Antenna                     SMA-K: Cellular, GNSS, Diversity; RPSMA-K: 2*Wi-Fi, Bluetooth

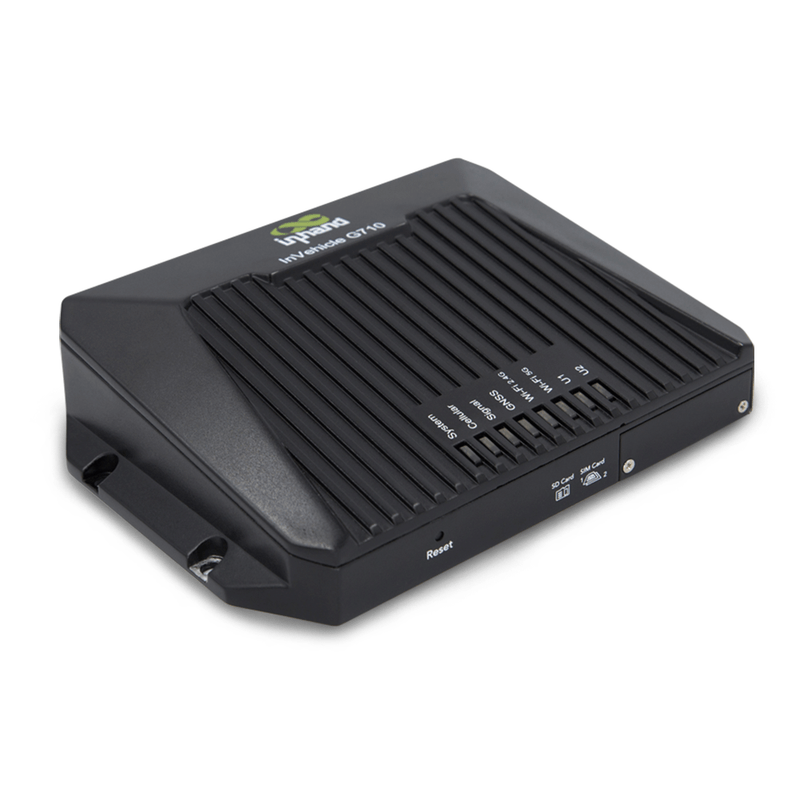

Indicator                     System, LTE, Signal, GNSS, Wi-Fi 2.4G, Wi-Fi 5G, U1, U2
Wi-Fi
Frequency                     2.4G / 5GHz dual-band
Protocol                     Wi-Fi 5
Maximum Output                     2.4g:17dBm  5g:17dBm
Working Mode                     AP /Client
Automotive Interface
DI                     6*digital input
6 channels multiplexing, configurable

AI                     6*analog input                     6 channels multiplexing, configurable
DO                     4*digital output
Diagnostic Interface   CanBus
RS485                     RS485 serial (A+, B-, GND)
Other                     1 WIRE (driver ID/temperature sense)
Power Supply
Pin Definition                     V+, V-, ignition signal, NC (4 pins)
Input Voltage                     9-36VDC [configurable to 7-36VDC]
Protection                     Built-in voltage transient protection, with delayed ignition induction
Standby Power                     0.006W - monitors ignition signal only; system starts on ignition
Operating Power                     12.00W - average when RF module not running at full load
Peak Power                     18.20W - peak value when RF module running at full load
Mechanical
Installation                     Wall-mounting
Protection Rating                     IP64

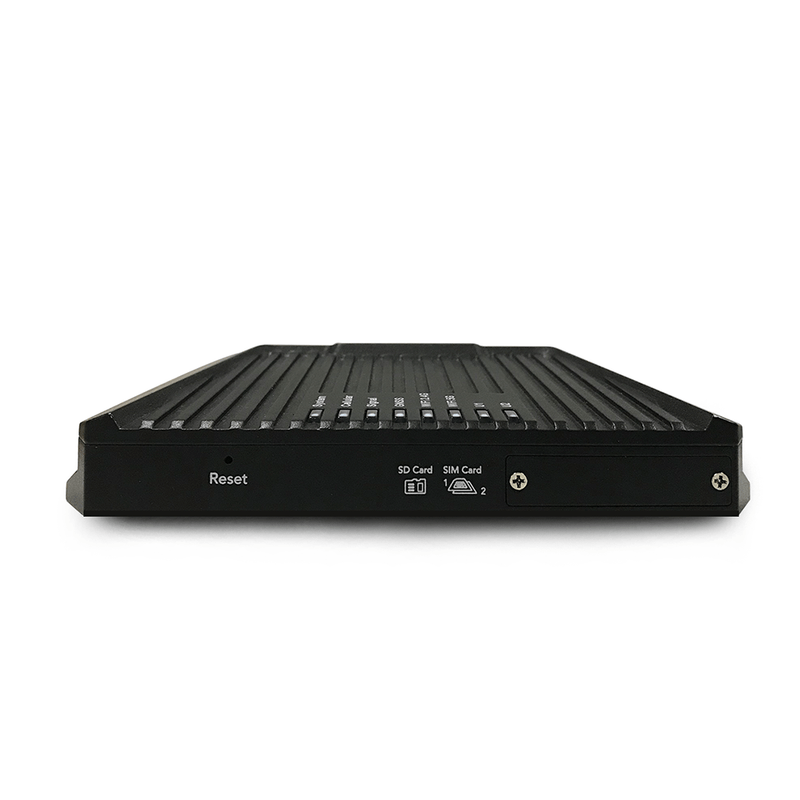

SIM Card Slot Dual SIM
SIM Card Spec                   2FF
Cooling                     Radiation cooling
Housing                     Die-cast aluminum
Dimensions (mm)     186x128.5x48
Real-time Clock        Supported
Weight 775g
Environment
Operating Temperature          -30°C ~ +70°C
-22°F ~ +158°F
Humidity                     95%RH @ 60°C
Storage Temperature -40°C ~ +85°C / -40°F ~ +185°F
Vehicle
EMC                     Level 3 (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-18)
Rail Standard EN50155, EN50121, EN61373, EN45545
Physical
Shock                     IEC60068-2-27
Vibration                     IEC60068-2-6
Fall                     IEC60068-2-32
Certification                     CE, FCC, IC, PTCRB, AT&T, E-Mark, RoHS




-
