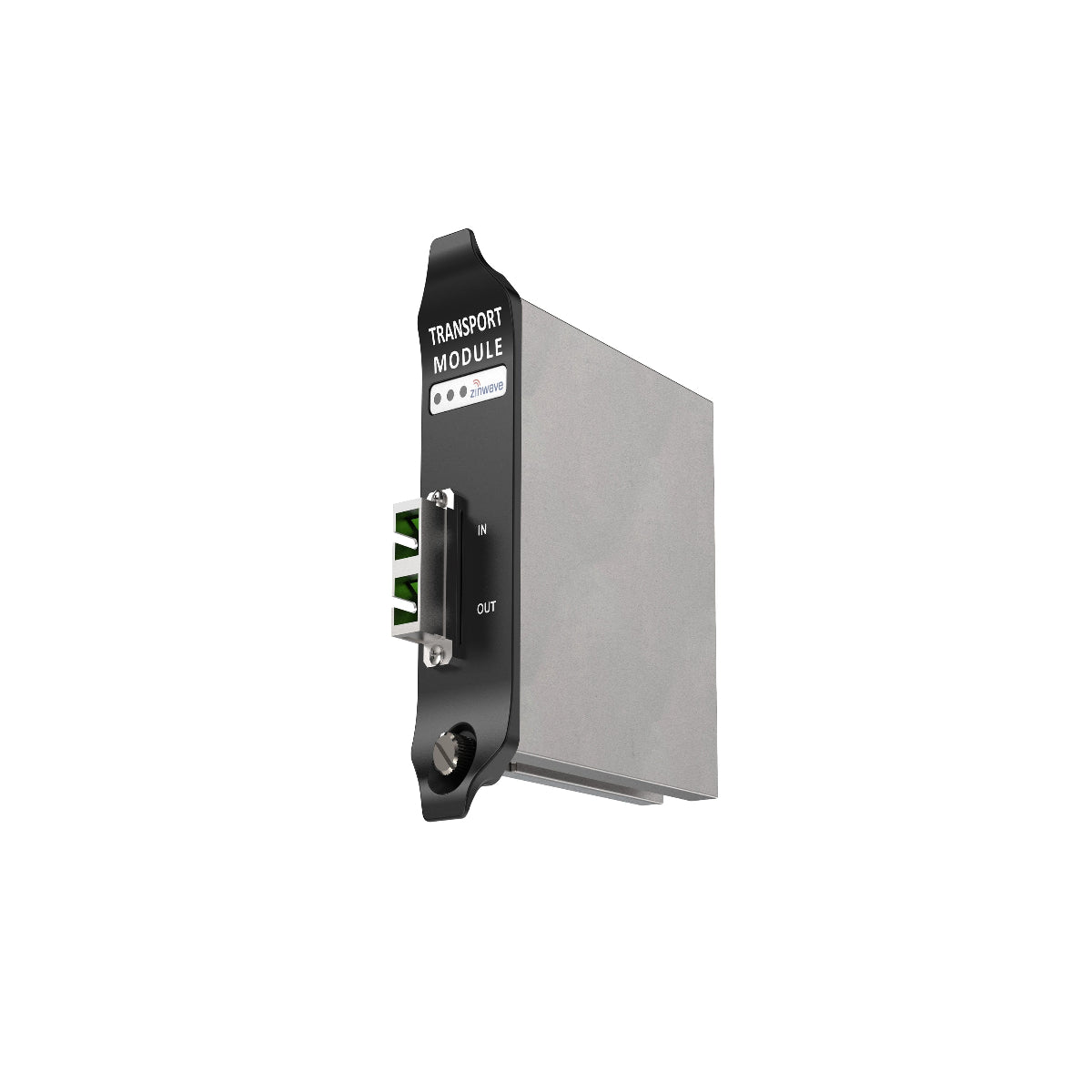

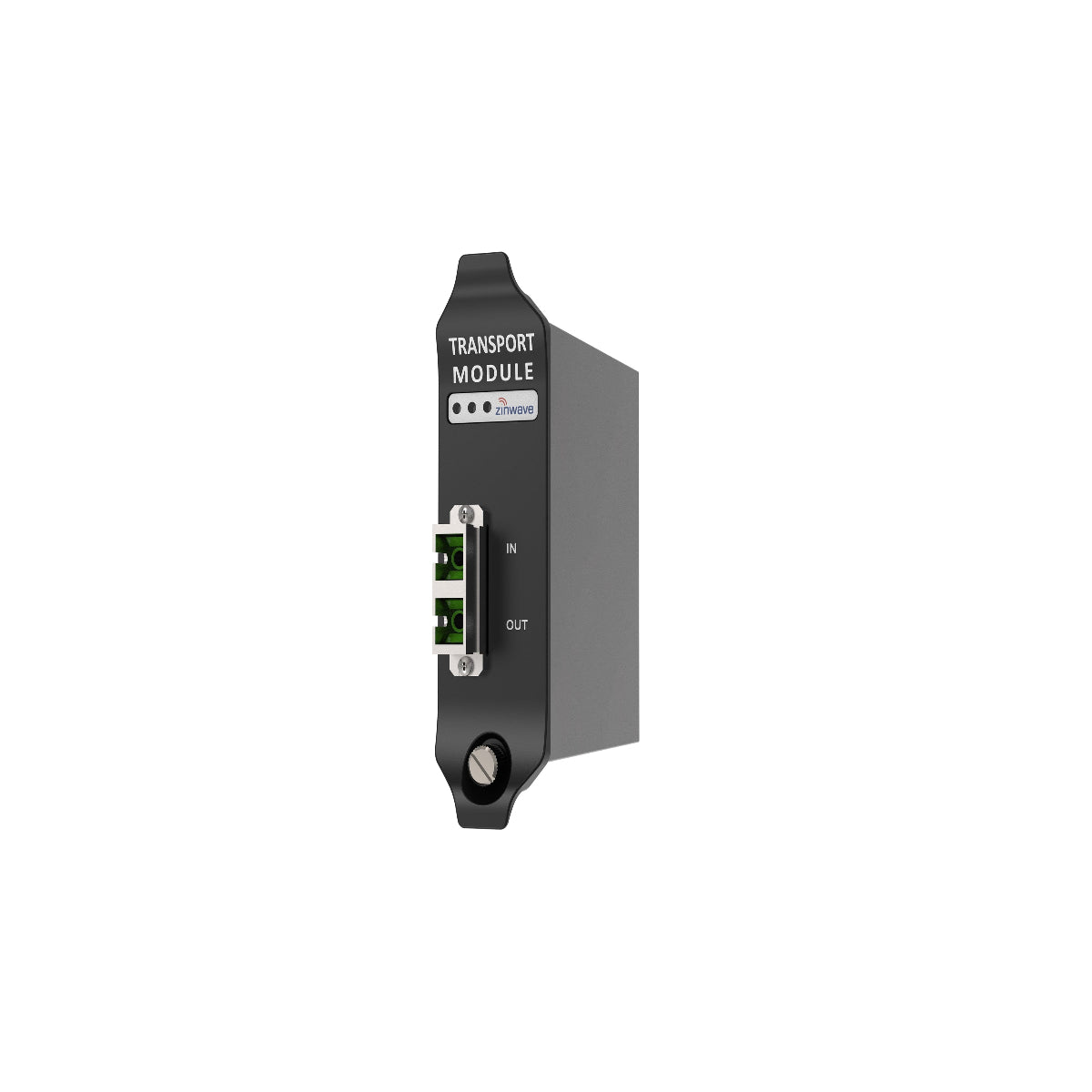

Uniwave 8000 Transport Module Right Angled

Uniwave 8000 Transport Module Right Angled Side

Low stock

308-0005

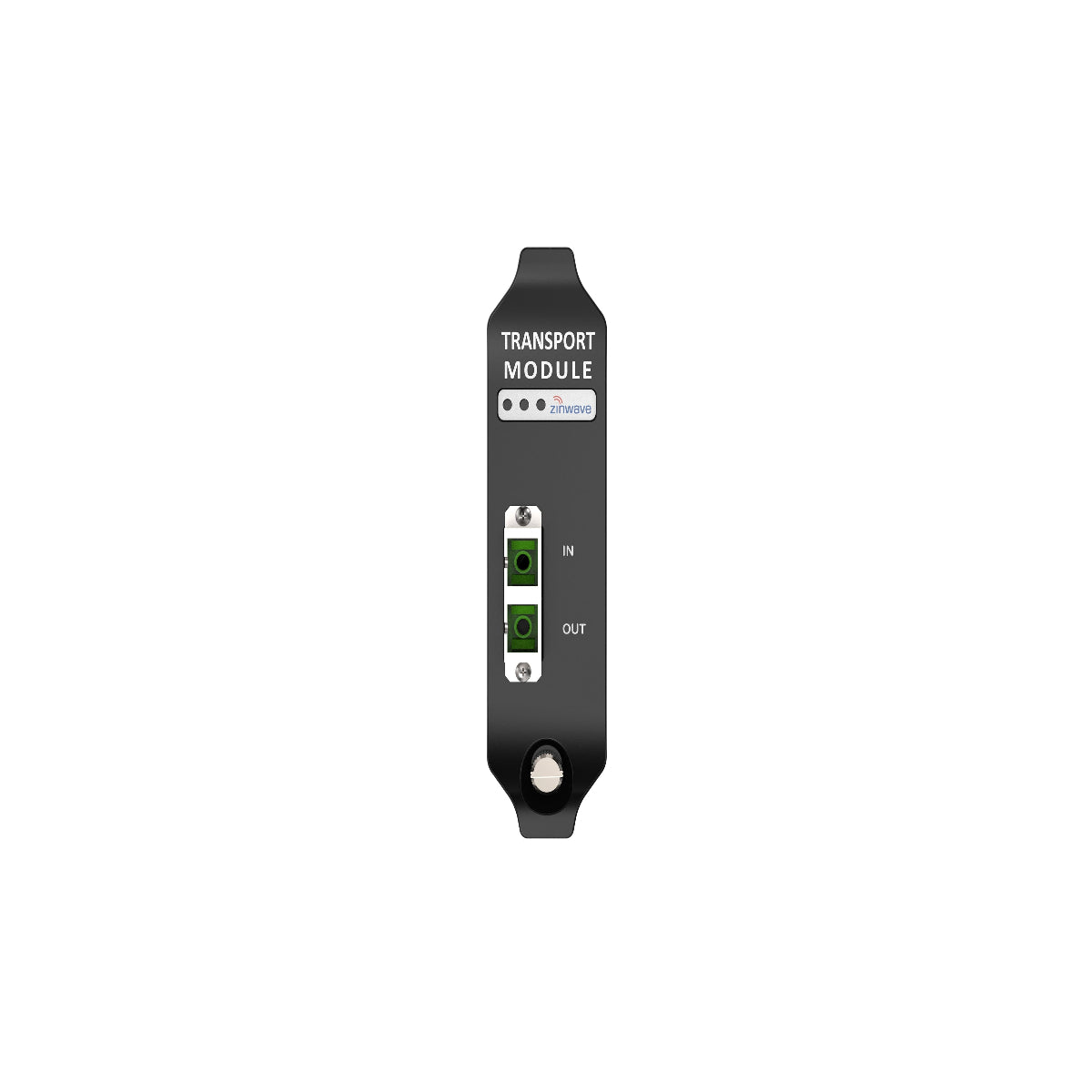

Zinwave Uniwave 8000 Transport Module

Name: Zinwave Uniwave 8000 Transport Module
Brand: Bolton Technical South Africa
SKU: 308-0005
Availability: InStock

R 0.00

Tax included.

Quantity

Product variants

Key Features

Seamless high-speed data transmission
Reliable, robust performance
Scalable for evolving networks
Optimized efficiency and compatibility
Streamlined installation and maintenance

Technical Specifications

SKU: 308-0005

MAXIMUM NUMBER PER PRIMARY HUB: 8

OPTICAL LOSS PER LINK: UP TO 5 dB

PLACEMENT: PRIMARY HUB TO SECONDARY HUB OR PRIMARY HUB TO REMOTE

OPTICAL TRANSMIT POWER: 4.5 mW (MIN) TO -10 mW (MAX) AUTO-CONFIGURED BY SOFTWARE

OPTICAL RECEIVE POWER: 10 mW (MAX)

RETURN LOSS: BETTER THAN 45 dB FOR ALL FIBRE CONNECTIONS IN THE SYSTEM

CONNECTIVITY: SC/APC DUPLEXSC/APC CONNECTIONS REQUIRED FOR OPTIMUM PERFORMANCE

DIMENSIONS: W/D/H (mm)1.2” (31) x 4.6” (117) x 4.6” (116)

WEIGHT: 0.28 Kg UNPACKED

Coverage And Results

The Zinwave Uniwave 8000 Transport Module enables seamless high-speed fibre-optic connections between Primary Hubs, effectively extending network reach across large-scale DAS deployments. Designed for scalable infrastructure, you can install up to 8 modules at the front or 4 at the rear of a Primary Hub - ideal for linking multiple hubs in cascaded configurations without relying on coax. The module supports up to 5 dBo optical loss per link, uses auto-configured optical transmit power ranging from 4.5 mW to −10 mW, and achieves >45 dB return loss, ensuring minimal signal degradation. Its hot-swappable design allows for live maintenance without service interruption, maintaining full-band coverage (150 MHz–5 GHz) and robust performance across your campus or facility.

Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Zinwave Uniwave 8000 Transport Module

Uniwave 8000 Transport Module: High-Performance Fibre Transport Link

The Zinwave Uniwave 8000 Transport Module is designed to create a seamless fibre transport link within your cellular network. By inserting a Transport Module in the front of the centralized Hub chassis and in the rear of the remote Hub chassis, you can effortlessly establish a high-performance connection.

Key Features:

Efficient Fibre Transport: Connect two cascaded Primary Hubs via a robust fiber link, eliminating the need for coaxial cables.
Flexible Configuration: Up to eight Transport Modules can be installed in the front of the Primary Hub chassis, enabling connection to up to eight separate remote locations.
Optimized Setup: For each fiber link setup, a pair of Transport Modules is required. One module attaches to the front of the main Primary Hub (designated as the UniTransport Hub, while the other attaches to the back of the secondary Primary Hub.
Scalable Deployment: Install up to 8 Transport Modules in the front of a Primary Hub or up to 4 in the rear. Note that Transport Modules cannot be deployed simultaneously in the front and rear of the same Primary Hub.
Centralized Management: Facilitates efficient management and expansion of your network by providing centralized fiber transport.

Applications:

Ideal for creating high-performance, fiber-linked cellular networks in large facilities.
Suitable for environments requiring robust, scalable signal distribution without the complexity of coaxial cabling.

Approvals & Listings:

Africa: ICASA approved
Europe: CE Marked for compliance with European Union regulations.
USA: FCC certified for meeting Federal Communications Commission standards.
Canada: Industry Canada (IC) approved.
Safety Standards: Complies with IEC 60950-1 and EN 60950 safety standards.

These approvals and listings ensure that the Zinwave Uniwave 8000 Transport Module meets regulatory requirements and safety standards in key markets, providing assurance of quality and adherence to industry regulations.

Unit Specifications

SKU	308-0005
MAXIMUM NUMBER PER PRIMARY HUB	8
OPTICAL LOSS PER LINK	UP TO 5 dB
PLACEMENT	PRIMARY HUB TO SECONDARY HUB OR PRIMARY HUB TO REMOTE
OPTICAL TRANSMIT POWER	4.5 mW (MIN) TO -10 mW (MAX) AUTO-CONFIGURED BY SOFTWARE
NOTES	AUTO-CONFIGURED BY SOFTWARE
OPTICAL RECEIVE POWER	10 mW (MAX)
RETURN LOSS	BETTER THAN 45 dB
CONNECTIVITY	SC/APC DUPLEX
NOTES	SC/APC CONNECTIONS REQUIRED FOR OPTIMUM PERFORMANCE
DIMENSIONS W/D/H (mm)	1.2” (31) x 4.6” (117) x 4.6” (116)
WEIGHT	0.28 Kg (Unpacked)

Download Spec Sheet

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R60
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R90
Bulky Items (15kg+)	R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R90
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R150
Bulky Items (15kg+)	R350

Regional Delivery

Weight	Rate (ZAR)
0–2kg	R120
2–5kg	R150
5–10kg	R220
15kg+	R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

Items must be unmodified, in original condition, and include all accessories.
Original packaging and proof of purchase are required.
Returns that are not in original condition and packaging may be subject to a handling fee.
The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
Products purchased on promotion or clearance can only be returned within 5 days of receipt.
Express shipping fees are non-refundable.

Product FAQ

1 What is the function of the Uniwave 8000 Transport Module?

It creates a fibre-optic “Un iTransport” link between two Primary Hubs, enabling RF services to be distributed seamlessly without needing coaxial cables.

2 How many Transport Modules can I install per hub?

You can install up to 8 modules at the front of a Primary Hub or 4 at the rear, but not both simultaneously.

3 What is the maximum optical loss the module supports?

Each link tolerates up to 5 dB optical loss, sufficient for long fibre runs in most buildings.

4 What optical transmit power range does it support?

Auto-adjusted transmit power ranges from 4.5 mW (min) to −10 mW (max) to maintain optimal signal strength.

5 Is the Uniwave 8000 Transport Module hot-swappable?

Yes, modules can be added or replaced live, without disrupting coverage - ideal for upgrades or maintenance.
