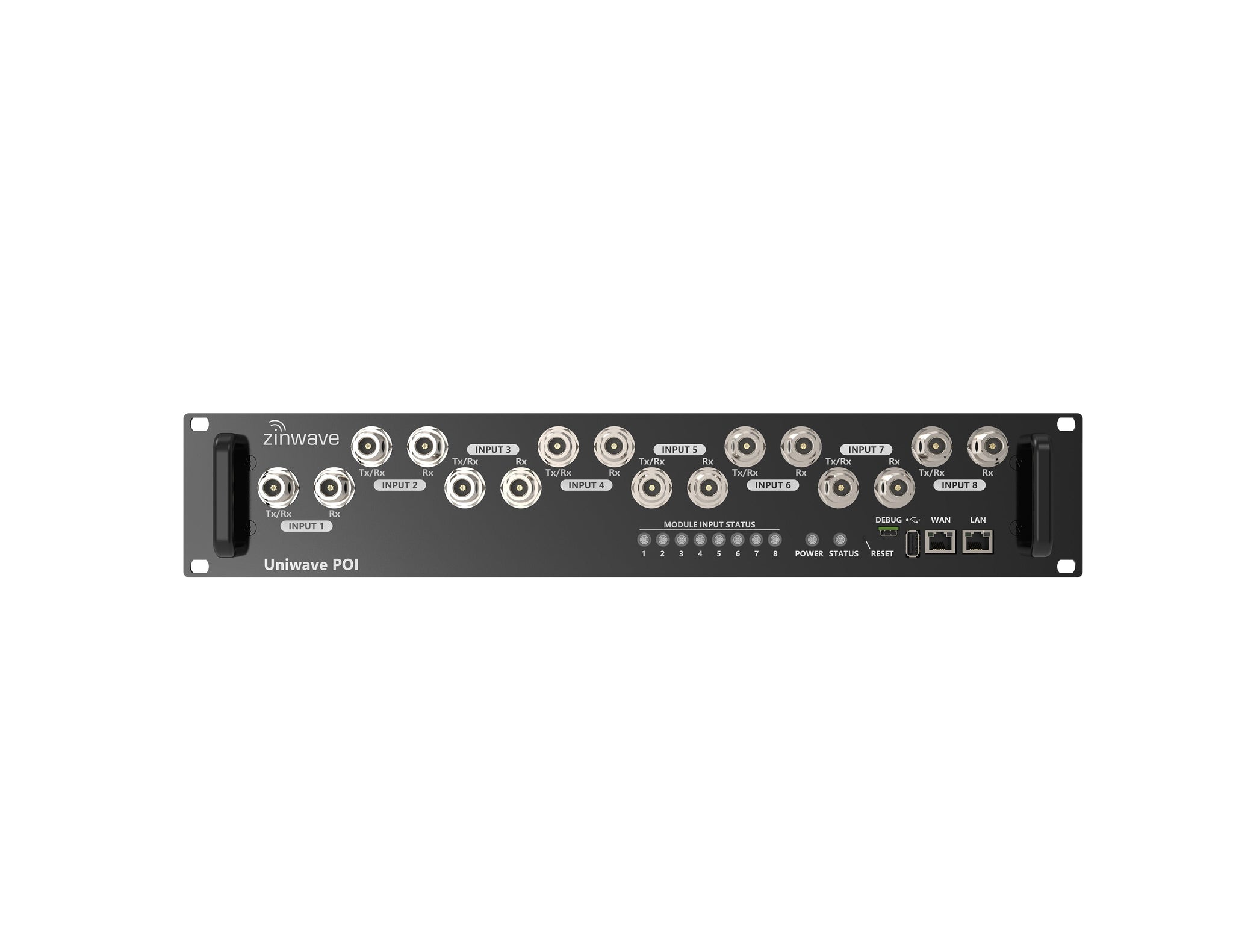

Zinwave Uniwave 8000 POI Front

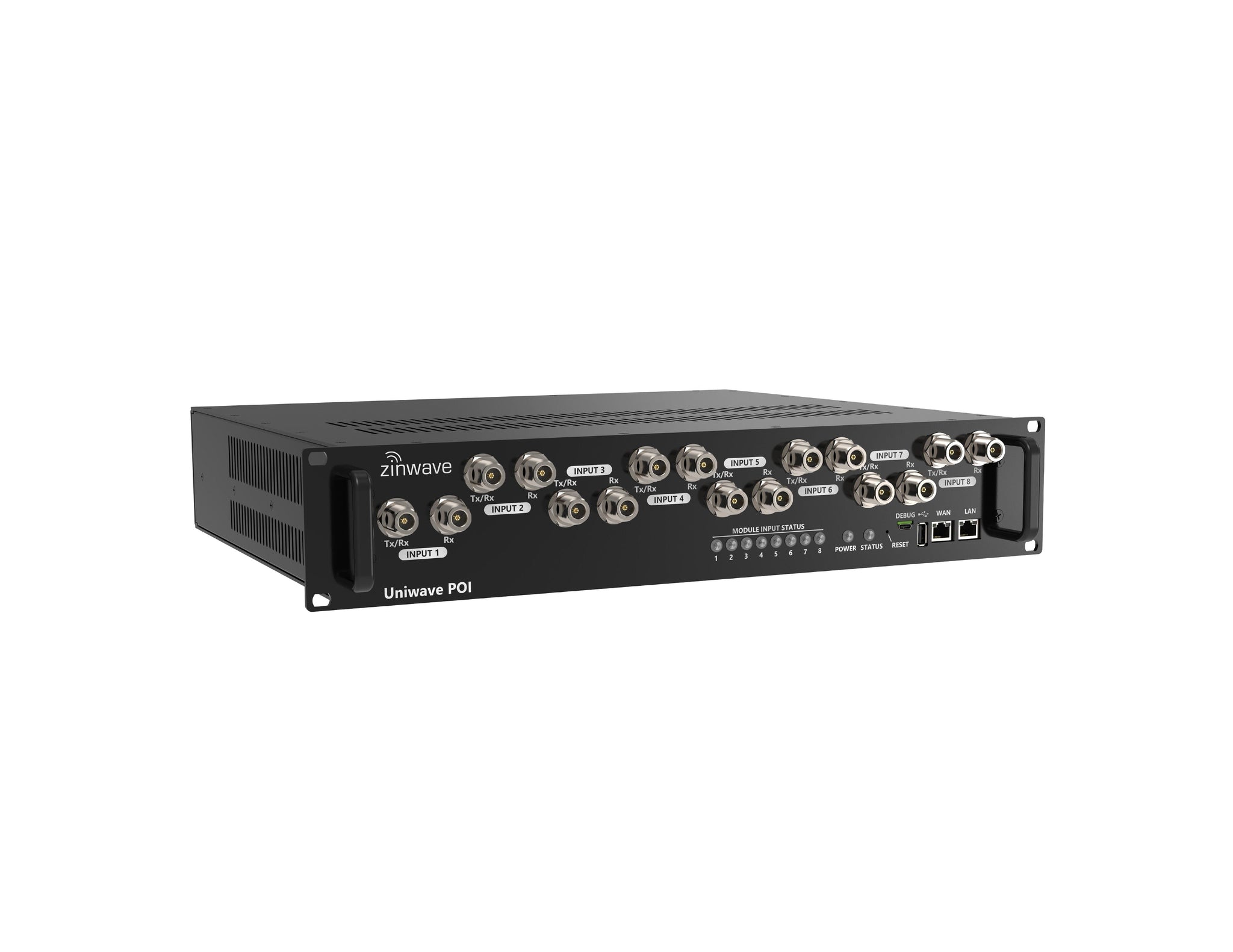

Zinwave Uniwave 8000 POI Left Angle
Zinwave Uniwave 8000 POI Right Angle
Zinwave Uniwave 8000 POI Back
Zinwave Uniwave 8000 POI Front
Zinwave Uniwave 8000 POI Left Angle
Zinwave Uniwave 8000 POI Right Angle
Zinwave Uniwave 8000 POI Back
Low stock
304-0003

Zinwave Uniwave 8000 Point of Interface (POI)

R 0.00
Tax included.
Key Features
  • Supports Up to 8 BTSs
  • Wideband, 600 MHz to 5GHz
  • 8 Duplex Input Ports and 8 Simplex Input Ports, N-Type
  • 8 Duplex Input Ports and 8 Simplex Input Ports, N-Type
  • Ethernet Connectivity
Technical Specifications

SKU: 304-0003

POWER CONNECTIVITY: 110-240VAC, 50-60HzRF

CONNECTIVITY: N Type Connectors

SIZE: 2 RU - 19” Rack Mount

ELECTRICAL: DEPENDING ON CONFIGURATION20W

OPERATING TEMP: AMBIENT NON-CONDENSING2 RU - 19” Rack Mount

System Connections

RF Frequency Range: 600 -5000MHz

Fixed Insertion Loss: DL/UL Variable Insertion Loss: DL/UL22.5 + 1.6 X FGHz 0 - 30dB

Attenuation Accuracy: +/-2 dB

Input Third-Order Intercept: (IIP3)+70dBm

Maximum Input Power per Port: + 37dBm
Coverage And Results

The Zinwave Uniwave 8000 Point of Interface (POI) plays a pivotal role in large-scale in‑building Active DAS deployments. It seamlessly interconnects up to eight Base Transceiver Stations (BTSs) over an ultra-wide 600–5000 MHz frequency range, enabling comprehensive support for 4G/5G, public safety, and private radio systems.
Featuring 8 duplex and 8 simplex N‑Type RF ports each capable of handling up to +37 dBm input power, the POI ensures robust signal handling while its remote-adjustable attenuation controls, Ethernet/Bluetooth connectivity, and low passive intermodulation (<‑153 dBc) provide precise signal tuning, monitoring, and interference suppression. Rack-mountable in just 2U, it condenses high-performance conditioning into a compact module—resulting in efficient RF signal distribution, fewer dead zones, and scalable capacity suitable for campuses, commercial complexes, and public facilities.

This is a commercial-grade product needing EXPERT ADVICE from professionals.

  • Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Zinwave Uniwave 8000 Point of Interface (POI)

Uniwave 8000 Point of Interface (POI):

Enhance Your Active DAS Setup with Precision Signal Conditioning

The Zinwave Uniwave 8000 Point of Interface (POI) is a vital component in optimizing the performance of your Distributed Antenna System (DAS). Designed to interconnect up to 8 Base Transceiver Stations (BTSs) to the Service Module installed in the Primary Hub, the POI ensures seamless signal distribution across your network.

Key Features:

  • Wide-Band Interfacing: Unique design accommodates frequencies from 600 MHz to 5000 MHz, covering a broad spectrum of wireless signals.
  • Ample Input Ports: Equipped with 8 duplex input ports and 8 simplex input ports, providing flexibility and scalability for expanding network capacity.
  • Dual DL and UL Ports: Each POI includes 2 Downlink (DL) and 2 Uplink (UL) ports for connection to the Primary Hub, allowing for efficient signal transmission and reception.
  • High Power Handling: With a maximum input power of 37 dBm per port, the POI ensures robust signal handling and distribution.
  • Compact Design: Occupying only 2U of rack space, the POI offers a small form factor without compromising performance.
  • Advanced Cooling: Utilizes convection cooling to maintain optimal operating temperatures, ensuring reliability in demanding environments.
  • Low PIM Performance: Achieves impressive -153dBc PIM (Passive Intermodulation) specification, minimizing interference and preserving signal integrity.
  • Remote Attenuation Control: Easily adjustable attenuation settings allow for precise control over signal levels, optimizing network performance.
  • RF Detection and Measurement: Built-in capabilities for RF detection and measurement enable comprehensive monitoring and troubleshooting.
  • Connectivity Options: Features Bluetooth and Ethernet connectivity for seamless integration into your network infrastructure.

Upgrade your Active DAS setup with the Zinwave Uniwave 8000 Point of Interface (POI) and experience unparalleled signal conditioning and distribution for enhanced wireless connectivity.

The Zinwave Uniwave 8000 Point of Interface (POI) is ideal for telecom providers, building managers, enterprises, public safety agencies, and hospitality/retail sectors seeking to enhance wireless coverage and connectivity.

Approvals & Listings:

  • Africa: ICASA approved
  • Europe: CE Marked for compliance with European Union regulations.
  • USA: FCC certified for meeting Federal Communications Commission standards.
  • Canada: Industry Canada (IC) approved.
  • Safety Standards: Complies with IEC 60950-1 and EN 60950 safety standards.

These approvals and listings ensure that the Zinwave Uniwave 8000 Point of Interface (POI) meets regulatory requirements and safety standards in key markets, providing assurance of quality and adherence to industry regulations.

Unit Specifications

SKU 304-0003
Power Connectivity 110-240VAC, 50-60Hz
RF Connectivity N Type Connectors
Size 2 RU - 19” Rack Mount
Electrical (Depending on Configuration) 20W
Operating Temp (Ambient, Non-Condensing) 2 RU - 19” Rack Mount

System Connections

Typical Unit
RF Frequency Range 600 - 5000 MHz
Fixed / Variable Insertion Loss DL/UL 22.5 + 1.6 x FGHz / 0 - 30 dB
Attenuation Accuracy +/-2 dB
Input Third-Order Intercept (IIP3) +70 dBm
Max Input Power per Port +37 dBm

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R60
R750 or less (2–5kg)R90
R750 or less (5–10kg)R90
Bulky Items (15kg+)R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R90
R750 or less (2–5kg)R90
R750 or less (5–10kg)R150
Bulky Items (15kg+)R350

Regional Delivery

WeightRate (ZAR)
0–2kgR120
2–5kgR150
5–10kgR220
15kg+R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

  • Items must be unmodified, in original condition, and include all accessories.
  • Original packaging and proof of purchase are required.
  • Returns that are not in original condition and packaging may be subject to a handling fee.
  • The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
  • Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
  • Products purchased on promotion or clearance can only be returned within 5 days of receipt.
  • Express shipping fees are non-refundable.

Product FAQ

1 What does the Zinwave POI do?

The Point of Interface (POI) aggregates signals from multiple base stations or signal sources and conditions them for delivery to the Zinwave Uniwave 8000 Distributed Antenna System (DAS). It acts as the RF front-end for the system.
2 How many signal sources can the POI connect to?

It supports up to 8 duplex and 8 simplex RF input ports, meaning you can connect up to 8 BTSs, small cells, or repeaters per unit.
3 What frequency bands does the POI support?

The POI handles a wideband frequency range of 600 MHz to 5000 MHz, making it suitable for public safety, cellular (2G/3G/4G/5G), and private LTE networks.
4 Is the attenuation adjustable?

Yes, each path features remotely controllable variable attenuation via Ethernet or Bluetooth, allowing precise signal level control for both uplink and downlink paths.
5 What is the maximum RF input power per port?

Each RF input port supports up to +37 dBm, enabling integration with high-power signal sources like BTSs.
