Low stock
308-0002

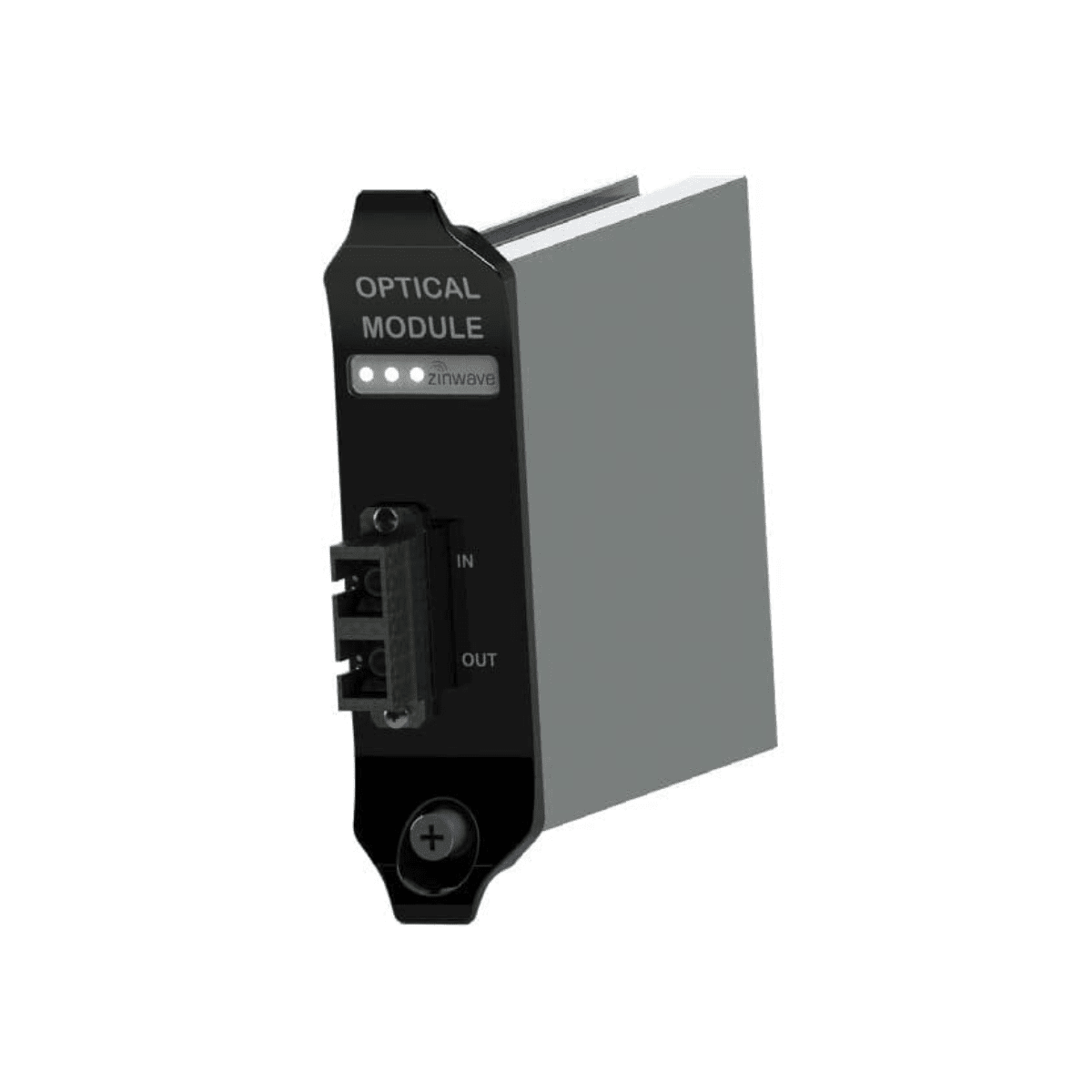

Zinwave Uniwave 8000 Optical Module

R 0.00
Tax included.
Key Features
  • Seamless connectivity to operators/sources
  • Scalable with four modules
  • Hot-swappable for uninterrupted operation
  • Reliable performance with low VSWR
  • Easy installation and deployment
Technical Specifications

SKU: 308-0002

MAXIMUM NUMBER PER PRIMARY HUB: 8

OPTICAL LOSS PER LINK: UP TO 5 dB0

PLACEMENT: PRIMARY HUB TO SECONDARY HUB OR PRIMARY TO REMOTE

OPTICAL TRANSMIT POWER: 4.5 mW (MIN) TO -10 mW (MAX)AUTO-

CONFIGURATION: CONFIGURED BY SOFTWARE

OPTICAL RECEIVE POWER: 10 mW (MAX)

RETURN LOSS: BETTER THAN 45 dB FOR ALL FIBRE CONNECTIONS IN THE SYSTEM

CONNECTIVITY: SC/APC DUPLEXSINGLE MODE 9/125 μm FIBRE, ALL CONNECTIONS FOR OPTIMUM PERFORMANCE

DIMENSIONS: W/D/H (mm)1.2” (31) x 4.6” (117) x 4.6” (116)

WEIGHT: 0.28 Kg unpacked
Coverage And Results

The Zinwave Uniwave 8000 Optical Module (SKU: 308-0002) delivers seamless, high-quality fibre-optic link between the Primary Hub and downstream Secondary Hubs or Remote Units. Fully integrated into the Uniwave 8000 system, you can deploy up to 8 optical modules in one Primary Hub, allowing for scalable expansion without sacrificing link integrity. Each link handles up to 5 dBo of optical loss, employs auto-configured transmit power (4.5 mW to –10 dBm), and achieves >45 dB return loss, ensuring robust signal fidelity over long fibre runs. These modules are hot-swappable, allowing for live maintenance or system growth without disrupting in-building coverage - maintaining consistent multi-carrier 150 MHz–5 GHz service across large venues.
Enquire Now

This is a commercial-grade product needing EXPERT ADVICE from professionals.

  • Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Zinwave Uniwave 8000 Optical Module

Uniwave 8000 Optical Module: Enhance connectivity with our fibre transport link system.

The Zinwave Uniwave 8000 Optical Module facilitates a duplex fiber connection from the Primary Hub to either a Secondary Hub or a Remote Unit. With the ability to install up to eight Optical Modules in a Primary Hub, it offers scalability and flexibility for expanding your network infrastructure.

Key Features:

  • Duplex Fiber Connection: Provides a reliable optical link between the Uniwave 8000 Primary Hub and Secondary Hub or Remote Unit.
  • Scalable Deployment: Supports up to eight Optical Modules in a Primary Hub, allowing for future expansion or configuration adjustments.
  • Hot Swappable: Designed as hot swappable units, enabling seamless system maintenance or addition of Secondary Hubs or Remote Units without disrupting service.
  • Front Deployment: Easily deployed in the front of the Primary Hub for convenient access and installation.
  • Enhanced Integration: With hot-swapping capabilities, integration of additional Secondary Hubs or Remote Units is smooth and interruption-free.

The Zinwave Uniwave 8000 Optical Module ensures efficient and uninterrupted connectivity, making it an essential component for expanding and maintaining your wireless network infrastructure.

Approvals & Listings:

  • Africa: ICASA approved
  • Europe: CE Marked for compliance with European Union regulations.
  • USA: FCC certified for meeting Federal Communications Commission standards.
  • Canada: Industry Canada (IC) approved.
  • Safety Standards: Complies with IEC 60950-1 and EN 60950 safety standards.

These approvals and listings ensure that the Zinwave Uniwave 8000Optical Module meets regulatory requirements and safety standards in key markets, providing assurance of quality and adherence to industry regulations.

Unit Specifications


SKU 308-0002
MAXIMUM NUMBER PER PRIMARY HUB 8
OPTICAL LOSS PER LINK UP TO 5 dB
PLACEMENT PRIMARY HUB TO SECONDARY HUB OR PRIMARY TO REMOTE
OPTICAL TRANSMIT POWER 4.5 mW (MIN) TO -10 mW (MAX)
CONFIGURATION AUTO-CONFIGURED BY SOFTWARE
OPTICAL RECEIVE POWER 10 mW (MAX)
RETURN LOSS BETTER THAN 45 dB
CONNECTIVITY SC/APC DUPLEX (SINGLE MODE 9/125 μm FIBRE, ALL CONNECTIONS FOR OPTIMUM PERFORMANCE)
DIMENSIONS W/D/H (mm) 1.2” (31) x 4.6” (117) x 4.6” (116)
WEIGHT 0.28 Kg (Unpacked)

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R60
R750 or less (2–5kg)R90
R750 or less (5–10kg)R90
Bulky Items (15kg+)R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R90
R750 or less (2–5kg)R90
R750 or less (5–10kg)R150
Bulky Items (15kg+)R350

Regional Delivery

WeightRate (ZAR)
0–2kgR120
2–5kgR150
5–10kgR220
15kg+R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

  • Items must be unmodified, in original condition, and include all accessories.
  • Original packaging and proof of purchase are required.
  • Returns that are not in original condition and packaging may be subject to a handling fee.
  • The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
  • Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
  • Products purchased on promotion or clearance can only be returned within 5 days of receipt.
  • Express shipping fees are non-refundable.

Product FAQ

1 What is the Zinwave Uniwave 8000 Optical Module used for?

It provides the fibre-optic link between the Primary Hub and Secondary Hubs or Remote Units, enabling full signal conversion and distribution across your DAS infrastructure.
2 How many modules can be installed per Primary Hub?

You can install up to 8 optical modules in a single Primary Hub, allowing for significant network scaling.
3 What optical power levels does it support?

Auto-adjusted transmit power ranges from 4.5 mW (minimum) to –10 dBm (maximum), with receive power capacity of up to 10 mW.
4 What is the maximum optical loss the module supports?

Each link can tolerate up to 5 dBo loss between the Primary Hub and Remote/Secondary Hub, sufficient for typical fibre cabling lengths.
5 Are the modules hot-swappable?

Yes - these modules are designed to be hot-swappable, allowing live changes without service disruption.
