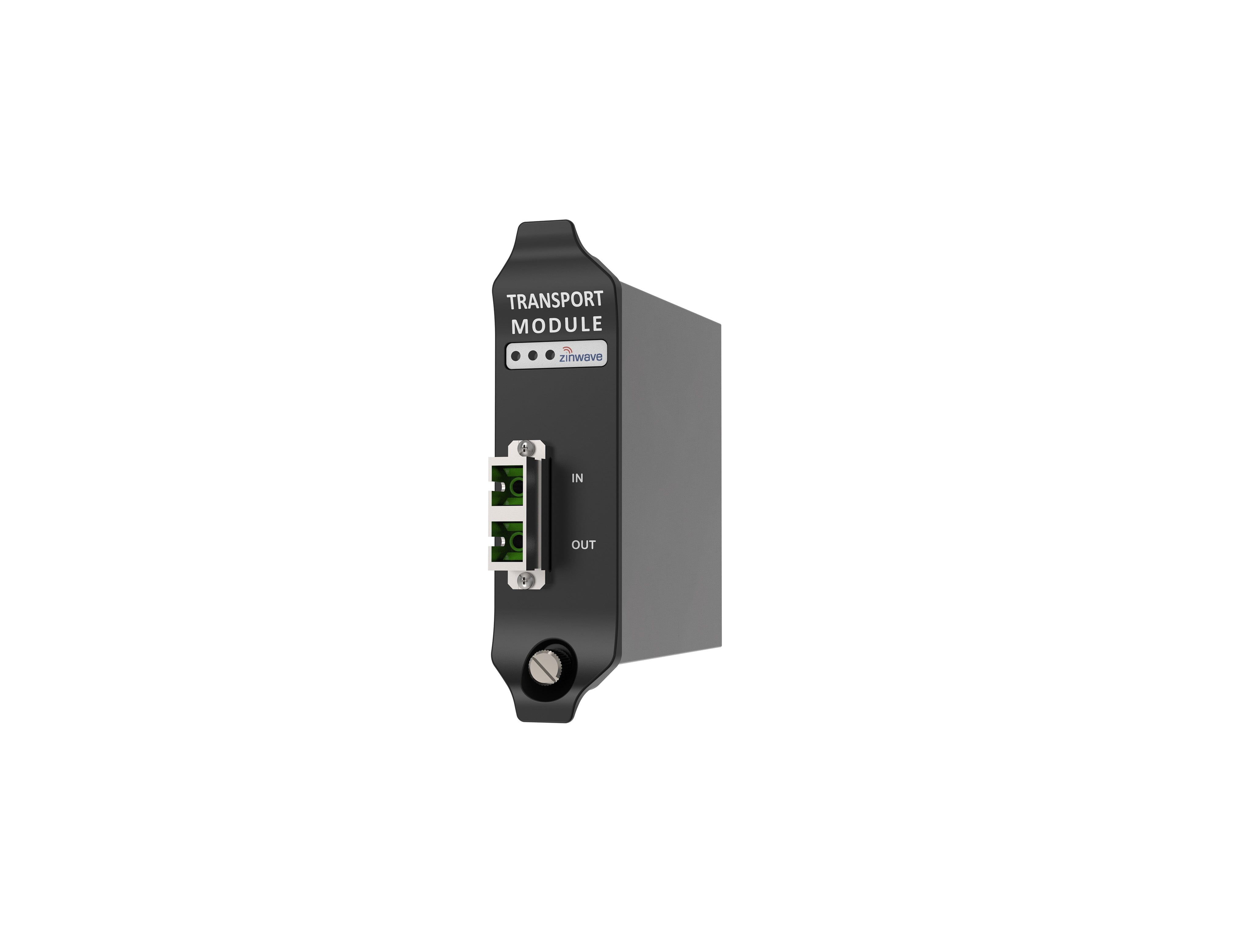

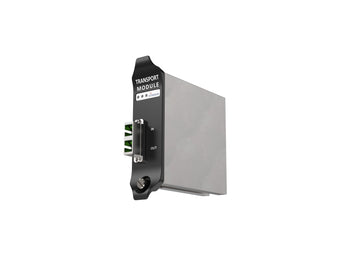

Uniwave 8000 Transport Module Right Angled Side
Uniwave 8000 Transport Module Right Angled

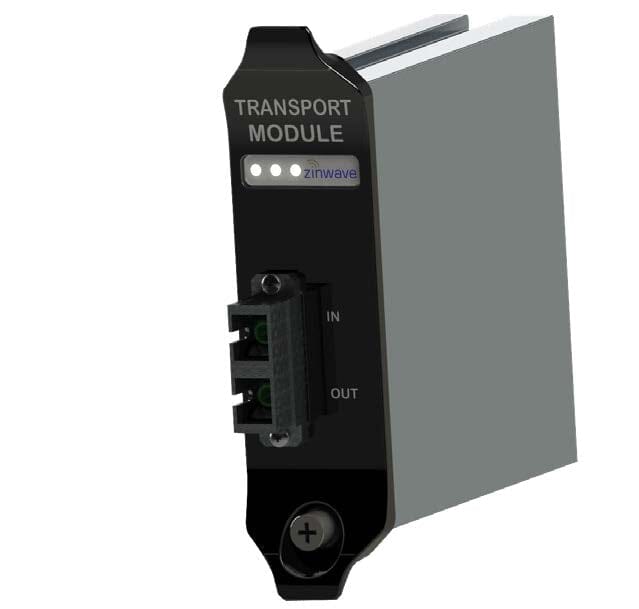

Uniwave 8000 Transport Module front
Uniwave 8000 Transport Module front
Uniwave 8000 Transport Module Right Angled Side
Uniwave 8000 Transport Module Right Angled
Uniwave 8000 Transport Module front
Uniwave 8000 Transport Module front
Low stock
305-0005

Zinwave Unitivity 5000 Transport Module

R 0.00
Tax included.
Key Features
  • Seamless high-speed data transmission
  • Reliable, robust performance
  • Scalable for evolving networks
  • Optimized efficiency and compatibility
  • Streamlined installation and maintenance
Technical Specifications

MAXIMUM NUMBER PER PRIMARY HUB: 8

OPTICAL LOSS PER LINK: UP TO 5 dB

PLACEMENT: CENTRAL HUB TO PRIMARY HUB

OPTICAL TRANSMIT POWER: 4.5 mW (MIN) TO -10 mW (MAX)AUTO-CONFIGURED BY SOFTWARE OPTICAL RECEIVE POWER10 mW (MAX)

RETURN LOSS: BETTER THAN 45 dB FOR ALL FIBRE CONNECTIONS IN THE SYSTEM

CONNECTIVITY: SC/APC DUPLEX SINGLE MODE 9/125 μm FIBRE, ALL CONNECTIONS FOR OPTIMUM PERFORMANCE

DIMENSIONS: W/D/H (mm)31 X 117 X116

WEIGHT: 0.28 KgUNPACKED
Coverage And Results

The Zinwave Unitivity 5000 Transport Module (305‑0005) enables seamless fiber-based connectivity between two cascaded Primary Hubs within the Unitivity 5000 DAS. Designed to look like an optical module, it integrates internal hardware to replicate service module functions, delivering full signal transport capabilities across fiber links. Installable in either the front (up to 8 units) or the rear (up to 4 units) of a Primary Hub, this module ensures scalable, space-saving deployment without compromising performance. When paired correctly, it facilitates high-bandwidth RF transport across buildings - up to 12 km apart -with end-to-end performance that matches traditional DAS, making it ideal for campus, enterprise, or multi-building installations.

This is a commercial-grade product needing EXPERT ADVICE from professionals.

  • Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Zinwave Unitivity 5000 Transport Module

Unitivity 5000 Transport Module: Enhance connectivity with our fibre transport link system.

The Transport Module serves as a crucial component in establishing a fibre transport link within a network infrastructure. Its primary function is to facilitate the transmission of data or signals between a centralized hub and a remote hub chassis.

Key Features and Specifications

  • Fibre Connectivity: Utilizes single-mode 9/125 μm fiber for optimal performance across all connections in the system.
  • Modular Design: Easy installation and integration into existing network infrastructure.
  • Multiple Ports: SC/APC duplex connectivity for efficient link establishment.
  • Scalability: Supports up to 8 modules in the centralized hub chassis to accommodate expanding networks.
  • Management and Monitoring: Allows remote monitoring and configuration through software.
  • Bandwidth Capacity: Up to 5 dB optical loss per link, ensuring sufficient data throughput.
  • Reliability: Built for longevity in demanding network environments.
  • Dimensions: Compact design: 31 x 117 x 116 and lightweight at 0.28 kg.

Approvals & Listings:

  • Africa: ICASA approved
  • Europe: CE Marked for compliance with European Union regulations.
  • USA: FCC certified for meeting Federal Communications Commission standards.
  • Canada: Industry Canada (IC) approved.
  • Safety Standards: Complies with IEC 60950-1 and EN 60950 safety standards.

These approvals and listings ensure that the Transport Module meets regulatory requirements and safety standards in key markets, providing assurance of quality and adherence to industry regulations.

Unit Specifications

MAXIMUM NUMBER PER PRIMARY HUB 8
OPTICAL LOSS PER LINK UP TO 5 dB
CENTRAL HUB TO PRIMARY HUB
OPTICAL TRANSMIT POWER 4.5 mW (MIN) TO -10 mW (MAX)
AUTO-CONFIGURED BY SOFTWARE
OPTICAL RECEIVE POWER 10 mW (MAX)
RETURN LOSS BETTER THAN 45 dB
FOR ALL FIBRE CONNECTIONS IN THE SYSTEM
CONNECTIVITY SC/APC DUPLEX
SINGLE MODE 9/125 μm FIBRE, ALL CONNECTIONS FOR OPTIMUM PERFORMANCE
DIMENSIONS W/D/H (mm) 31 x 117 x 116
WEIGHT 0.28 Kg
UNPACKED

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R60
R750 or less (2–5kg)R90
R750 or less (5–10kg)R90
Bulky Items (15kg+)R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R90
R750 or less (2–5kg)R90
R750 or less (5–10kg)R150
Bulky Items (15kg+)R350

Regional Delivery

WeightRate (ZAR)
0–2kgR120
2–5kgR150
5–10kgR220
15kg+R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

  • Items must be unmodified, in original condition, and include all accessories.
  • Original packaging and proof of purchase are required.
  • Returns that are not in original condition and packaging may be subject to a handling fee.
  • The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
  • Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
  • Products purchased on promotion or clearance can only be returned within 5 days of receipt.
  • Express shipping fees are non-refundable.

Product FAQ

1 What does the Zinwave Unitivity 5000 Transport Module do?

It creates a fiber-based link between two Primary Hubs, enabling full-service DAS transport over long distances on single-mode fiber.
2 How many Transport Modules can be installed per Primary Hub?

Up to 8 in the front or 4 in the rear of the Primary Hub - installation in both positions simultaneously is not supported.
3 Does the Transport Module also function as a Service Module?

Yes, it includes built‑in hardware that replicates service module functions and passes RF services along the fiber link.
4 What are the optical performance specifications?

The module supports up to 5 dB optical loss per link, with transmit power between 4.5 mW (min) and –10 mW (max), and receive power up to 10 mW.
5 Is the Transport Module compliant with global safety standards?

Yes - it features CE marking, FCC certification, Industry Canada approval, IEC 60950‑1 safety listing, and IEC 60825‑1 laser safety compliance.
