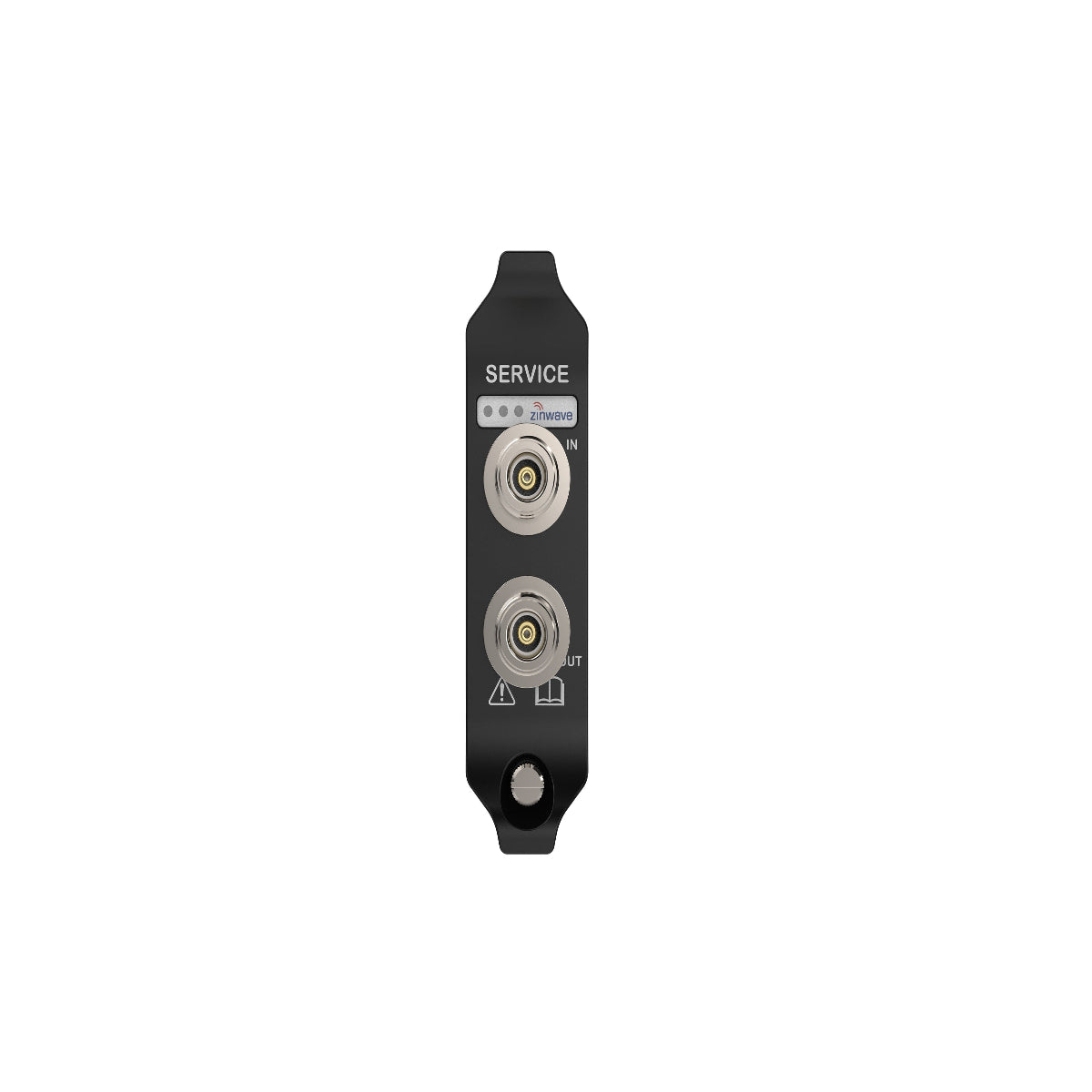

Zinwave Uniwave 8000 Service Module Front

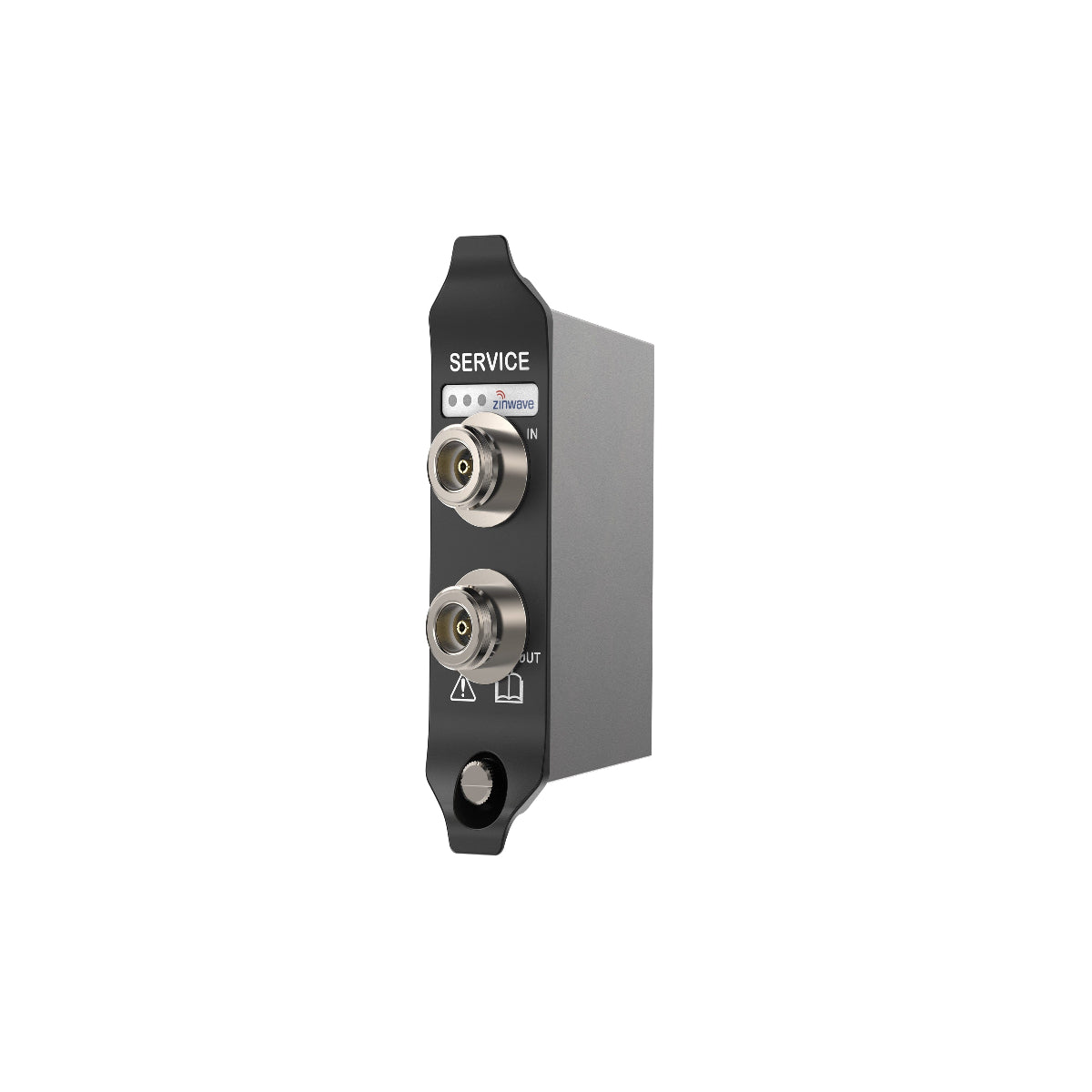

Zinwave Uniwave 8000 Service Module Right Angle

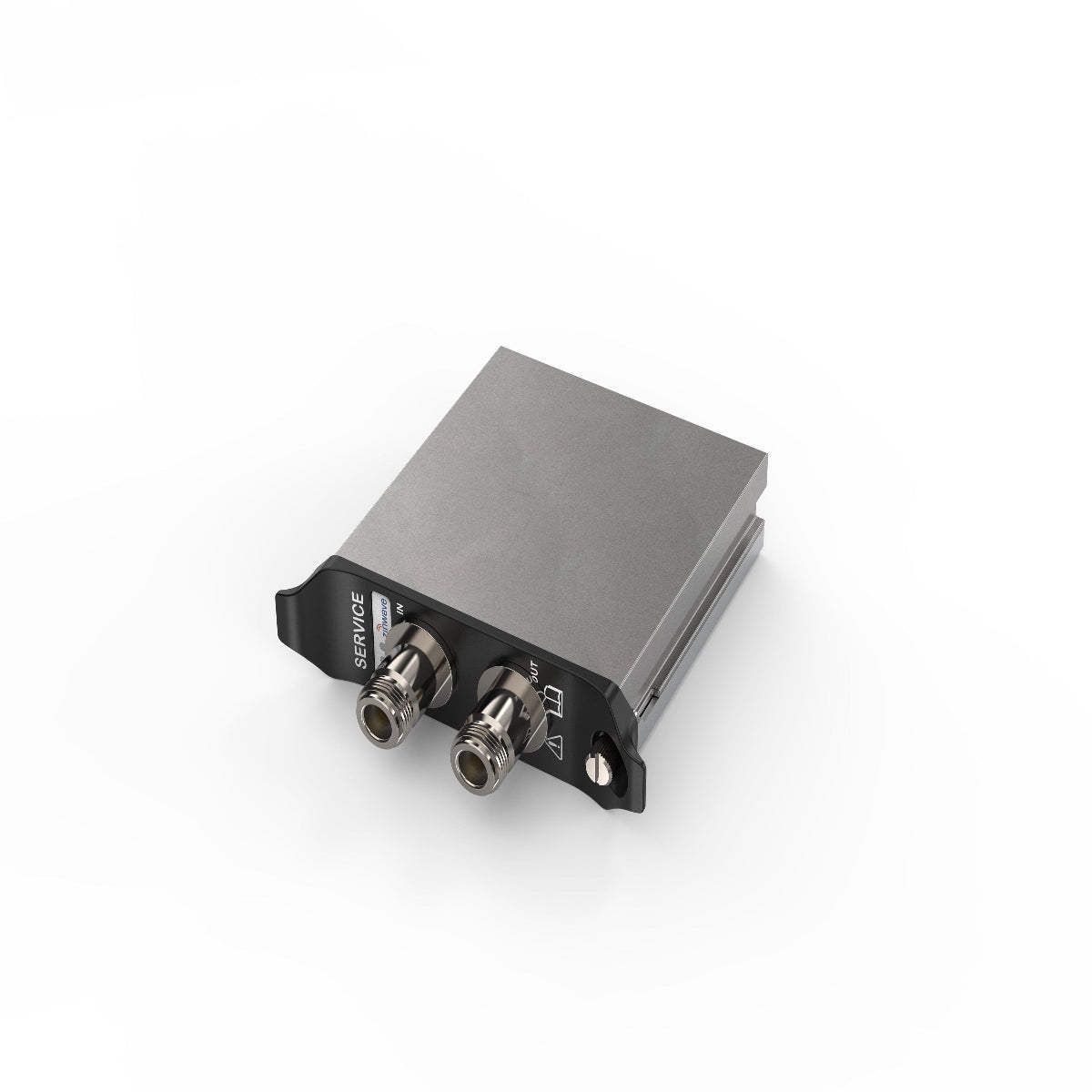

Zinwave Uniwave 8000 Service Module Top

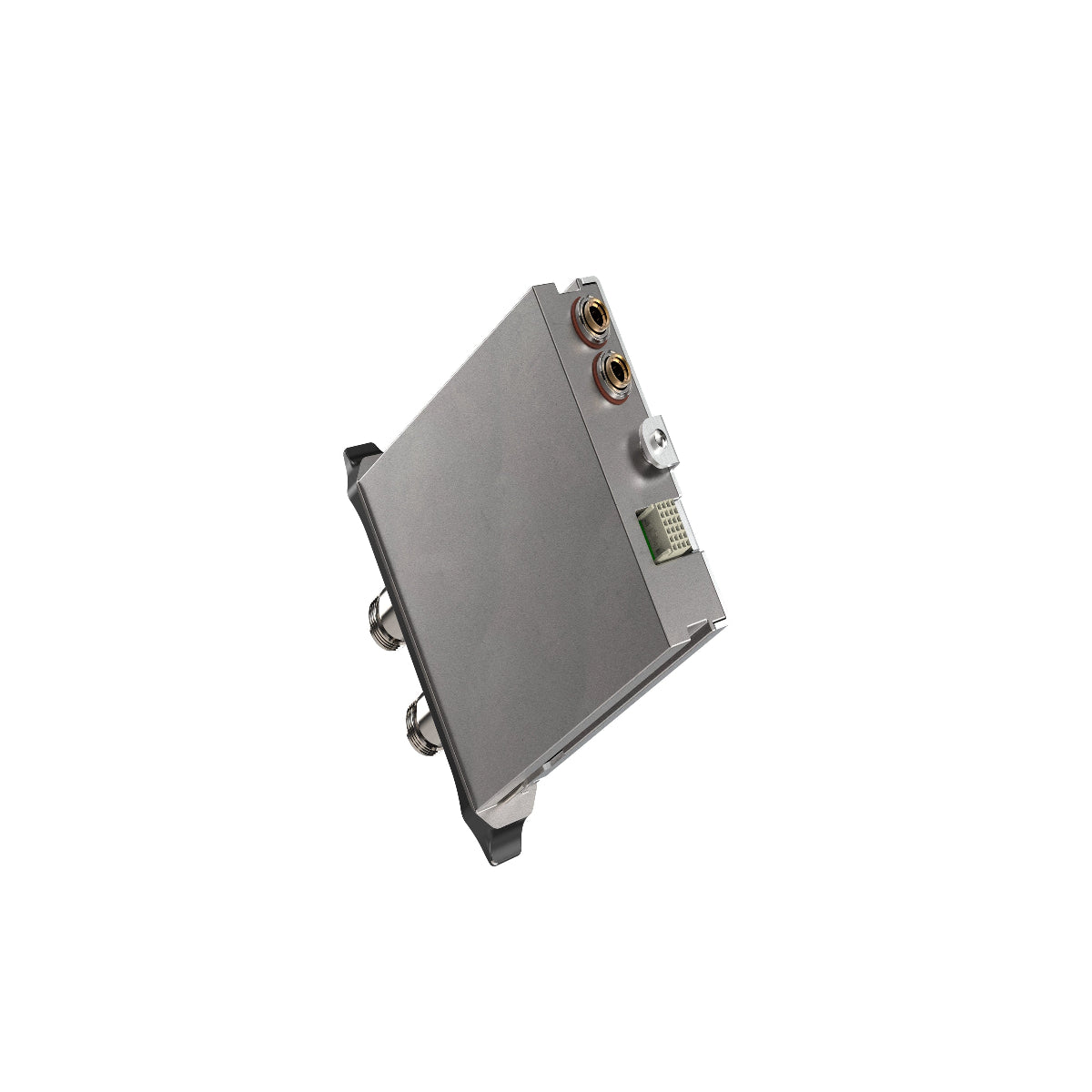

Zinwave Uniwave 8000 Service Module Back
Zinwave Uniwave 8000 Service Module Front
Zinwave Uniwave 8000 Service Module Right Angle
Zinwave Uniwave 8000 Service Module Top
Zinwave Uniwave 8000 Service Module Back
Low stock
305-0003

Zinwave Unitivity 5000 Service Module

R 0.00
Tax included.
Key Features
  • Seamless connectivity to operators/sources
  • Scalable with four modules
  • Hot-swappable for uninterrupted operation
  • Reliable performance with low VSWR
  • Easy installation and deployment
Technical Specifications

MAXIMUM NUMBER PER PRIMARY HUB: 4

RF INPUT POWER: -5 dBM (MIN) TO +15 dBM (MAX)WORKING INPUT POWER

VSWR: 1.5

CONNECTIVITY: N-FEMALE TX AND RX PER SERVICE MODULE

DIMENSIONS: W/D/H (mm)31 X 123 X116

WEIGHT: 0.3 Kg UNPACKED
Coverage And Results

The Zinwave Unitivity 5000 Service Module functions as a critical interface between RF sources - such as BTS, repeaters, or small cells - and the Unitivity 5000 DAS ecosystem. Installed within the Primary Hub, it supports up to four service modules, each hot‑swappable to allow maintenance or upgrades without disruption. Covering a broad 150 MHz–2.7 GHz frequency range, the module delivers reliable RF input power from –5 dBm to +15 dBm with a VSWR of 1.5. This makes it ideal for multi-operator installations requiring simultaneous coverage of mobile and private radio services. By integrating seamlessly with SC/APC fibre modules and Remote Units, it ensures scalable and stable in-building coverage with minimal optical power loss and optimized signal alignment.

This is a commercial-grade product needing EXPERT ADVICE from professionals.

  • Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Zinwave Unitivity 5000 Service Module

Unitivity 5000 Service Module: Enhance connectivity with our fibre transport link system.

Service Modules connect to the wireless operator or public safety source(s) or to a Point of Interface (POI). The Primary Hub supports up to four Service Modules. They are hot swappable units, allowing for the addition of operators/ frequencies without disrupting service or system maintenance.

Key Features and Specifications

  • Connectivity: Service Modules establish connections to wireless operators, public safety sources, or Point of Interface (POI).
  • Scalability: The Primary Hub supports up to four Service Modules, providing flexibility for expanding network infrastructure.
  • Hot Swappable: Service Modules are hot-swappable units, enabling seamless addition of operators/frequencies without interrupting service or requiring system maintenance.
  • Reliability: Built for longevity in demanding network environments.
  • Dimensions: Compact design: 31 x 123 x 116 and lightweight at 0.3 kg.

Approvals & Listings:

  • Africa: ICASA approved
  • Europe: CE Marked for compliance with European Union regulations.
  • USA: FCC certified for meeting Federal Communications Commission standards.
  • Canada: Industry Canada (IC) approved.
  • Safety Standards: Complies with IEC 60950-1 and EN 60950 safety standards.

These approvals and listings ensure that the Service Module meets regulatory requirements and safety standards in key markets, providing assurance of quality and adherence to industry regulations.

Unit Specifications

MAXIMUM NUMBER PER PRIMARY HUB 4
RF INPUT POWER -5 dBm (MIN) TO +15 dBm (MAX)
WORKING INPUT POWER
VSWR 1.5
CONNECTIVITY N-FEMALE
TX AND RX PER SERVICE MODULE
DIMENSIONS W/D/H (mm) 31 x 123 x 116
WEIGHT 0.3 Kg
UNPACKED

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R60
R750 or less (2–5kg)R90
R750 or less (5–10kg)R90
Bulky Items (15kg+)R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R90
R750 or less (2–5kg)R90
R750 or less (5–10kg)R150
Bulky Items (15kg+)R350

Regional Delivery

WeightRate (ZAR)
0–2kgR120
2–5kgR150
5–10kgR220
15kg+R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

  • Items must be unmodified, in original condition, and include all accessories.
  • Original packaging and proof of purchase are required.
  • Returns that are not in original condition and packaging may be subject to a handling fee.
  • The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
  • Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
  • Products purchased on promotion or clearance can only be returned within 5 days of receipt.
  • Express shipping fees are non-refundable.

Product FAQ

1 How many service modules can be installed per Primary Hub?

Up to 4 Service Modules can be deployed in each Primary Hub, allowing flexible support for different frequency bands and operators.
2 What RF input power range does the Service Module accept?

It supports RF input power levels between –5 dBm (min) and +15 dBm (max) for optimal performance.
3 What is the VSWR rating of the Zinwave Service Module?

The module maintains a low VSWR of 1.5, ensuring efficient signal integrity and reduced reflections.
4 Is the Service Module hot‑swappable?

Yes, it supports hot‑swapping, enabling module replacement or system upgrades without powering down the DAS.
5 What frequency bands are supported by the Service Module?

It covers a wideband frequency range from 150 MHz up to 2.7 GHz, suitable for cellular (2G/3G/4G), public safety, and private radio services.
