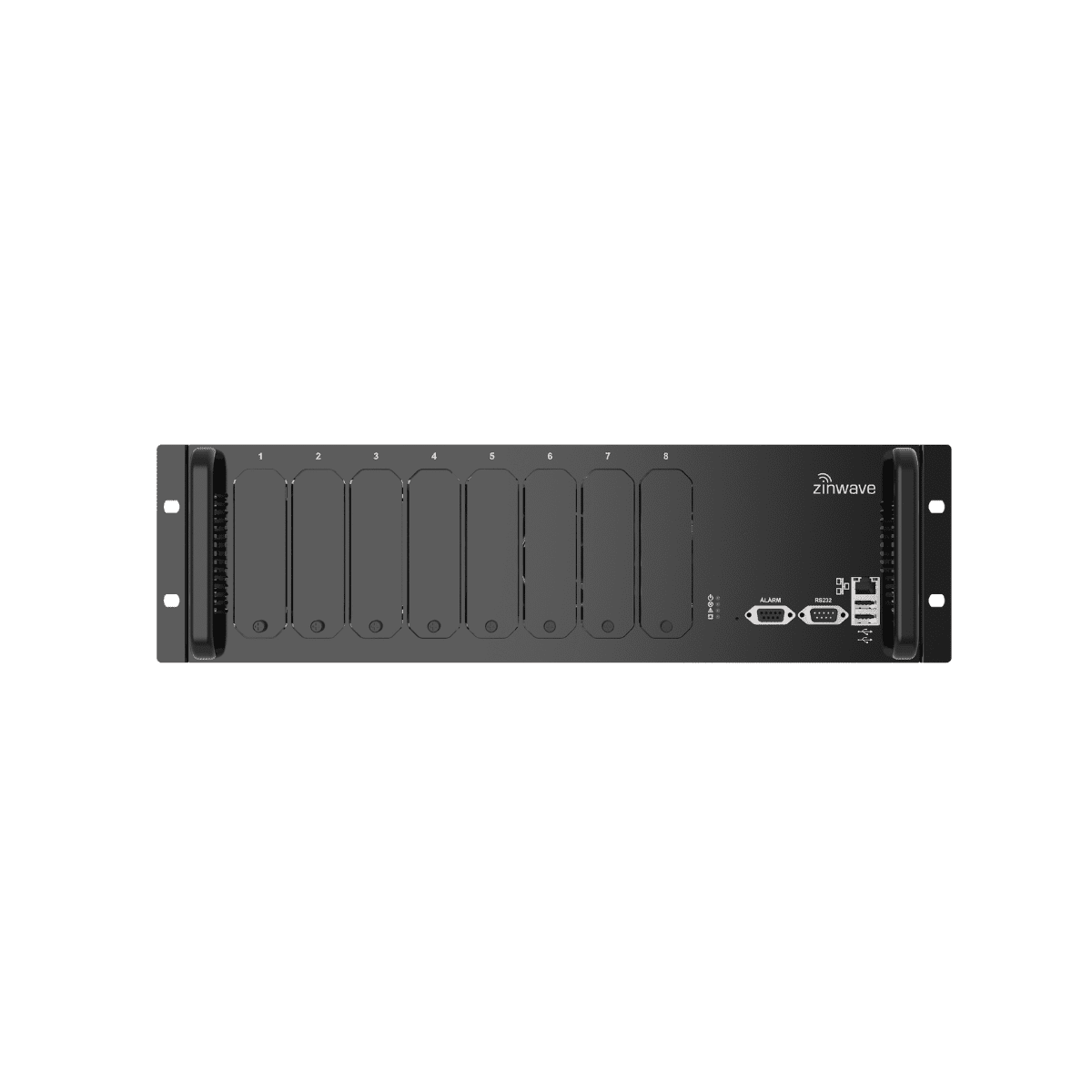

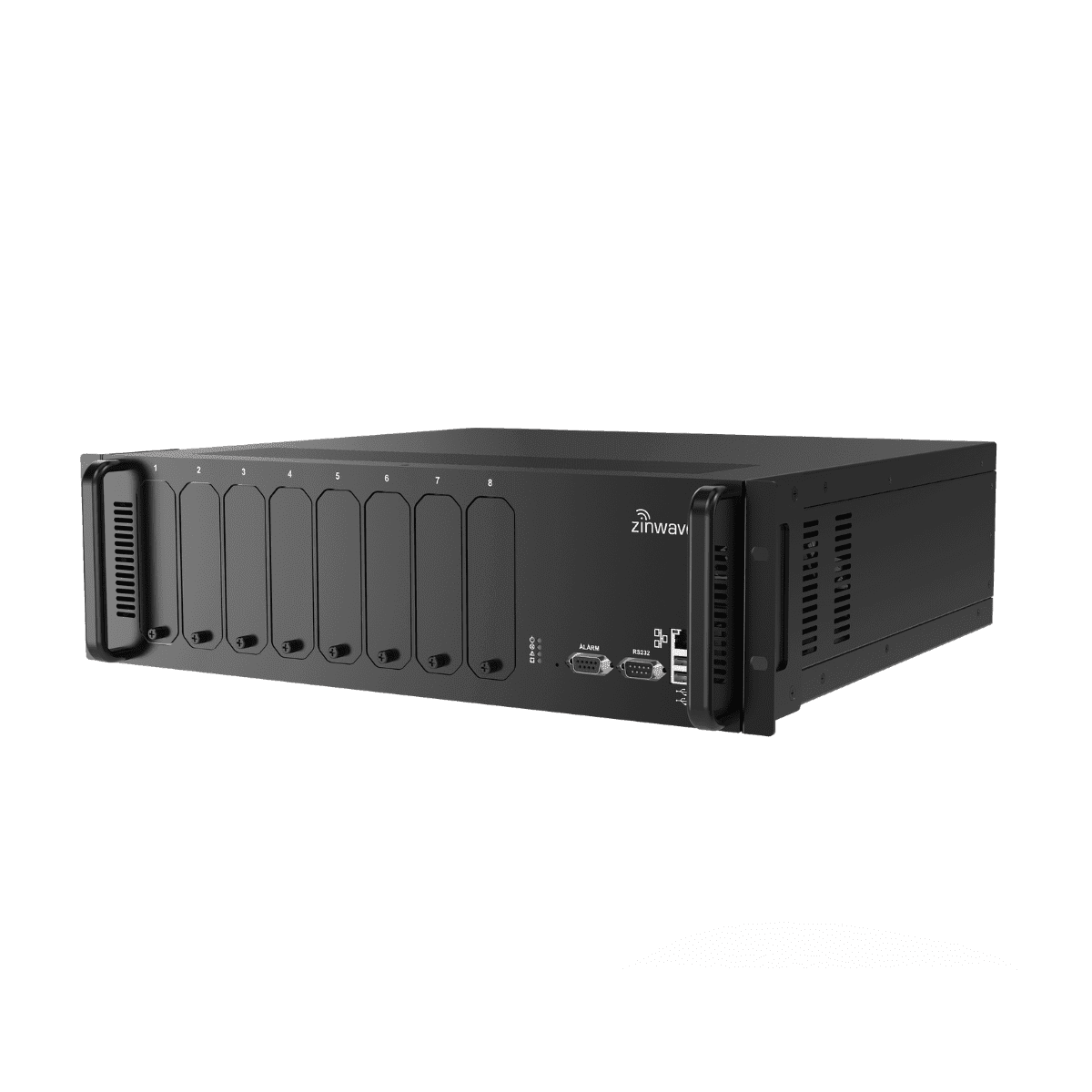

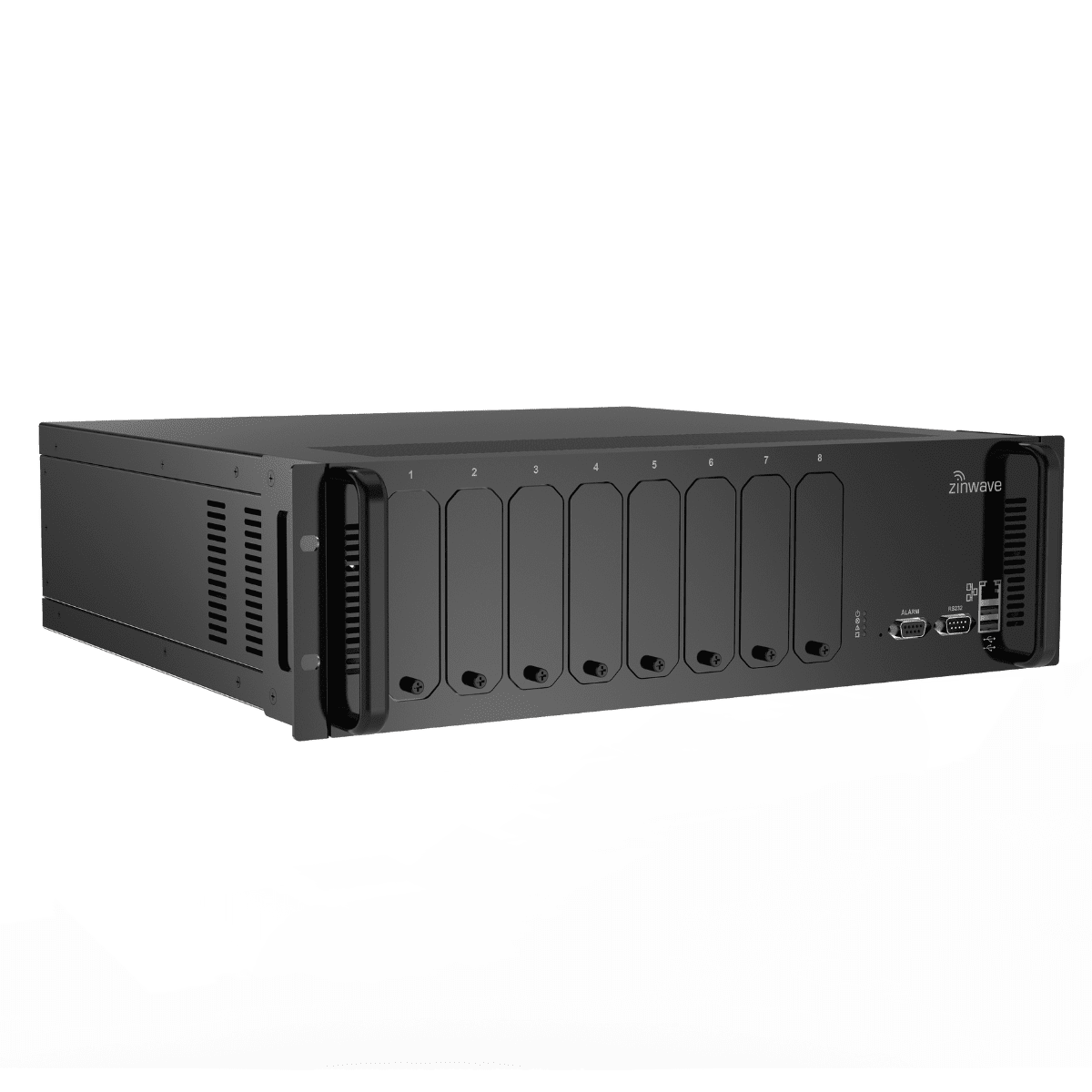

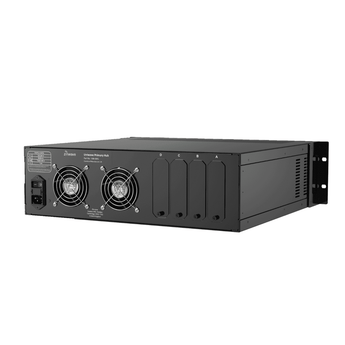

Product Information For Zinwave Unitivity 5000 Primary Hub
Unit Specifications
| System Bandwidth | 150 MHz to 2.7 GHz |
| Gain Control Step Resolution | 1 dB |
| Dimensions W / D / H (mm) | 444 x 430 x 132 mm (3U) |
| Weight | 15.10 kg (unpacked, fully populated) |
| Electrical Max Loading | AC 110/230 V, 50/60 Hz / 80 W max, 0.7A, 274 BTU/hr |
| Operating Temp (Ambient Non-Condensing) | -5 to +45 °C (23 to 113 ºF) |
| Connections | Ethernet (10/100 Base-T), 2 alarm relays (DB-9F), 2 USB |
Approvals & Listings
| Africa | ICASA Certified |
| Europe | CE Marked (RED 2014/53/EU, RoHS 2011/65/EC) |
| USA | FCC Certified |
| Canada | Industry Canada Certified |
| Safety | IEC 60950-1; EN 60950-1; UL60950-1; UL Listed-E486578 |
| Laser Safety | IEC 60825-1:2007 |
System Connections
| Primary Hub with Service Modules | N-Type RF Terminations |
| Primary Hub with Optical Modules | SC/APC Optical Connections |
| Primary Hub with Transport Modules | SC/APC Optical Connections |
| Hub Interconnect (Primary to Secondary) | Fibre SC/APC Duplex Connectors |
| Alarming | Externally via DB9 Connector |
