BT974884

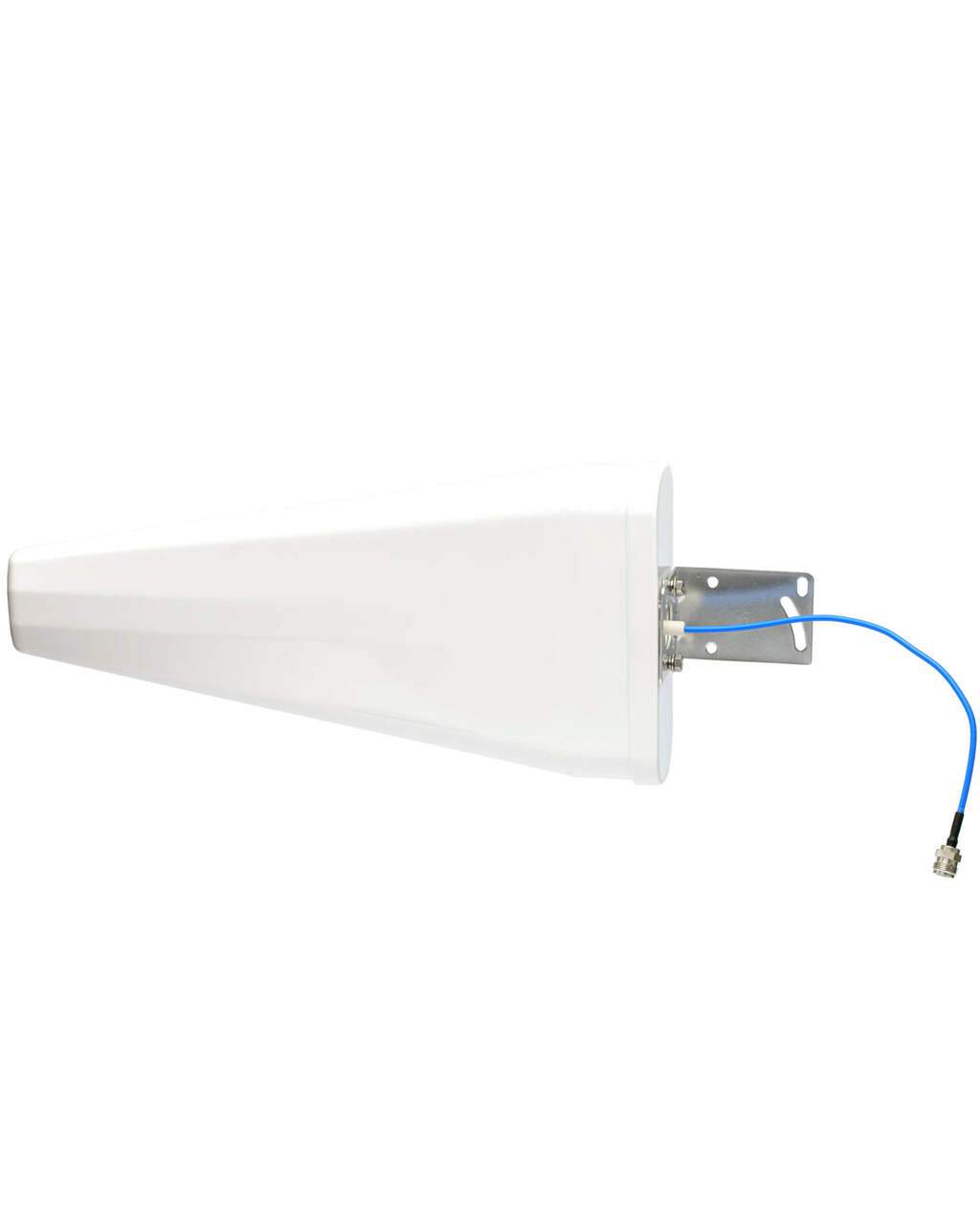

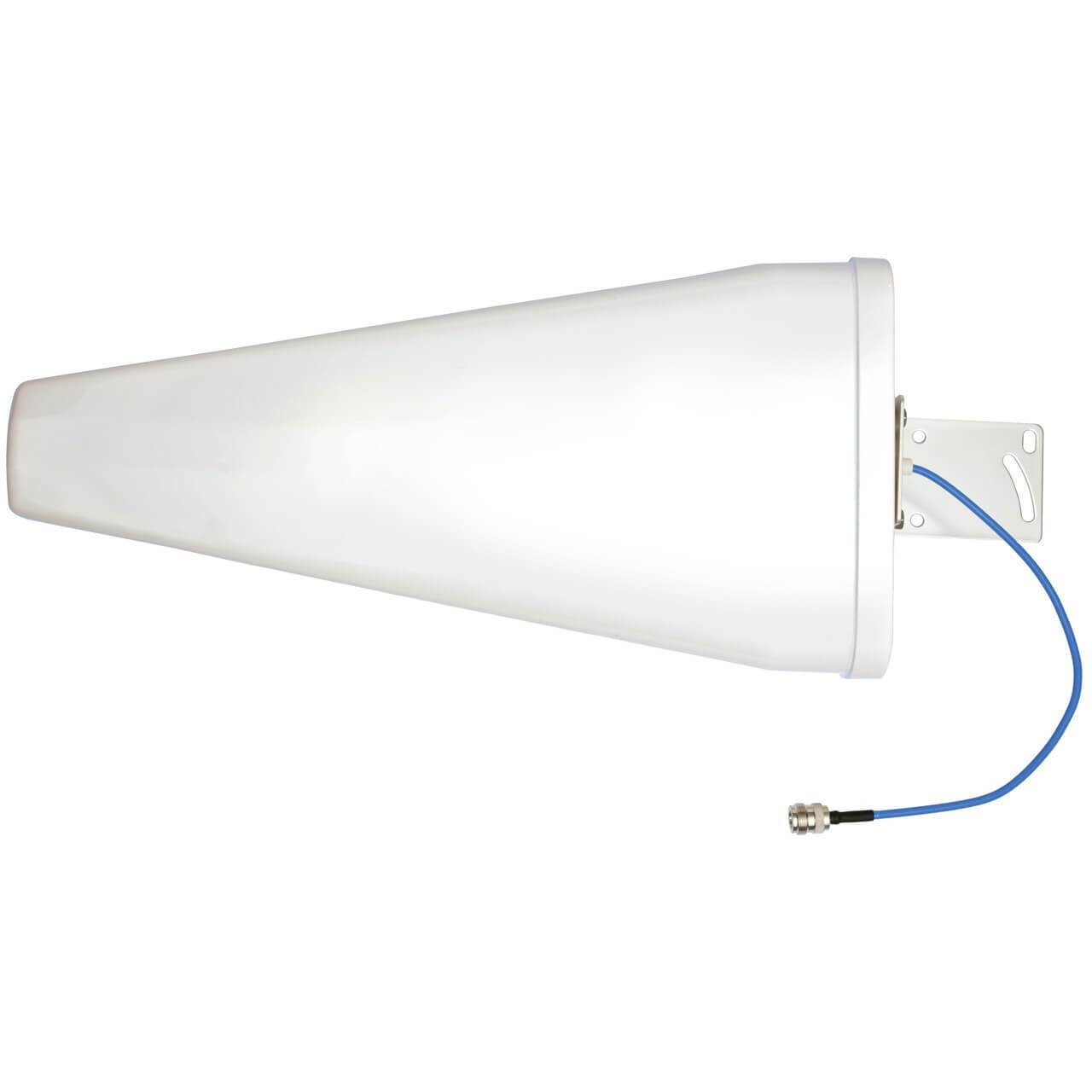

Wideband Outdoor Yagi Directional Antenna, 50 Ohm, 140 PIM

Name: Wideband Outdoor Yagi Directional Antenna, 50 Ohm, 140 PIM
Brand: Bolton Technical
SKU: BT974884
Price: 625.00 ZAR
Availability: InStock

R 625.00

Tax included.

5.0

Quantity

Product variants

Key Features

50 Ohm Outdoor Cellular Yagi Antenna
Over 5km of range
Up to +9 dB of gain
45 degree directional beam, 50 Ohm, N-Female termination
Covers 698-2700MHz cellular bandwidths, all cellular carriers
ABS antenna cover, waterproof, UV-resistant

Technical Specifications

Frequency Ranges & Gains

698–960 MHz: +8.0 dB gain

1710–2700 MHz: +9.0 dB gain

Polarisation: Vertical & Horizontal

VSWR: ≤1.8 / 1.5

Impedance: 50 Ohm

Maximum Power Input: 50 W

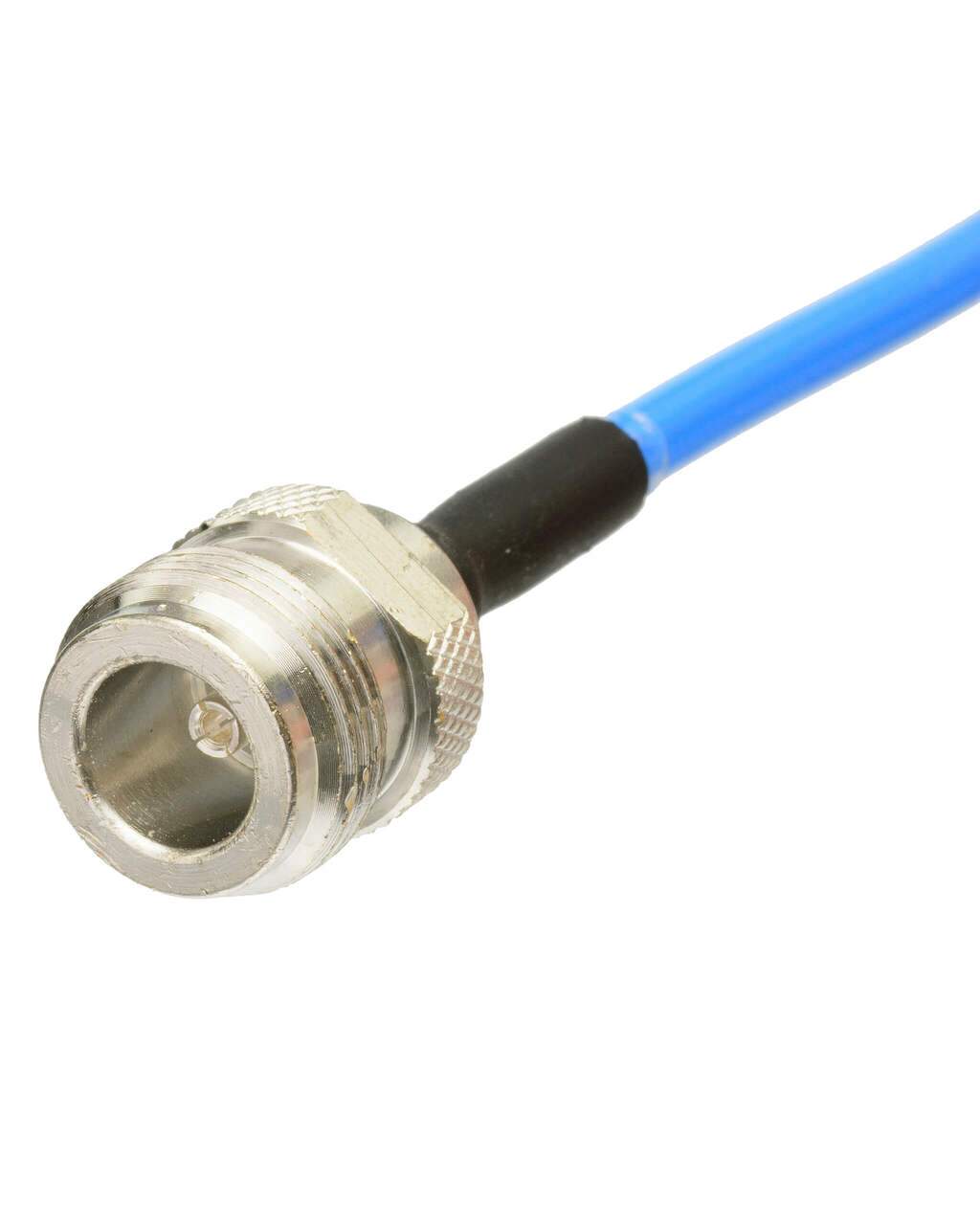

Connector Type: N-Female

Coverage And Results

The Yagi antenna is designed to pick up signal from cell towers up to 5 km away, depending on terrain and line-of-sight conditions. It delivers a concentrated, directional signal with a 45° horizontal beamwidth, ensuring efficient reception from a targeted direction. When paired with a signal booster, the Yagi helps distribute signal indoors over a general range of several metres - ideal for improving coverage in homes, small offices, remote buildings, and other fixed locations.

Pickup available at Bolton Technical Cape Town

Usually ready in 24 hours

Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Wideband Outdoor Yagi Directional Antenna, 50 Ohm, 140 PIM

Yagi Directional Antenna – Unlock Stronger, Faster Cellular Signal Where It Counts

Struggling with slow or spotty cellular reception? Our high-performance Yagi directional antenna is designed to cut through the noise and deliver a powerful, focused signal boost — perfect for South African homes, lodges, farms, offices, and commercial properties where reliable connectivity is essential.

Why choose a Yagi? Unlike omnidirectional antennas that pick up signal from all around, the Yagi’s narrow 45-degree beam acts like a torchlight, honing in precisely on the nearest cellular tower. This focused approach provides a significant gain of up to 11 dBi, capturing a stronger, cleaner signal at the source and dramatically improving your cellular booster or hotspot’s performance. This focused reception means better data speeds, fewer dropped calls, and improved voice quality — even in remote or fringe areas where signal is traditionally weak or unreliable.

Key benefits: The Yagi’s directional design enables it to pull in signal from much farther away than omni antennas, ideal for rural areas and locations with obstructed line-of-sight. Enjoy faster downloads, clearer calls, and more reliable connections when your antenna is correctly aligned with the cell tower.Designed for fixed outdoor installations, this antenna stands up to sun, wind, and rain — perfect for the varied climates across the country.Works seamlessly with all major 50-ohm cellular signal boosters (weBoost, SureCall, Cel-Fi, and others) as well as cellular hotspots and routers (Pepwave, MoFi, Netgear Nighthawk, etc.).

Installation note: While it requires precise aiming to maximize its performance, the effort is worthwhile. Pointing the Yagi correctly unlocks the full strength of your cellular signal, especially in challenging environments where omnidirectional antennas fall short. If you’re serious about boosting your cellular signal and cutting out frustration, the Yagi directional antenna is a proven, trusted choice across South Africa’s varied landscapes - from urban fringes to remote farmsteads.

Frequencies & Gains

Frequency	Gain
698–960 MHz	+8.0 dB
1710–2700 MHz	+9.0 dB
Polarization	Vertical / Horizontal
VSWR	≤1.8 / 1.5
Impedance	50 Ohm
Max Power Input	50 W
Connectors	N-Female
Radiator Material	Aluminum
Radome Material	ABS Anti-UV
Water Resistance	IPX Weather Rated
Dimensions	440 x 210 x 60 mm

Download Spec Sheet

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R60
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R90
Bulky Items (15kg+)	R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R90
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R150
Bulky Items (15kg+)	R350

Regional Delivery

Weight	Rate (ZAR)
0–2kg	R120
2–5kg	R150
5–10kg	R220
15kg+	R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

Items must be unmodified, in original condition, and include all accessories.
Original packaging and proof of purchase are required.
Returns that are not in original condition and packaging may be subject to a handling fee.
The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
Products purchased on promotion or clearance can only be returned within 5 days of receipt.
Express shipping fees are non-refundable.

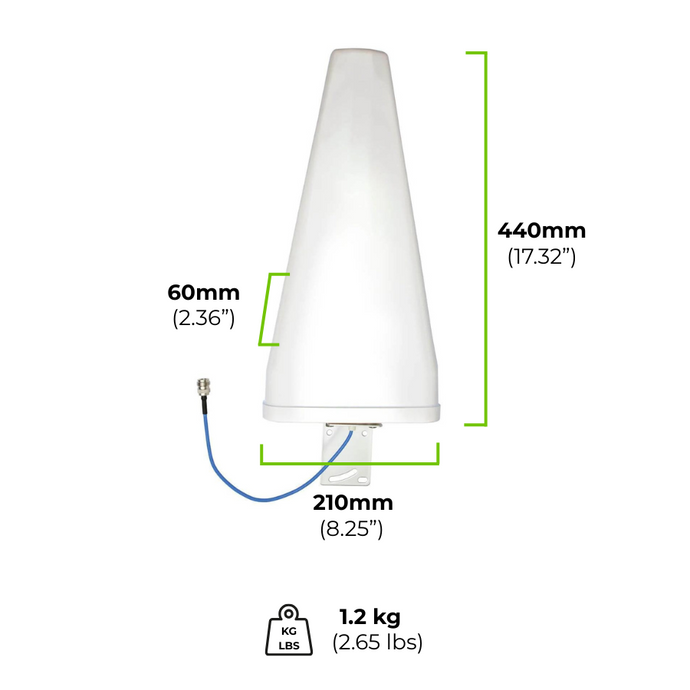

Product Dimensions

Weight 1,2 KG

440mm L x 210mm W x 60mm D

Product FAQ

1 When Should I Buy the Yagi?

The Yagi sits in a sweet spot for most South African homes, small businesses, and farms looking to improve their cellular signal. It offers higher gain than our omni-directional All-Rounder, but slightly less than the high-powered Arrow or Long Ranger. If you’ve got moderate-to-weak signal outdoors but aren’t kilometres away from the nearest tower, the Yagi is your go-to.

It’s especially popular with those looking to boost Vodacom, MTN, Cell C or Telkom LTE signals with a signal booster or a fixed wireless LTE/5G router. It’s directional—so you’ll get the best results when it’s aimed at the closest cell tower.

⚠️ The Yagi is a 50 Ohm antenna with an N-Female connector. Make sure your setup includes 50 Ohm coaxial cable with an N-Male termination.

2 What Kind of Signal Does the Yagi Capture?

The Yagi is wideband and works across 698–2700 MHz, which covers all 2G, 3G, 4G/LTE, and even some low-band 5G frequencies used in South Africa. That includes:

Vodacom: LTE 900 / 1800 / 2100 MHz

MTN: LTE 1800 / 2100 / 2600 MHz

Cell C: LTE 900 / 2100 MHz

Telkom: LTE 1800 / 2300 MHz

If your network operates in that range (which almost all do), the Yagi will do the job.

3 What Does dB Mean? What About Gain?

dB, or decibels, refers to how much an antenna strengthens (or "gains") a signal. Because dB is measured on a logarithmic scale, every +3 dB basically doubles the power. So, a 10 dB Yagi gives you significantly more signal than an omni antenna, especially when aimed precisely.

4 Will the Yagi Work with My Network?

Absolutely. Whether you're on Vodacom, MTN, Cell C, or Telkom, the Yagi will work - as long as your signal is within the 698–2700 MHz range (and it almost always is). It’s network-agnostic, meaning you can switch providers and still use the same antenna.

5 Can I Boost Multiple Networks at Once?

Yes - but there’s a catch. Since the Yagi is directional, it performs best when aimed directly at a single tower. If all the networks you care about (say Vodacom and MTN) are broadcasting from the same tower, then you’re in luck. If they’re coming from different towers, you’ll need to: pick one to prioritise, or install multiple antennas (one for each direction) and combine them using a signal combiner.
