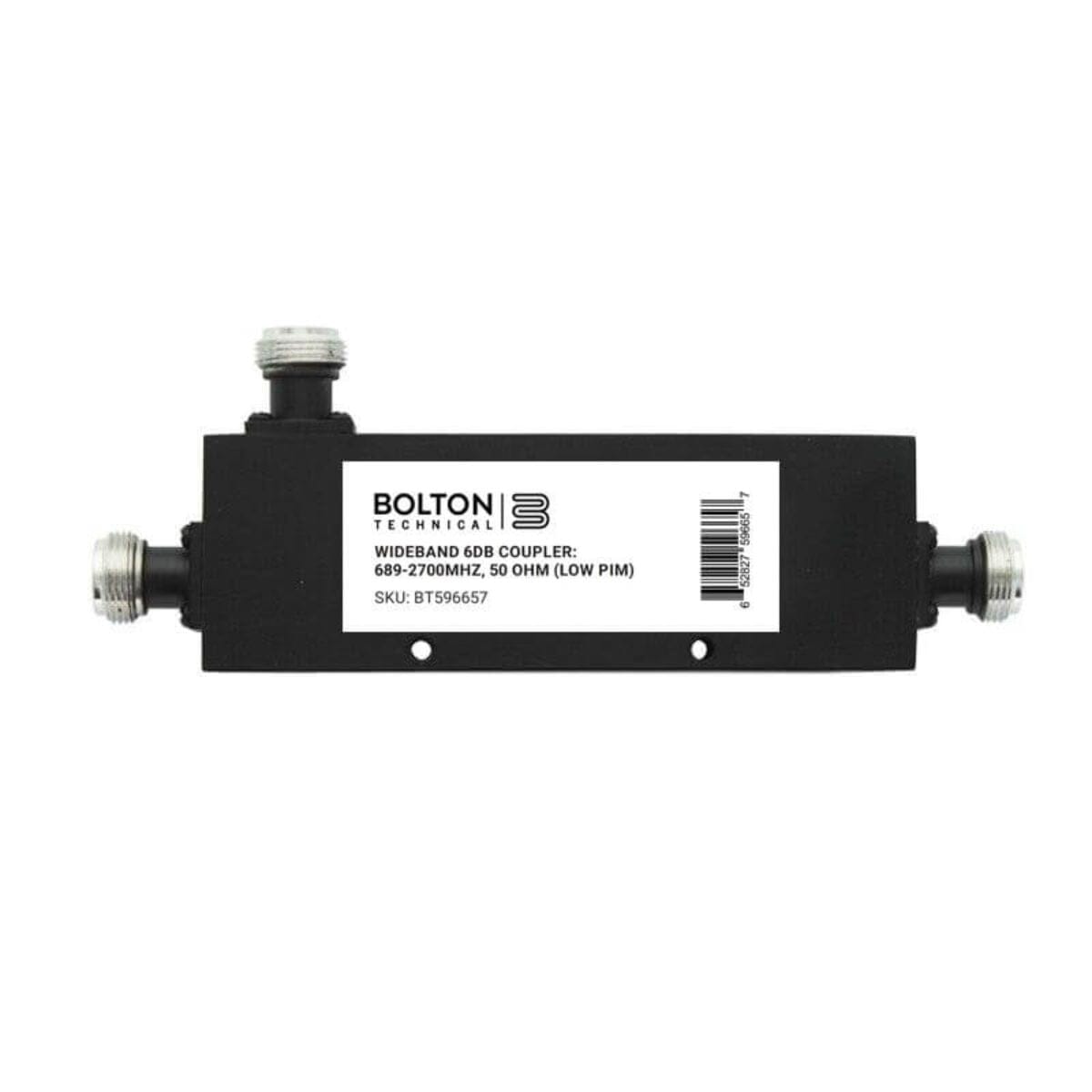

Wideband 6dB Coupler for 689-2700Mhz, 50 Ohm (Low PIM) BT512402

Wideband 6dB Coupler for 689-2700Mhz, 50 Ohm (Low PIM)

Availablity: In Stock
  • Splits signal with minimal loss
  • For 50 ohm signal boosters and accessories
  • High quality build
  • Product SKU: BT512402
R 765.00Incl. VAT

No more annoying dropped calls, poor call quality & slow Internet!

These couplers allow 2 inside antennas to be used with a single amplifier with the ability to focus more signal to a specific area. This full band coupler covers from 698MHz to 2700 MHz.


  • Low insertion loss, low VSWR
  • Covers 698 to 2700 MHz
  • High quality build
  • For 50 Ohm signal boosters and accessories

No more annoying dropped calls, poor call quality & slow Internet!

These couplers allow 2 inside antennas to be used with a single amplifier with the ability to focus more signal to a specific area. This full band coupler covers from 698MHz to 2700 MHz.


  • Low insertion loss, low VSWR
  • Covers 698 to 2700 MHz
  • High quality build
  • For 50 Ohm signal boosters and accessories
Frequency 698-2700 MHz
Insertion Loss -2.15 dB
Connectors N-female
Impedance 50 Ohm
Maximum Power 200 W
