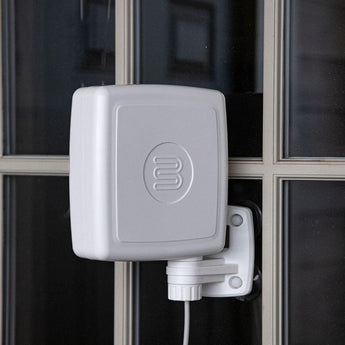

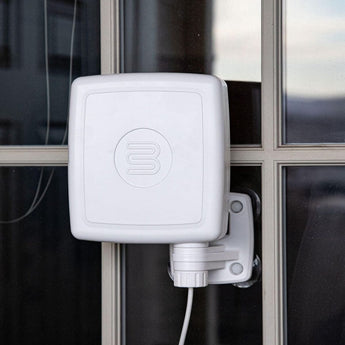

The Beacon mounted to the window side view

In stock

BT684212

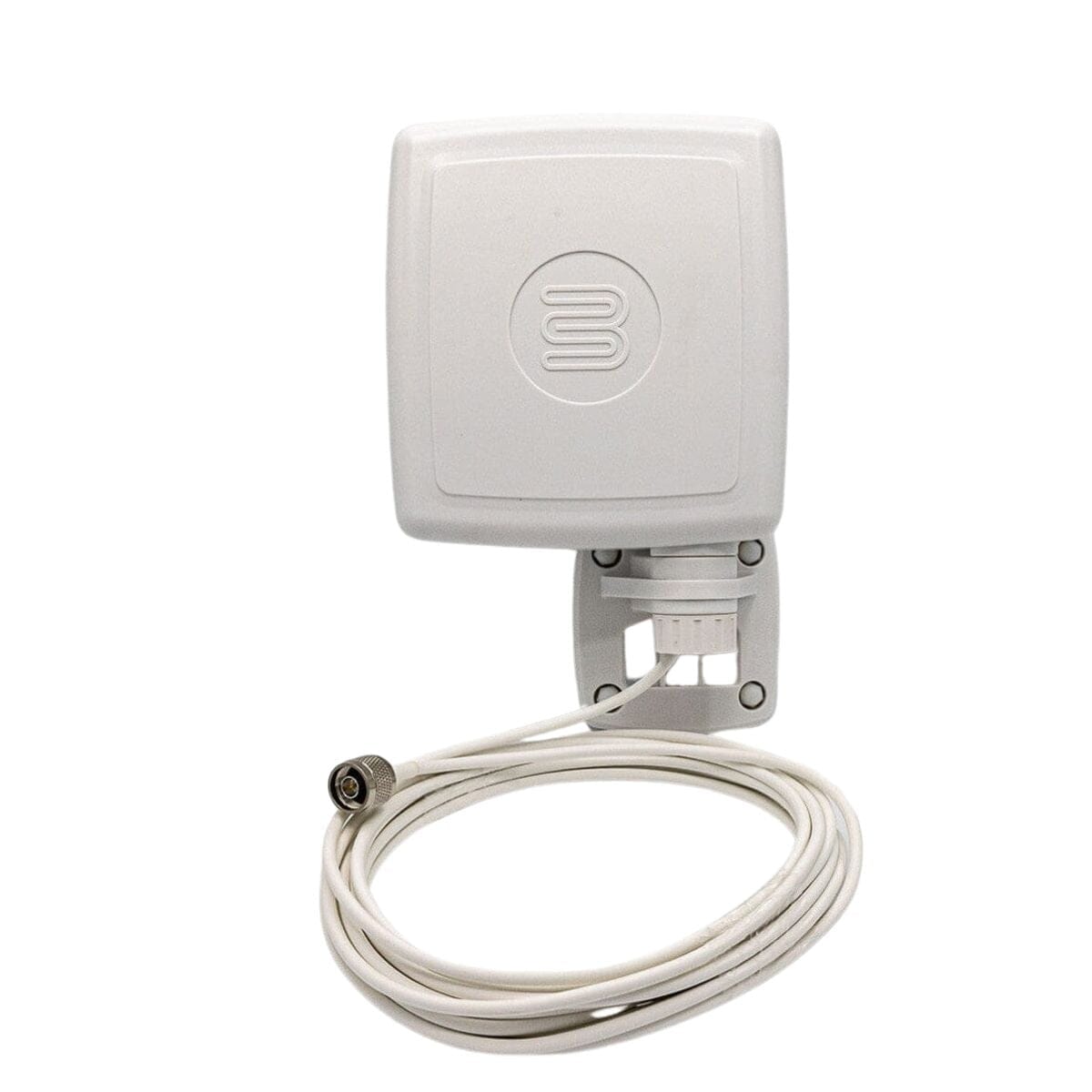

The Beacon | 5G Directional Cellular Antenna w/ Suction Cups

R 970.00

Tax included.

Quantity

Product variants

Key Features

Covers all major cellular frequencies: 698–4000 MHz
Delivers up to +7.5 dB of directional gain for stronger signal
Focused 90° beam targets towers up to 5 km away
Quick, tool-free installation on windows or masts
Compact but powerful design ideal for discreet mounting indoors or out

Technical Specifications

Frequency Ranges & Gain

698–960 MHz: Up to +4.5 dBi gain

806-960 MHz: Up to +6.05 dBi gain

1710–2700 MHz: Up to +7.5 dBi gain

3300-4000 Mhz: Up to +6 dBi gain

Beamwidth: 90° directional horizontal beamwidth

Polarisation: Vertical

VSWR: ≤2.0

Impedance: 50 Ohm

Maximum Power Input: 50 W

Connector Type: N-Female / N-Male

Range: Up to 5 km (depending on terrain and line-of-sight)

Mounting Kit: 4 Suction Mounts, Pole Mounting Bracket

Cable Length: 90cm, 1.8m or 6m

Coverage And Results

The Beacon Antenna is a compact, high-performance directional antenna designed to capture cellular signal from towers up to 5 km away, depending on line of sight and terrain. With a 90° directional beamwidth, it provides broad yet focused coverage, making it easier to align than traditional narrow-beam antennas. When used with a signal booster, the Beacon enhances indoor cellular reception across multiple rooms or small areas - perfect for apartments, lodges, remote buildings, or mobile camper setups where stronger signal is needed in a specific direction.

Pickup available at Bolton Technical Cape Town

Usually ready in 24 hours

Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For The Beacon 5G Directional Cellular Antenna w/ Suction Cups

Beacon Directional Antenna – Precision Signal Boosting, Anywhere You Need It

Looking for a powerful, 5G ready, adaptable antenna that delivers strong cellular signal - whether inside your apartment or mounted outside your home or office? The Beacon Directional Antenna is your go-to solution. Designed for ultimate versatility, the Beacon excels in urban apartments, remote farms, mobile camper setups, and commercial buildings alike - wherever strong and stable connectivity is needed.

Why choose the Beacon? This high-performance antenna offers up to +7.5 dBi gain across a wide 617–4000 MHz frequency range, supporting 4G LTE and 5G networks on all major South African carriers, including Vodacom, MTN, Cell C, and Telkom. Its directional beam focuses signal reception from a specific tower - dramatically improving data speeds, reducing dropped calls, and enhancing voice quality. Unlike omni antennas that receive signal from every direction, the Beacon locks in where it matters most: the source.

What sets the Beacon apart is its unmatched flexibility: Its sleek, compact design and included suction cup mount make it perfect for window installation in apartments, offices, and even caravans - no tools needed. With its durable IP65 weather-resistant casing and adjustable mounting bracket, it’s also built to withstand rain, wind, and extreme temperatures - making it ideal for permanent roof or pole mounts on lodges, barns, or rural homes.

Key benefits: From high-rise buildings to rugged off-grid locations, the Beacon adapts to your needs. Install with suction cups to smooth indoor surfaces, or mount it outdoors to a pole, wall, or bracket - point it toward the cell tower for best results. Works with all 50-ohm signal boosters and routers. Choose your preferred cable length and connector type for easy integration into new or existing setups.

Installation note: Swivel adjustment makes it easy to fine-tune directionality—especially valuable in challenging coverage zones. Whether you're enhancing a small space or maximizing your booster’s reach, the Beacon makes it simple and effective.

If versatility, strength, and style matter, the Beacon Directional Antenna is the perfect companion for better signal - indoors or out, urban or remote.

Frequencies & Gains

Frequency	Gain
617–806 MHz	+4.5 dB
806–960 MHz	+6.0 dB
1710–2700 MHz	+7.5 dB
3300–4000 MHz	+6.0 dB
VSWR	≤2.0
Impedance	50 Ohm
Mounting Kit	4 Suction Mounts, Pole Mounting Bracket
Connectors	N-Type (F/M)
Radome Material	ABS, White
Water Resistance	IP65 Rated
Dimensions	165 x 155 x 50 mm
Weight	0.8 kg
Coax Length	6m or 1.8m
Coax Type	RG174

Download Spec Sheet

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R60
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R90
Bulky Items (15kg+)	R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R90
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R150
Bulky Items (15kg+)	R350

Regional Delivery

Weight	Rate (ZAR)
0–2kg	R120
2–5kg	R150
5–10kg	R220
15kg+	R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

Items must be unmodified, in original condition, and include all accessories.
Original packaging and proof of purchase are required.
Returns that are not in original condition and packaging may be subject to a handling fee.
The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
Products purchased on promotion or clearance can only be returned within 5 days of receipt.
Express shipping fees are non-refundable.

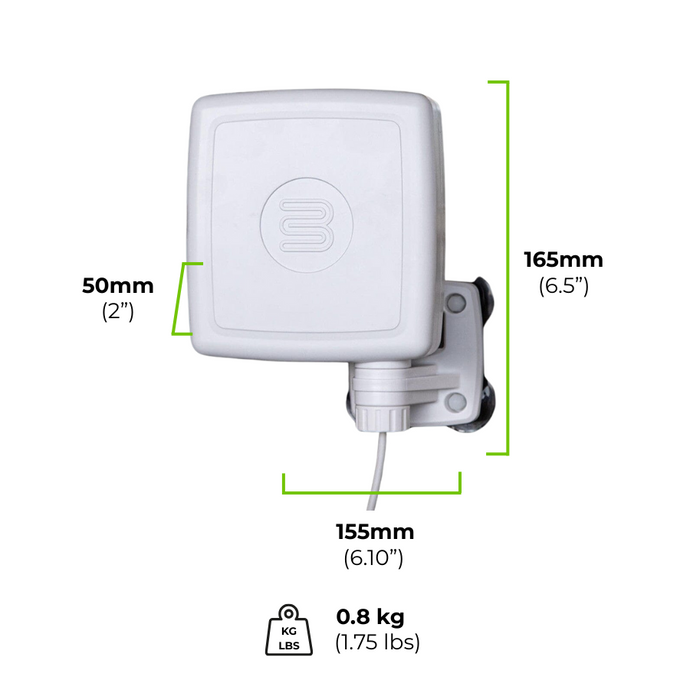

Product Dimensions

Weight 0,8 KG

165mm L x 155mm W x 50mm D

Product FAQ

1 What makes the Beacon 5G antenna different from a standard antenna?

The Beacon is a two-way, directional antenna that covers a wide frequency range (617–4000 MHz) and offers up to +7.5 dBi gain. This makes it ideal for 4G LTE and 5G signal boosting, outperforming simple omni-directional factory antennas.

2 Where and how should I install the Beacon for best performance?

It features a suction-cup mount that allows no-tool installation on windows or smooth surfaces—perfect for apartments, RVs, or temporary setups. Alternatively, you can secure it to a pole or wall. The adjustable swivel lets you point the antenna toward the nearest cell tower for optimal reception.

3 Which cable and connector options are available?

Three configurations cater to different situations:

The 90cm pigtail with N‑Female for custom setups

1.8m cable with N‑Female for outdoor installations

6m cable with N‑Male for indoor routing

It uses 50 Ohm impedance and standard N‑type connectors compatible with most cell signal
boosters.

4 Is the Beacon suitable for outdoor use and tough weather?

Yes—the radome is ABS (white) and the unit is rated IP65 for resistance to dust and water jets. It also functions down to –55 °C and up to +60 °C, making it suitable for a wide range of climates.

5 What devices is the Beacon compatible with?

This 50 Ohm, wideband antenna works seamlessly with the WilsonPro A500 and A1000 cell signal boosters. It's compatible with all South African carriers - including Vodacom, MTN, Cell C, Telkom & Rain - supporting both 4G and 5G frequencies.
