The Sector - High Gain Outdoor Panel Antenna Outdoor Antennas Bolton Technical South Africa

In stock

BT684250

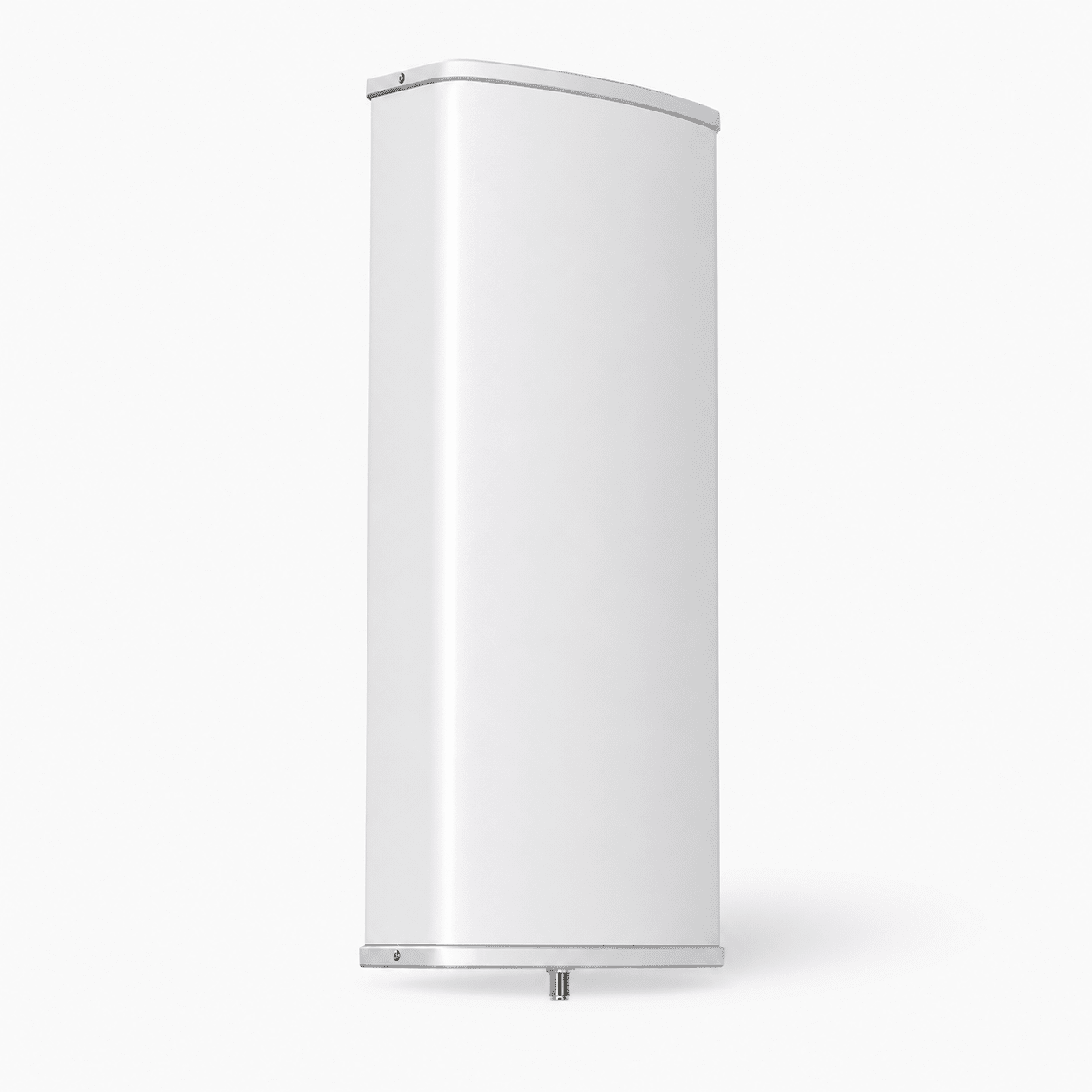

The Sector - High Gain Outdoor Panel Antenna

Name: The Sector - High Gain Outdoor Panel Antenna
Brand: Bolton Technical South Africa
SKU: BT684250
Price: 6500.00 ZAR
Availability: InStock

~~R 12,500.00~~ R 6,500.00 Save 48%

Tax included.

Quantity

Product variants

Key Features

Provides extensive coverage for vast outdoor applications.
Spans 698MHz to 2170MHz for wideband connectivity.
Up to 14dBi Gain, ensuring robust signal strength.
Vertical Polarisation, 65 degree beamwidth

Technical Specifications

Frequency Ranges & Gains

698–824 MHz: +10.5 dB gain

825-960 MHz: +12 dB gain

1710–2170 MHz: +15 dB gain

Polarization: Vertical

VSWR: ≤ 1.5

PIM, 3rd Order, 2 × 43 dBm: ≤ -150 dBc

Impedance: 50 Ohm

Maximum Power Input: 100 W

Connector Type: 1 × 7/16 DIN Female (underneath)

Radome Material & Colour: UPVC, RAL7035

Coverage And Results

The BT684250 High Gain Outdoor Sector Antenna delivers long-range, targeted signal coverage with a 65° horizontal beamwidth – ideal for outdoor environments where signal needs to be distributed across a defined sector. Perfect for building rooftops, rural farms, mining operations, warehouses, and remote industrial facilities.

When paired with a compatible 50-ohm signal booster, users have experienced:

Significant signal strength improvements – for example, from -110 dB to -70 dB.
Stronger uplink performance, keeping devices connected even in challenging terrain or fringe coverage areas.
Improved communication and productivity across expansive work sites.

With up to 14 dBi gain on higher bands and a rugged, weatherproof design, the BT684250 Sector Antenna ensures stable, high-quality coverage – even in harsh South African outdoor conditions.

Pickup available at Bolton Technical Cape Town

Usually ready in 24 hours

Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For The Sector - High Gain Outdoor Panel Antenna

High Gain Outdoor Sector Antenna – Powerful, Targeted Wide-Area Coverage

Need robust, reliable cellular coverage for large outdoor areas? The BT684250 High Gain Outdoor Sector Antenna delivers strong, focused signal reception with a 65° horizontal beamwidth – perfect for boosting connectivity across commercial sites, industrial complexes, farms, and multi-building campuses in South Africa.

Why choose this sector antenna?

Unlike narrow-beam directional antennas, this model balances reach and coverage. Its sector design efficiently targets a defined area, capturing signals from towers several kilometres away while covering multiple endpoints within that beam. With up to 14 dBi gain across key cellular bands (698 MHz to 2170 MHz) and a low VSWR of ≤ 1.5, it provides a rock-solid foundation for any signal booster or network system.

Key Benefits: 11 dBi at 698–960 MHz and 14 dBi at 1710–2170 MHz for excellent reach and signal quality. Weatherproof UPVC radome (RAL7035) with UV protection for long-term outdoor reliability. Install on poles, masts, or walls to suit your site layout. Withstands temperatures from -40 °C to +60 °C and humidity from 5% to 95%. Works with all major 50-ohm cellular boosters for improved data speeds, call clarity, and connection stability.

Whether it’s for rural internet, industrial connectivity, or enhancing mobile coverage across large outdoor areas, the BT684250 Sector Antenna is your dependable choice for strong, consistent signal performance – even in challenging environments.

Frequencies & Gains

Frequency Range	Max Gain
698–824 MHz	11 dBi
825–960 MHz	11 dBi
1710–2170 MHz	14 dBi
VSWR	≤ 1.5
Polarization	Vertical
PIM, 3rd Order, 2 × 43 dBm	≤ -150 dBc
Maximum Power Output	100 W
Impedance	50 Ohm
Connector Type	1 × 7/16 DIN Female (underneath)
Dimensions (mm)	H 1200 × W 280 × D 125
Weight	6.5 kg (without mounting kit)
Operational Temperature	-40°C to +60°C
Radome Material & Color	UPVC, RAL7035
Operational Humidity	5–95%

Download Spec Sheet

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R60
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R90
Bulky Items (15kg+)	R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R90
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R150
Bulky Items (15kg+)	R350

Regional Delivery

Weight	Rate (ZAR)
0–2kg	R120
2–5kg	R150
5–10kg	R220
15kg+	R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

Items must be unmodified, in original condition, and include all accessories.
Original packaging and proof of purchase are required.
Returns that are not in original condition and packaging may be subject to a handling fee.
The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
Products purchased on promotion or clearance can only be returned within 5 days of receipt.
Express shipping fees are non-refundable.

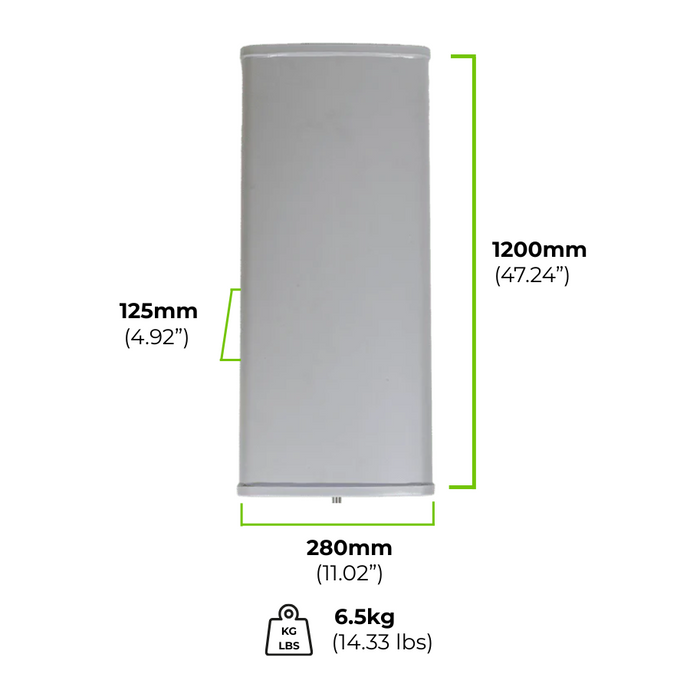

Product Dimensions

Weight 6,5 KG

1200mm L x 280mm W x 125mm D

Product FAQ

1 What type of installation is the Sector antenna best suited for?

The Sector antenna is ideal for fixed installations on buildings, warehouses, or similar structures. Its directional design makes it perfect for tower farms and suburban edge zones.

2 What frequency bands does the Sector antenna cover?

It supports a wide range of frequencies:

Low Band: 617–960 MHz

Mid Band: 1710–2170 MHz

This makes it compatible with most 2G, 3G, and 4G LTE networks in South Africa.

3 How is the Sector Antenna mounted?

The antenna comes with a pole mounting bracket and is designed for permanent outdoor installation. It should be mounted at an elevated location, ideally facing the nearest cell tower, and slightly tilted downward for optimal coverage.

4 What type of signal gain does the Sector Antenna provide?

The antenna offers:

+11 dBi gain on lower bands

+14 dBi gain on mid bands (up to 2170 MHz)

This high gain allows it to capture weak cell signals over long distances.

5 Is the Sector Antenna weatherproof?

Yes. The Sector Antenna is IP65 rated, meaning it’s dust-tight and protected against heavy rain and water jets. The fiberglass radome ensures durability in extreme outdoor conditions.
