Bolton Single Panel Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical components

Bolton Single Panel Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical wall mount panel antenna

Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical connector

Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical cable

Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical wideband 2-wat splitter

In stock

EXPANSIONKIT1

Bolton Single Panel Antenna Expansion Kit 50 Ohm

Name: Bolton Single Panel Antenna Expansion Kit 50 Ohm
Brand: Bolton Technical
SKU: EXPANSIONKIT1
Price: 1380.00 ZAR
Availability: InStock

R 1,380.00

Tax included.

Quantity

Product variants

Key Features

Ideal for Targeted Coverage Expansion
Easy DIY Setup, Professional Results
Comprehensive Installation Kit - ready to integrate seamlessly with your existing booster setup.
Delivers focused, directional signal with up to +8 dB gain

Technical Specifications

Frequency Range:

698–960 MHz: +5 dBi

1710–2700 MHz: +8 dBi

Impedance: 50 Ohm

Connector Type: N-Female

Radiation Pattern: Directional (Wall-Mount Panel)

Polarization: Vertical

VSWR: ≤ 1.5

Power Handling: 50W

Kit Includes: 4G Wall-Mount Panel Antenna, 2-way splitter, Bolton400 (15m and 1.5m) coaxial cables for indoor antenna expansion.

Coverage And Results

The Bolton Single Panel Expansion Kit is designed to add an additional 150–250 m² of boosted indoor coverage, depending on your building’s layout and signal strength from the booster. In environments with multiple rooms, thick walls, or long corridors, the directional panel antenna excels at pushing signal forward into hard-to-reach zones. Typical use cases include expanding signal into reception areas, private offices, lower-level rooms, or warehouse wings. Users can expect noticeably better voice clarity, reduced dropped calls, and faster data speeds in areas that previously had minimal or no signal.

Pickup available at Bolton Technical Cape Town

Usually ready in 24 hours

Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Bolton Single Panel Antenna Expansion Kit 50 Ohm

Bolton Single Panel Expansion Kit – Expand Signal Reach in Problematic Indoor Spaces

Struggling to get strong signal in that back office, storeroom, or across multiple floors? The Bolton Single Panel Expansion Kit is designed to extend your indoor cellular coverage exactly where you need it - ideal for homes, offices, warehouses, medical centres, and commercial buildings in South Africa where thick walls, long corridors, or dense layouts block signal from your main indoor antenna.

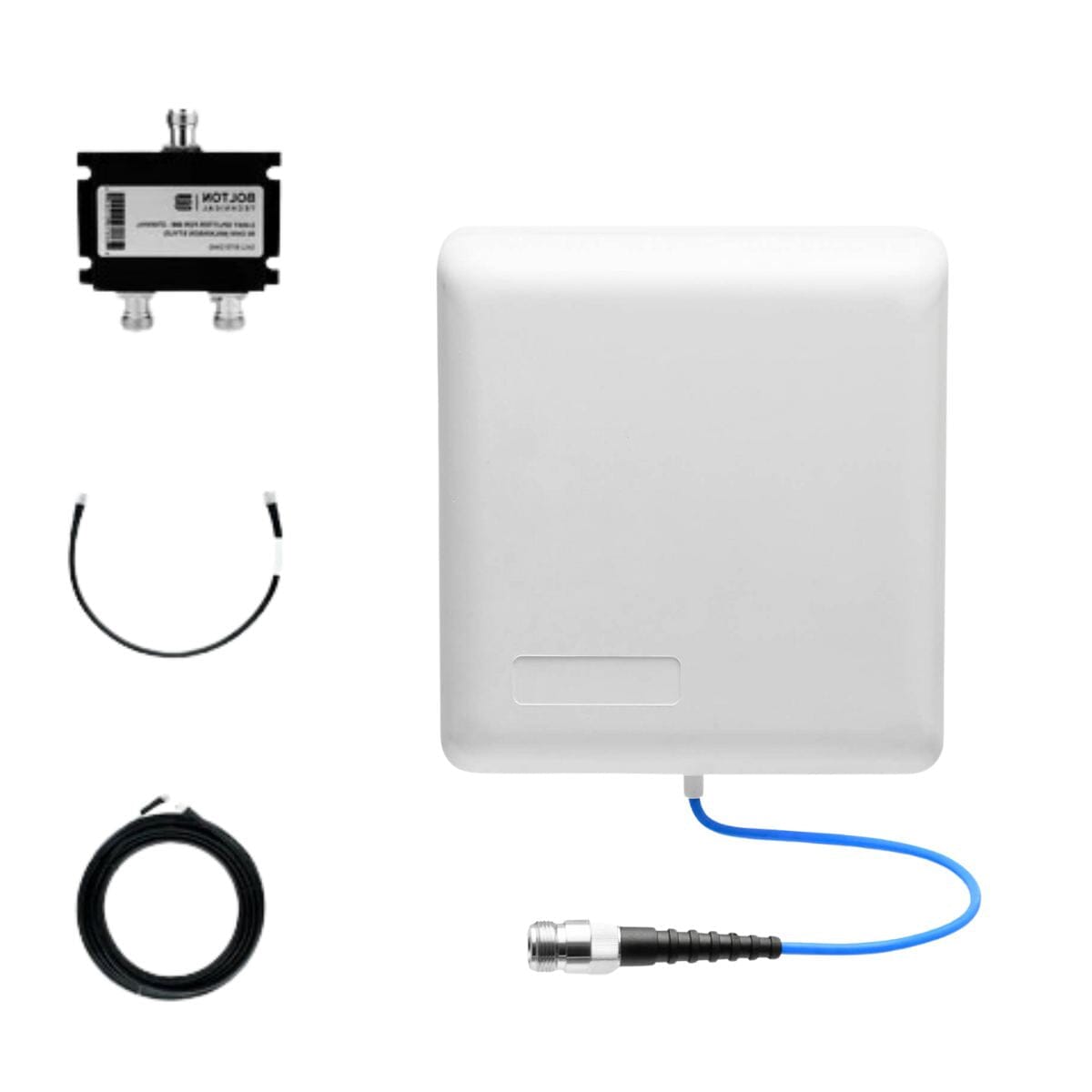

What's in the Kit: The Bolton Single Panel Antenna Kit, is the indoor antenna expansion kit featuring:

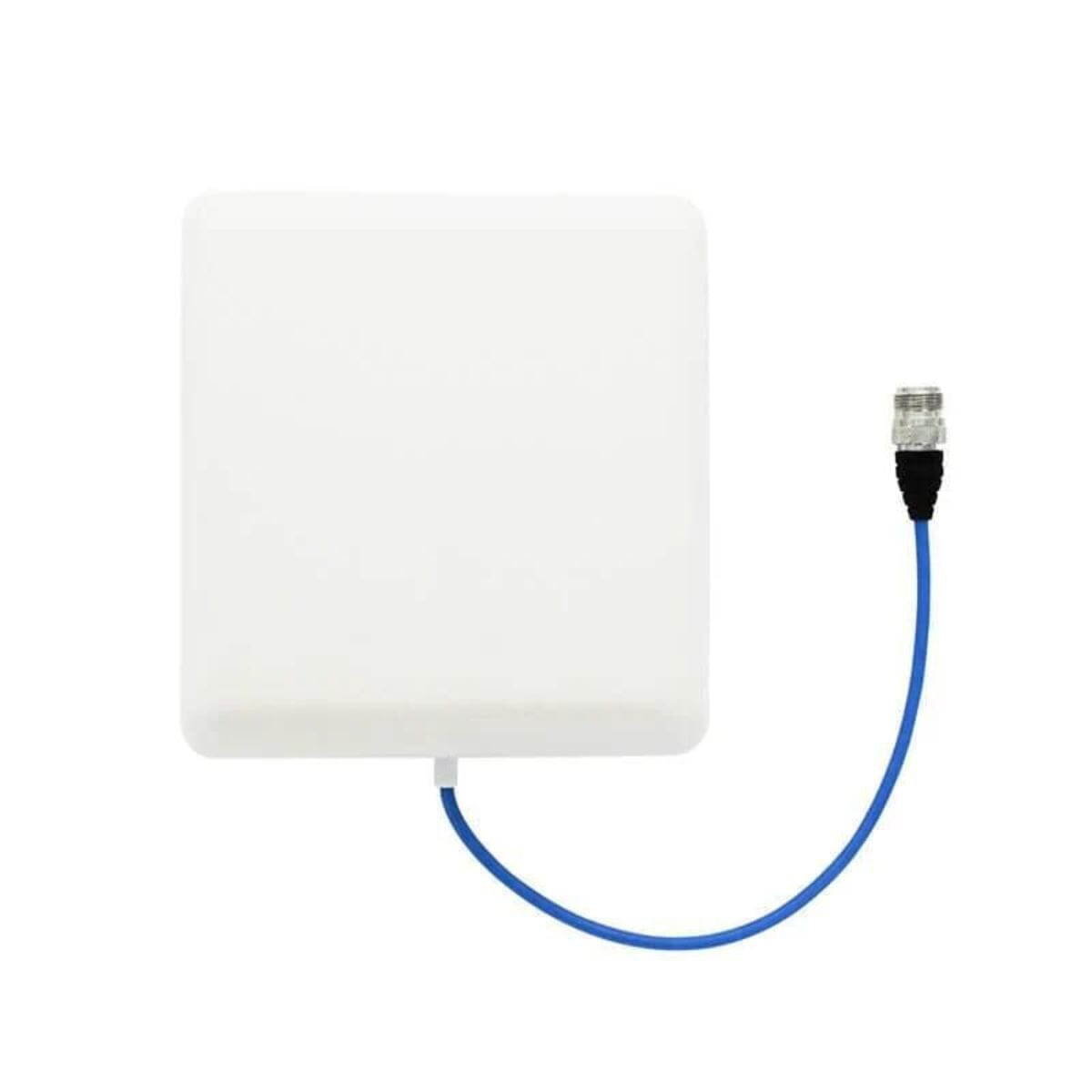

Wall-Mount Panel Antenna
2-way splitter
LMR400 (15m and 1m) for an indoor antenna installation crimped with N-Male connectors

Why choose a Panel Expansion Kit? The powerful, directional wall-mount panel antenna included in this kit pushes signal further and deeper into targeted zones that your primary antenna may not reach. Unlike dome antennas that radiate in all directions, the panel antenna focuses boosted signal forward in a wide beam - perfect for long hallways, large rooms, or specific areas of high demand.

This kit includes a 2-way splitter and two lengths of Bolton400 low-loss coaxial cable (15m + 1m), ensuring seamless integration into your existing signal booster setup. You’ll maintain strong, consistent signal throughout your space - with faster data speeds, clearer voice calls, and improved reception in those stubborn dead zones.

Key Benefits: Focuses amplified signal in a specific direction, ideal for spaces with partition walls, floors, or signal interference. Easily integrates with your current signal booster system using the included splitter and Bolton400 coax cables. Adds up to 150–250 m² of additional indoor coverage depending on building layout and signal strength. Built with professional-grade, 50-ohm components - compatible with WilsonPro in-building cell signal booster systems.

Installation Note: Mount the panel antenna high on a wall facing the area that needs signal. Run the cables to the splitter and connect it to your booster. Simple setup, big results. A must-have for multi-room, multi-floor signal solutions across South Africa’s diverse building environments.

If your current indoor antenna setup isn’t reaching all the areas that matter - the Bolton Single Panel Expansion Kit is the most effective way to close the gap and unlock reliable indoor cellular coverage across your property.

Frequencies & Gains

SKU	Expansion Kit 2
698 – 960 MHz 1700 – 2700 MHz	+7 dBi +8 dBi
Max Gain	+8 dBi
Input Impedance	50 Ohm
Polarization Type	Vertical
Connector Type	N-Female
Radiation	Omni-Directional
Max Power Output	50 W
Weight of Kit	0.86 kg

Download Spec Sheet

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R60
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R90
Bulky Items (15kg+)	R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R90
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R150
Bulky Items (15kg+)	R350

Regional Delivery

Weight	Rate (ZAR)
0–2kg	R120
2–5kg	R150
5–10kg	R220
15kg+	R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

Items must be unmodified, in original condition, and include all accessories.
Original packaging and proof of purchase are required.
Returns that are not in original condition and packaging may be subject to a handling fee.
The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
Products purchased on promotion or clearance can only be returned within 5 days of receipt.
Express shipping fees are non-refundable.

Product Dimensions

Weight 0,86 KG

165mm L x 155mm W x 50mm D

Product FAQ

1 What is the Bolton Single Panel Expansion Kit used for?

This kit adds an extra indoor antenna to your existing cellular signal booster setup, expanding coverage to additional rooms or floors that are not effectively reached by the primary antenna.

2 Is professional installation required for this kit?

Not necessarily. If you're comfortable with DIY setups, this expansion kit is easy to install with basic tools. However, for optimal placement, cable routing, and performance - especially in large or complex spaces - professional installation is recommended.

3 Will this affect the performance of my main antenna?

Only slightly. When using a splitter, the signal from the booster is shared between antennas. However, the benefit of reaching more areas typically outweighs the minimal signal reduction, especially with strong outdoor signal input.

4 Where should I install the panel antenna?

Mount it high on a wall facing the area that needs signal. Ideal locations include long hallways, far-end offices, retail floors, or basements.

5 Can I use more than one expansion kit with my booster system?

Yes, depending on the strength of your outdoor signal and the power of your booster. If your system supports it, you can use multiple expansion kits with a multi-way splitter to cover several areas. Just be mindful that each added antenna divides the signal, so it's best to consult with our team for optimal setup.
