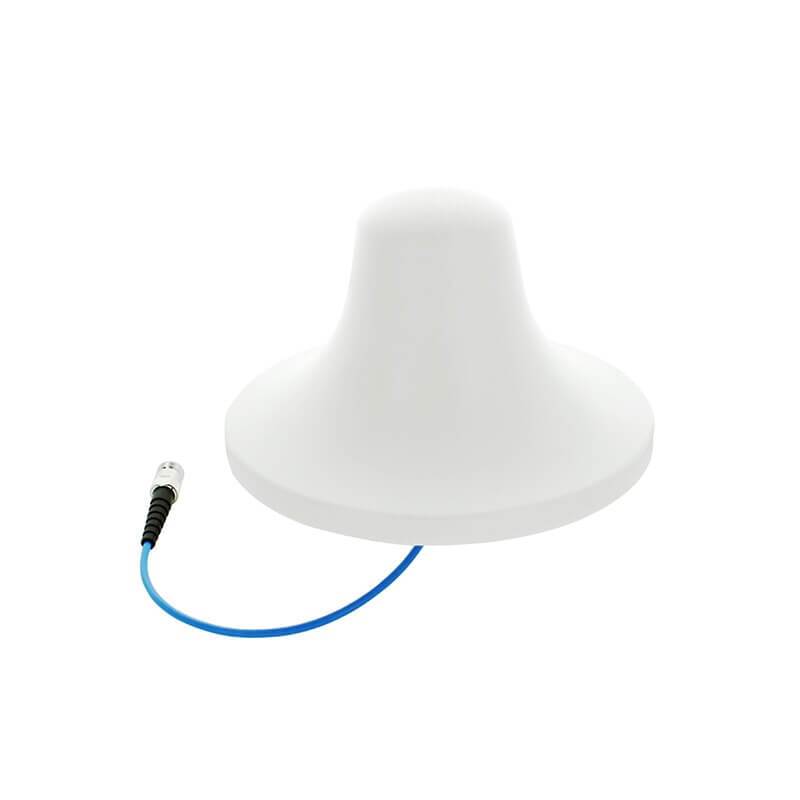

4G Ceiling Mount Dome indoor Antenna 50 Ohm, PIM 140dB side view with cable

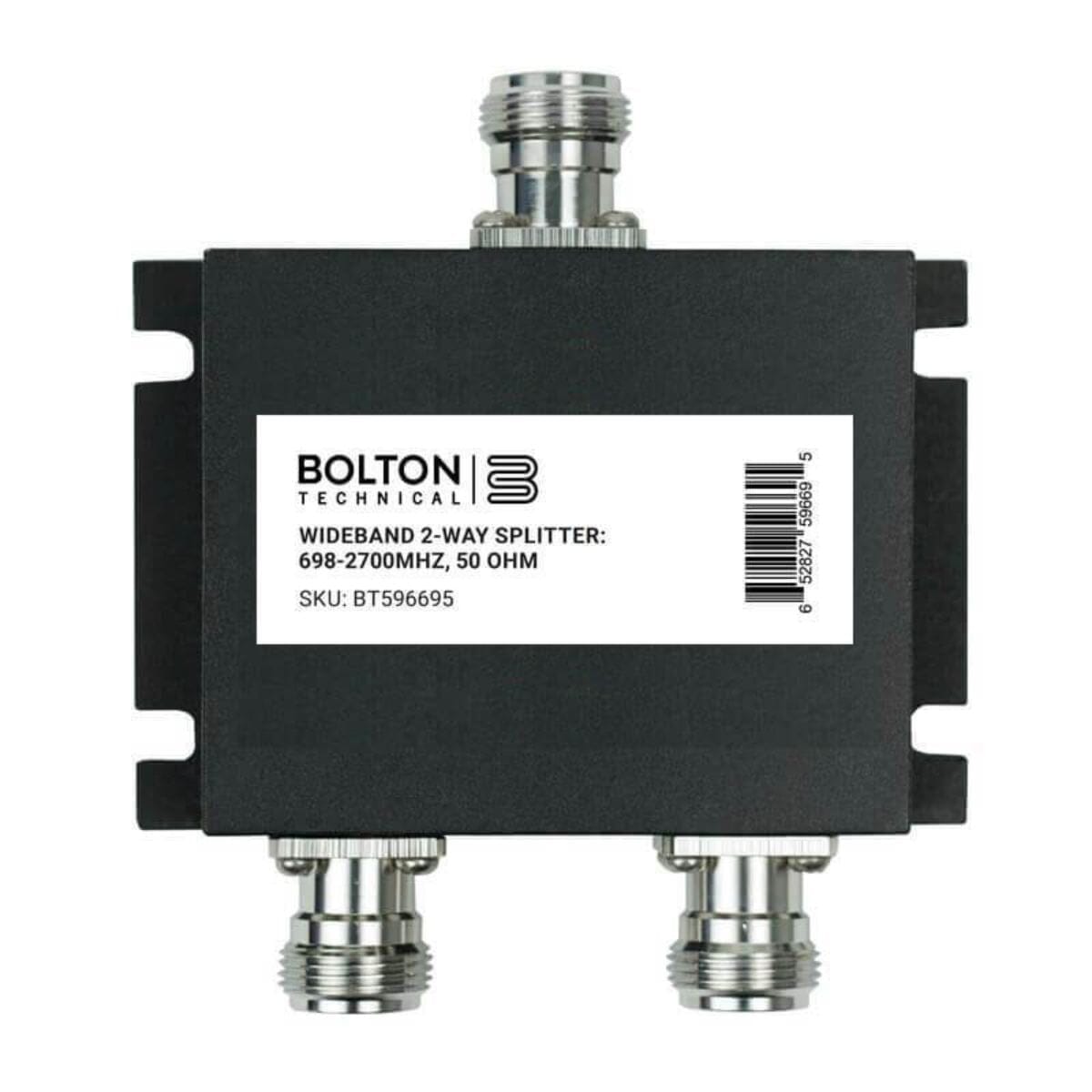

Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical wideband 2-wat splitter

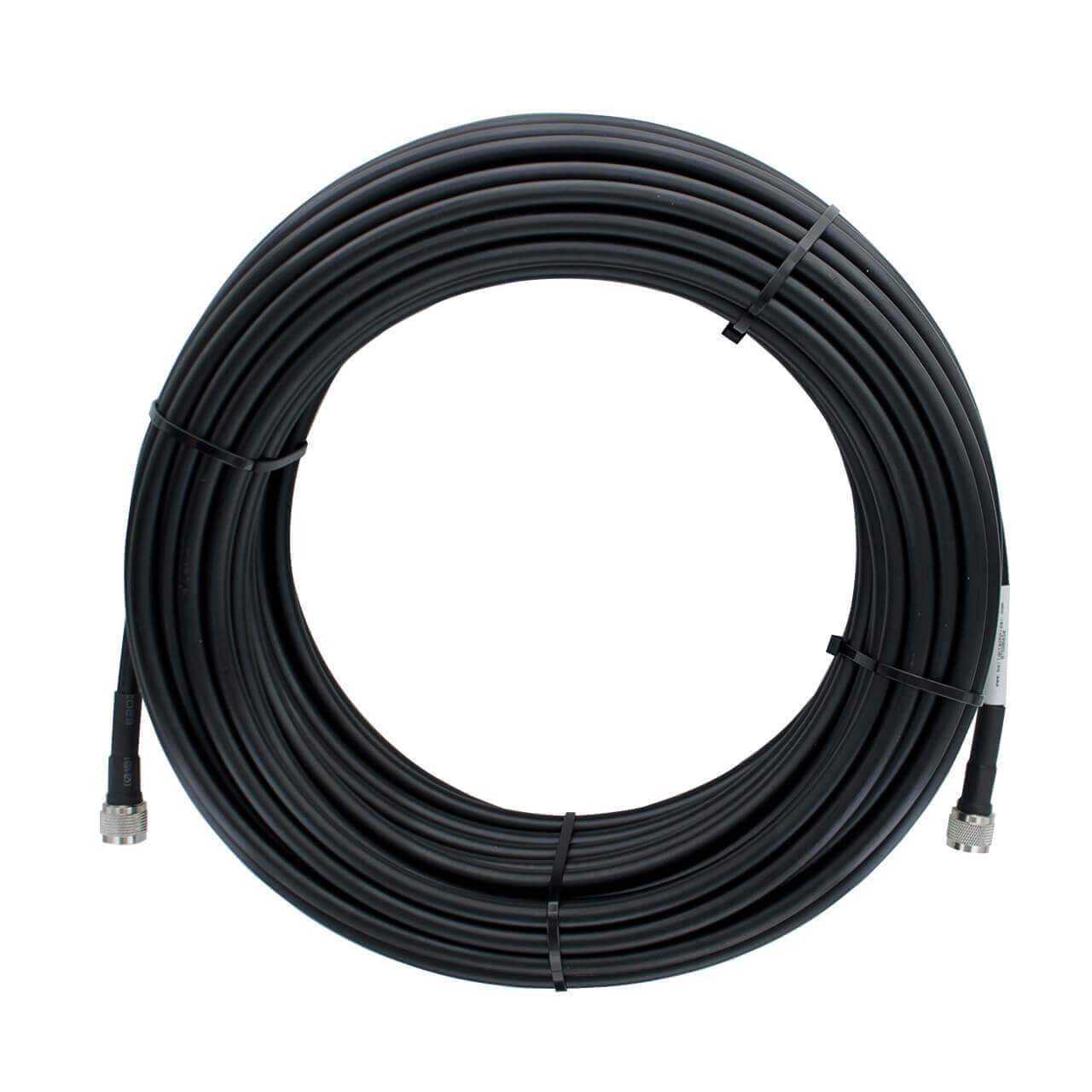

Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical cable

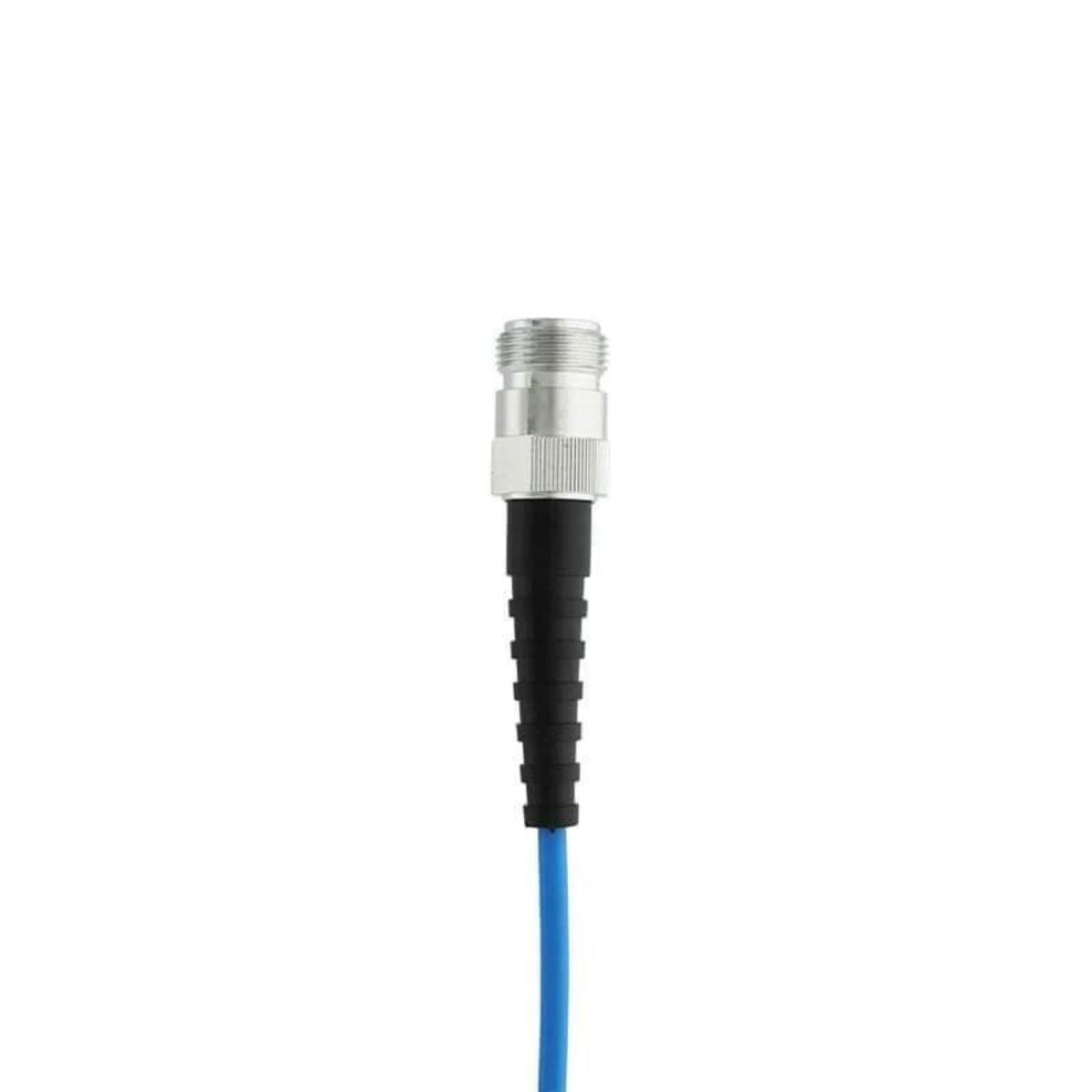

Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical connector
Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical main
4G Ceiling Mount Dome indoor Antenna 50 Ohm, PIM 140dB side view with cable
Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical wideband 2-wat splitter
Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical cable
Bolton Single Dome Antenna Expansion Kit 50 Ohm Expansion Kits Bolton Technical connector
In stock
BT512952

Bolton Single Dome Antenna Expansion Kit 50 Ohm

R 1,340.00
Tax included.
Key Features
  • Seamless Indoor Expansion – Add coverage to additional rooms or floors without replacing your existing setup.
  • Professional-Grade Dome Antenna – 360° radiation pattern for even indoor signal distribution.
  • Low-Loss Cable and Splitter Included – Comes ready with Bolton400 cable and a 2-way splitter for easy integration.
  • WilsonPro Signal Booster Compatible – Works with all major 50-ohm WilsonPro in-building signal boosters.
Technical Specifications

Frequency Range:

698–2700 MHz: +2 dBi

1710–2700 MHz: +5 dBi


Impedance: 50 Ohm

Connector Type: N-Female

Radiation Pattern: Omnidirectional (Ceiling-Mount Dome)

Polarization: Vertical

VSWR: ≤ 2.0

Power Handling: 50W

Environment: Indoor use only

Kit Includes: 4G Ceiling Mount Dome Antenna, 2-way splitter, LMR400 (15m and 1m) for an indoor antenna installation.
Coverage And Results

When connected to a functioning signal booster, the Bolton Dome Expansion Kit helps deliver boosted signal into areas that the original indoor antenna cannot reach. With professional-grade components and low-loss cabling, users typically experience stronger signal bars, better data speeds, and consistent reception in newly covered zones - especially across partitioned spaces or tricky building layouts.

Pickup available at Bolton Technical Cape Town

Usually ready in 24 hours

  • Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Bolton Single Dome Antenna Expansion Kit 50 Ohm

Bolton Single Dome Antenna Expansion Kit – Expand Your Indoor Coverage Where It Counts

Need to boost cellular signal in more rooms or on another floor? The Bolton Single Dome Antenna Expansion Kit is the smart solution for extending indoor coverage - ideal for South African offices, homes, offices, warehouses, and commercial buildings where one antenna isn’t enough to get the job done.

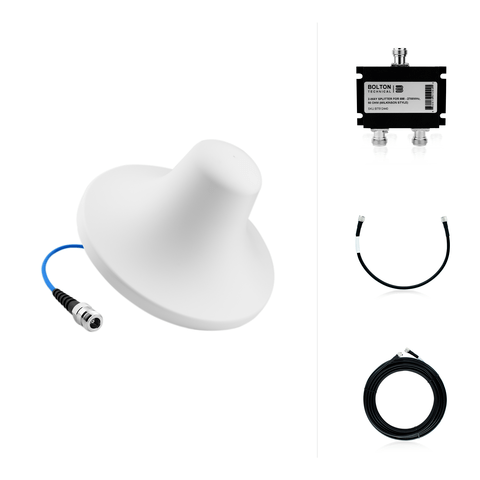

What's in the Kit: The Bolton Single Dome Antenna Kit, is the indoor antenna expansion kit featuring:

  • 4G Ceiling Mount Dome Antenna
  • 2-way splitter
  • LMR400 (15m and 1m) for an indoor antenna installation crimped with N-Male connectors

Why choose a Dome Expansion Kit? While your current booster setup may work well in one area, buildings with thick walls, split layouts, or multiple floors often need more than a single antenna to deliver reliable signal throughout. This all-in-one expansion kit includes a professional-grade dome antenna, ultra-low loss Bolton400 coaxial cable, and a 2-way splitter - everything you need to distribute boosted signal further indoors and eliminate frustrating dead zones.

With its discreet ceiling-mounted design, the dome antenna radiates signal in a 360-degree pattern, ensuring consistent coverage across open spaces, hallways, and rooms. Whether you’re covering a new wing, expanding operations, or just solving patchy reception, this kit delivers dependable indoor performance where it matters most.

Key Benefits: The Bolton Dome Expansion Kit makes it easy to scale your existing system without compromise. Add coverage in hard-to-reach zones, reduce dropped calls, and improve voice clarity and data speeds across your building — all while maintaining the integrity of your original installation.

This kit is fully compatible with all 50-ohm cell signal boosters and installs cleanly with minimal fuss. The included components are built to deliver low-loss, high-efficiency performance for reliable, professional-grade coverage.

Whether you're managing a growing office or boosting bars in your home’s dead spots, the Bolton Single Dome Antenna Expansion Kit is your go-to solution for complete indoor signal coverage.

Installation Note: Expanding your coverage is simple - just mount the dome antenna to the ceiling in your target area, run the Bolton400 cable back to your splitter, and integrate it into your existing booster system. You’ll be up and running with improved coverage in no time. It’s a clean, scalable upgrade that pays off in better connectivity across every corner of your space.

If your building has tricky layouts, multiple floors, or thick walls blocking signal, this kit gives your booster the reach it needs - turning isolated coverage into full, usable signal across your entire environment.

Frequencies & Gains

SKU EXPANSIONKIT1

698 – 960 MHz
1700 – 2700 MHz

+2 dBi
+5 dBi
Max Gain +5 dBi
Input Impedance 50 Ohm
Polarization Type Vertical
Connector Type N-Female
Radiation Omni-Directional
Max Power Output 50 W
Weight of Kit
 0.86 kg

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R60
R750 or less (2–5kg)R90
R750 or less (5–10kg)R90
Bulky Items (15kg+)R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / WeightRate (ZAR)
R750 or moreFree
R750 or less (0–2kg)R90
R750 or less (2–5kg)R90
R750 or less (5–10kg)R150
Bulky Items (15kg+)R350

Regional Delivery

WeightRate (ZAR)
0–2kgR120
2–5kgR150
5–10kgR220
15kg+R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

  • Items must be unmodified, in original condition, and include all accessories.
  • Original packaging and proof of purchase are required.
  • Returns that are not in original condition and packaging may be subject to a handling fee.
  • The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
  • Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
  • Products purchased on promotion or clearance can only be returned within 5 days of receipt.
  • Express shipping fees are non-refundable.
Dome_Dimensions

Product Dimensions

Weight 0,86 KG

210mm L x 210mm W x 110mm D

Product FAQ

1 What is the Bolton Dome Expansion Kit used for?

The kit is used to expand indoor coverage in buildings where a single indoor antenna doesn't provide enough reach.
2 Can I use this expansion kit with any booster?

It is compatible with all our range of WilsonPro A500 and A1000 In-Building cell signal boosters
3 How do I install the Dome Expansion Kit?

Mount the dome antenna to the ceiling, connect it via Bolton400 cable to the included 2-way splitter, and integrate it with your existing booster setup.
4 Will this kit help with signal on a different floor?

Yes. It's ideal for multi-storey buildings or spreading signal to rooms blocked by thick walls.
5 What type of coverage can I expect with this expansion?

It can cover an additional 150–250 m² depending on signal strength, layout, and interference factors.
