4G Low-Profile Dome Antenna, 50 Ohm, PIM 153dB (NO REFLECTOR) BT512358
Bolton Technical

4G Low-Profile Dome Antenna, 50 Ohm, PIM 153dB (NO REFLECTOR)

Add Your Review
Availablity: In Stock
  • Indoor omni-directional 4G antenna
  • Covers cellular bands and WiFi from 608 through 2700 MHz.
  • Plenum rated pig-tail cable
  • RoHS compliant, high efficiency and compact design
  • Up to +6dB gain.
  • Product SKU: BT512358
R 1,639.00Incl. VAT

No more annoying dropped calls, poor call quality & slow Internet!

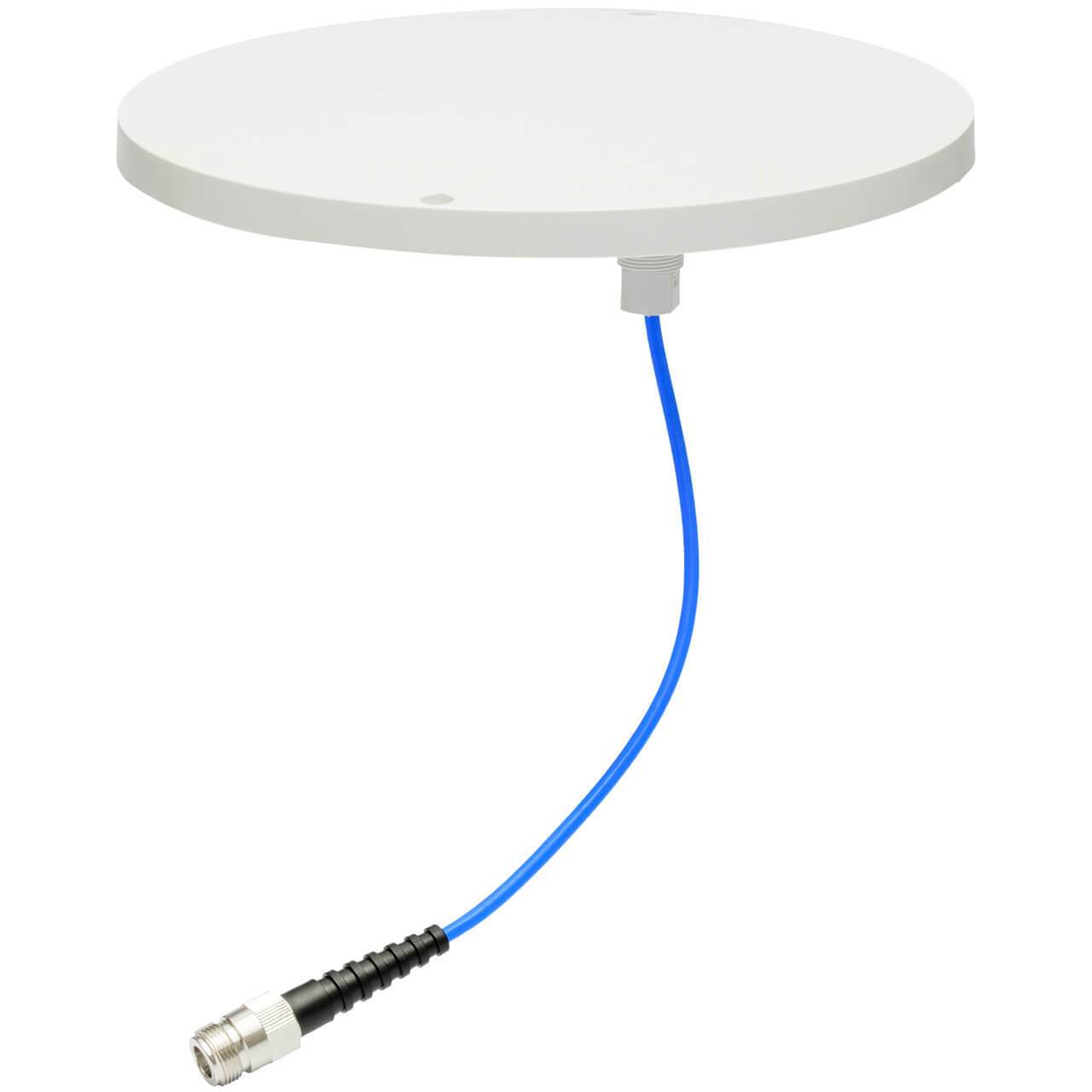

The 4G Low-Profile Dome Antenna is a 50 Ohm indoor, ceiling-mount antenna used to broadcast boosted 3G & 4G LTE signals from a cellular signal booster. Its powerful wide-band coverage features up to +6 dB gain. Great for open office spaces and general coverage.


  • Ultra-thin, white radome.
  • RoHS compliant, high efficiency and compact design.
  • Plenum rated pig-tail cable with N-female connector.
  • Covers cellular bands and WiFi from 608 through 2700 MHz.
  • up to +6 dB gain.

No more annoying dropped calls, poor call quality & slow Internet!

The 4G Low-Profile Dome Antenna is a 50 Ohm indoor, ceiling-mount antenna used to broadcast boosted 3G & 4G LTE signals from a cellular signal booster. Its powerful wide-band coverage features up to +6 dB gain. Great for open office spaces and general coverage.


  • Ultra-thin, white radome.
  • RoHS compliant, high efficiency and compact design.
  • Plenum rated pig-tail cable with N-female connector.
  • Covers cellular bands and WiFi from 608 through 2700 MHz.
  • up to +6 dB gain.

Frequencies & Gains

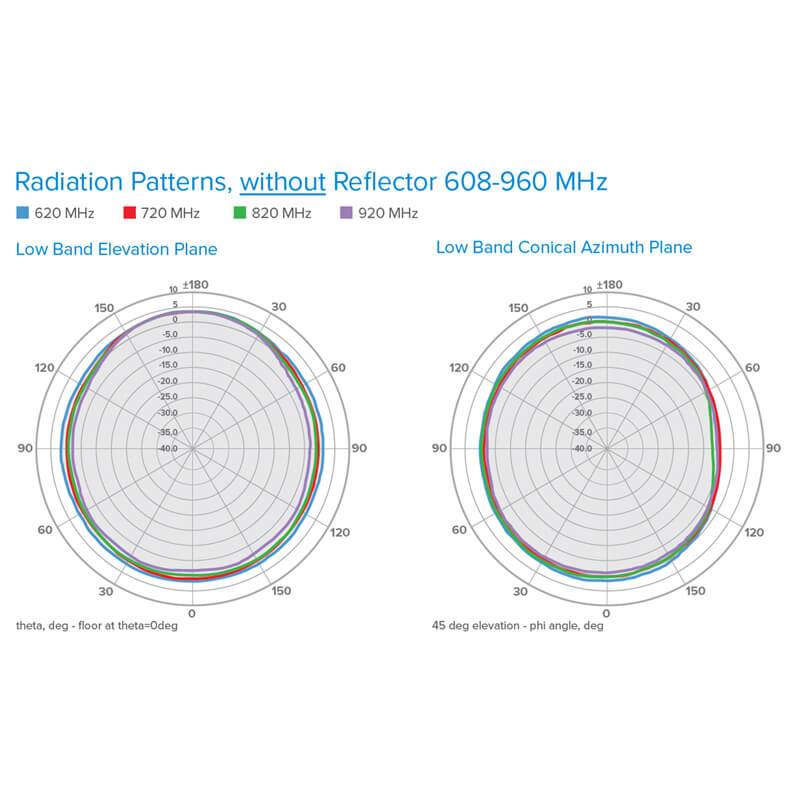

608 - 960 MHz +4 dB

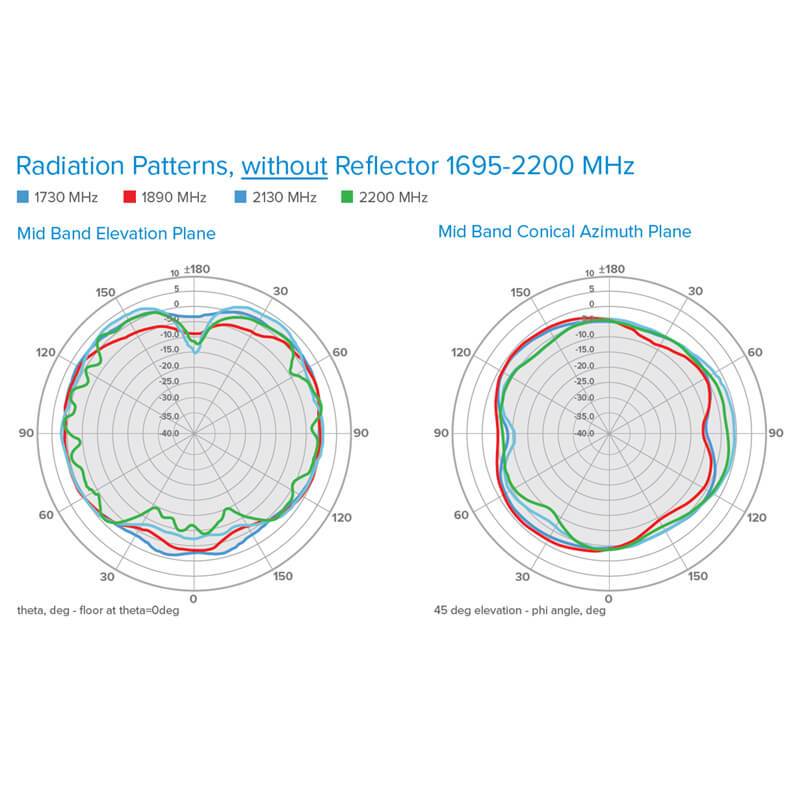

1695 - 2200 MHz +6 dB

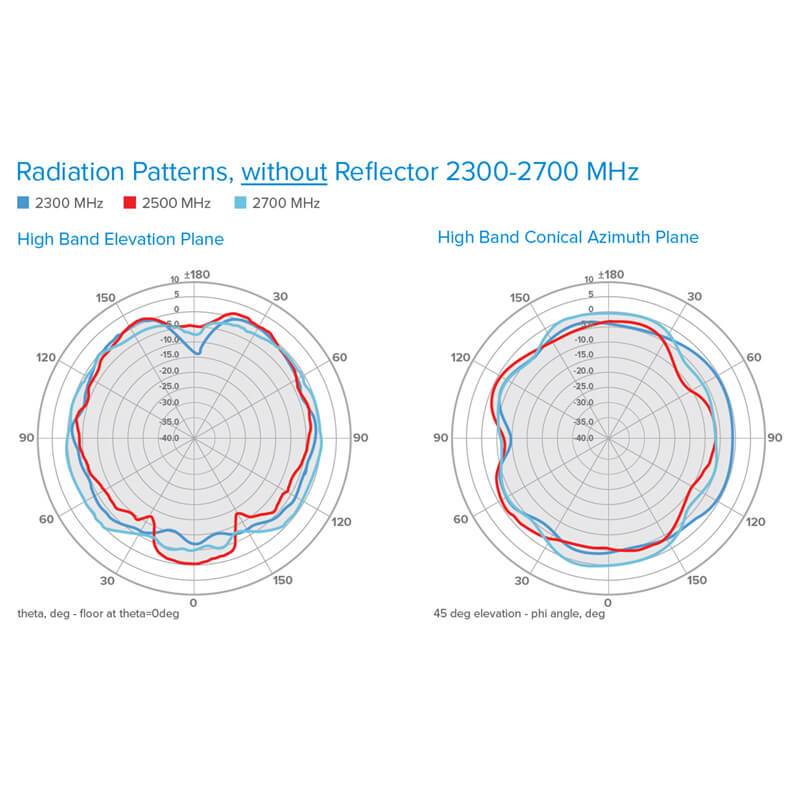

2300 - 2700 MHz +6 dB



Impedance 50 Ohm
Max Power Output 40 W
Connectors N-Female
VSWR 2:1
Horizantal Plane (th=45deg) Omni
Cable Type Diameter 0.16 in. Low Loss, Plenum Rated
Cable Length 10 in. / 254mm
4G Mount Dome Antenna Spec Sheet

Download Spec Sheet
