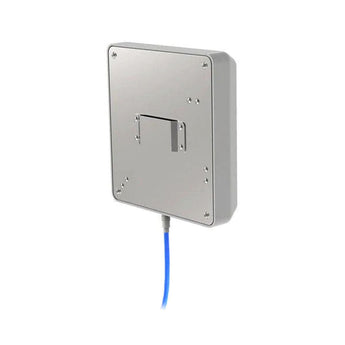

Indoor Wall Mount Panel Antenna 50 Ohm, PIM 140 Indoor Antennas Bolton Technical back view

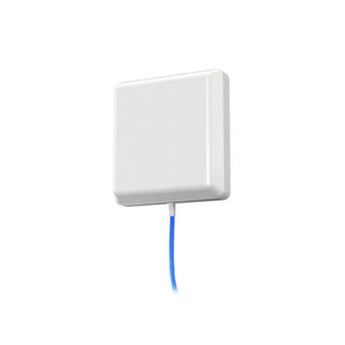

Indoor Wall Mount Panel Antenna 50 Ohm, PIM 140 Indoor Antennas Bolton Technical front view

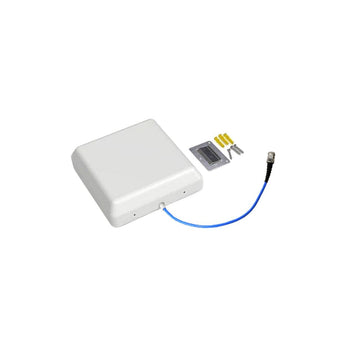

Indoor Wall Mount Panel Antenna 50 Ohm, PIM 140 Indoor Antennas Bolton Technical components

In stock

BT974860

Indoor Wall Mount Panel Antenna 50 Ohm, PIM 140

Name: Indoor Wall Mount Panel Antenna 50 Ohm, PIM 140
Brand: Bolton Technical
SKU: BT974860
Price: 565.00 ZAR
Availability: InStock

R 565.00

Tax included.

Quantity

Product variants

Key Features

Directional Indoor Coverage: Focuses boosted cellular signal in a specific direction - ideal for hallways, individual offices, server rooms, or coverage dead zones.
High Gain Performance: Provides up to 8 dBi gain, delivering stronger and more reliable signal than standard indoor antennas.
Low-PIM Design: Ensures minimal signal interference for cleaner, more efficient signal delivery.
Compact and Mountable: Slim form factor mounts easily to walls, blending seamlessly into both commercial and residential interiors.

Technical Specifications

Frequency Ranges & Gains

698–960 MHz: +6.5 dBi gain

1710–2700 MHz: +8.0 dBi gain

Polarisation: Vertical

Horizontal Beamwidth: 45° – 70°

VSWR: ≤ 2.0

Impedance: 50 Ohm

Maximum Power Input: 50 W

Connector Type: N-Female

Mounting: Wall-mount, indoor use

Coverage And Results

The Wall-Mount Panel Antenna delivers targeted indoor coverage with a directional beam ideal for office corridors, server rooms, apartments, or long interior spaces. It broadcasts boosted cellular signal forward in a horizontal beamwidth of 45°–70°, effectively covering areas up to 10–20 metres away when paired with a compatible signal booster. This makes it perfect for enhancing voice and data performance in specific zones where coverage is weak - ensuring better call quality, faster download speeds, and fewer dropped connections. When correctly positioned, the panel antenna brings reliable signal to high-demand indoor environments without wasting coverage on unwanted areas.

Pickup available at Bolton Technical Cape Town

Usually ready in 24 hours

Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For Indoor Wall Mount Panel Antenna 50 Ohm, PIM 140

Wall‑Mount Panel Antenna – Deliver Targeted Indoor Coverage Where You Need It Most

Struggling with weak indoor signal or spotty coverage in specific rooms? The Bolton Technical Wall‑Mount Panel Antenna is designed to direct boosted cellular signals into priority areas - perfect for corridors, offices, lobbies, server rooms, or any spot within your home or business that needs a reliable signal.

Why choose a Panel Antenna? Unlike omnidirectional domes that scatter signal everywhere, this panel antenna delivers a focused 45–70° beam - like a torchlight - allowing it to reach farther and concentrate power within a targeted zone. With up to 8 dBi gain, it outperforms basic dome antennas and gives you strong, focused coverage in the areas that matter most.

Key benefits: Prioritised area coverage – ideal for hallways, single offices, or zones needing enhanced signal. Compact & wall-mountable – discreet, space-saving design that installs easily with included hardware. Wideband compatibility – supports all major cellular bands. Low‑PIM, high performance – engineered for low intermodulation, ensuring clear, interference‑free signal delivery.

Designed for indoor installations: Simply mount it on a wall facing the desired coverage zone - ideal for spaces with higher ceilings or when focused, directional coverage is needed. Pair it with a compatible booster and a donor antenna to deliver clean, reliable indoor signal right where it's most needed.

When you need strategic signal targeting - boosting connectivity in specific areas instead of everywhere - the Bolton Wall‑Mount Panel Antenna is your efficient, high-performance solution.

Frequencies & Gains

Item No.	BT512365
698-960 MHz 1700-2700MHz	+6.5 dBi +8 dBi
Max Gain	+8 dBi
Input Impedance	50 Ohm
Polarization Type	Vertical
Connector Type	N-Female
Radiation	Directional
Max Power Output	50 W
Weight	0.25kg

Download Spec Sheet

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R60
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R90
Bulky Items (15kg+)	R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R90
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R150
Bulky Items (15kg+)	R350

Regional Delivery

Weight	Rate (ZAR)
0–2kg	R120
2–5kg	R150
5–10kg	R220
15kg+	R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

Items must be unmodified, in original condition, and include all accessories.
Original packaging and proof of purchase are required.
Returns that are not in original condition and packaging may be subject to a handling fee.
The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
Products purchased on promotion or clearance can only be returned within 5 days of receipt.
Express shipping fees are non-refundable.

Product Dimensions

Weight 0.45 KG

165mm L x 155mm W x 65mm D

Product FAQ

1 What is the main purpose of a panel antenna?

The panel antenna is designed to focus and distribute boosted cellular signal indoors in a specific direction - ideal for rooms, hallways, or priority areas that need targeted coverage.

2 How does it differ from a dome antenna?

A panel antenna broadcasts signal in a forward, directional beam (45°–70°), while a dome antenna radiates signal 360° downward. This makes the panel better for covering longer spaces or where precise signal placement is needed.

3 Where should I install a panel antenna?

Mount it on an interior wall, facing the area where you need stronger signal. It works well in office corridors, open-plan rooms, lobbies, server rooms, or even larger home interiors. We also have the panel bracket accessory the compliment your installation needs

4 What cable connector does it use?

It uses an N-Female connector and should be paired with compatible coaxial cables (like LMR-400 or RG-6 with N-Male connectors).

5 Does it need to be aligned or aimed?

Yes - while it's not as precise as a Yagi, the panel antenna should be aimed toward the target indoor area to maximize performance. Mounting height and direction will impact coverage efficiency.
