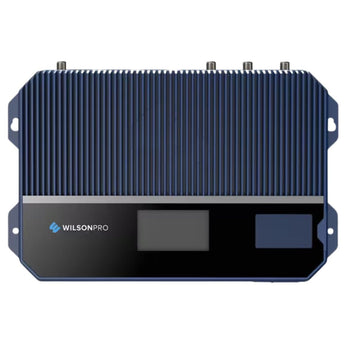

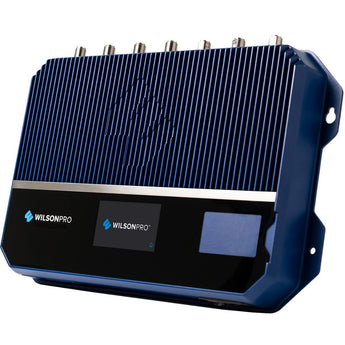

WilsonPro A8000 Enterprise Cell Phone Signal Booster
Key Features
- Real time performance and wired access to WilsonPro Cloud for remote monitoring
- Enhances Voice and Data (3G, 4G LTE) for all supported networks
- +70 dB gain and +21 dBm uplink
- Four independently controlled indoor antenna ports

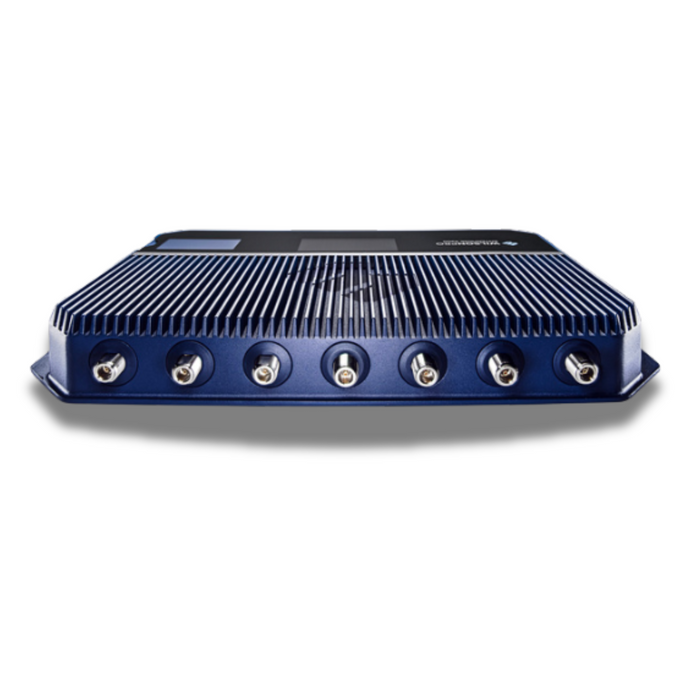

- Three outdoor antenna ports to target multiple network towers
- XDR technology to virtually eliminate shutdown or signal loss.

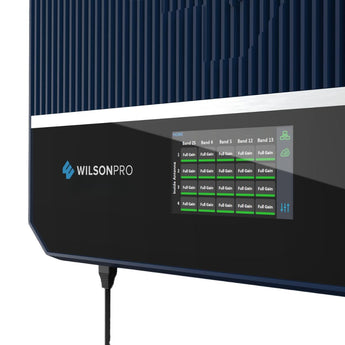

- 4.3-inch LCD touchscreen for an enhanced user-experience.
Coverage And Results
| If your current outside signal is: | Estimated indoor coverage area: |
|---|---|
| 5 Bars (-40 to -70 dB) | Up to 8000 m² |
| 4-5 Bars (-70 to -80 dB) | Up to 7432 m² |
| 3-4 Bars (-85 to -95 dB) | Up to 5574 m² |
| 2-3 Bars (-95 to -105 dB) | Up to 3716 m² |
| 1-2 Bars (-105 to -115 dB) | Up to 1858 m² |
| No Signal (-120 dB) | Most likely no signal to boost. |
Technical Specifications
| Parameter | Value |
|---|---|
| Band 1 | 2100 MHz |
| Band 3 | 1800 MHz |
| Band 8 | 900 MHz |
| Impedance | 50 Ohm |
| Max Gain | 74 dB |
| Input Power | AC/DC 5V / 3A |
| Connectors | N-Female |
| Dimensions | 3.8 × 16 × 22 cm |
| Weight | 1.55 kg (amplifier only) |
| Max Downlink Output Power | –18 dBm |
| Max Uplink Output Power | –21 dBm |
This is a commercial-grade product needing EXPERT ADVICE from professionals.
The Newest Technology in Signal Amplification.
Meet the WilsonPro A8000, the most powerful enterprise-grade signal booster in its class. Designed specifically for large commercial buildings and multi-story enterprises up to 8,000 m², the A8000 delivers consistent, high-performance 4G LTE and 3G connectivity across all South African networks.
Redefine Business Connectivity
The WilsonPro Enterprise A8000 is the most powerful wall-mounted professional-grade signal booster. Equipped with four amplifiers in a single housing, it supercharges talk, text, and 4G data for all cellular devices, making sure your team and clients stay connected effortlessly. It’s perfect for large commercial buildings with strong outside cell signals and medium enterprises in rural areas.
WilsonPro Innovative Patended Technologies
Macro tower optimization allows for multiple RF signal inputs that target frequencies, not carriers, for advanced amplification.
Receive system alerts, see performance reports, and update an installed WilsonPro system from any cellular-connected device.
Enhance signal optimization with remote or on-screen access to the software-driven tool.
Dynamically and automatically manage powerful RF signals to ensure the system stays connected.
Signal You Can Trust - Peace of Mind Wherever You Work.
Missed calls cost money. Bad reception breaks trust. With the WilsonPro A8000, you get the coverage you’ve been promised - without depending on fibre, WiFi, or chance.
✔️ More reliable voice and data
✔️ Stronger signal even in concrete or steel buildings
✔️ Simple setup. Long-lasting performance.
✔️ Results from day one
Total Connectivity. Any Network. Any Device.
Supports all major South African networks and all cellular devices - from smartphones to modems - for consistently better call quality, faster internet, and uninterrupted productivity.
Remote Monitoring using WilsonPro Cloud Portal
WilsonPro Cloud is a complete remote monitoring subscription service offered by WilsonPro for their premium Enterprise systems. It allows clients and integrators to remotely manage and monitor booster performance in real-time.
- Simplifies signal booster management and monitoring
- System issues are taken care of instantly
- Ensures ultra-high reliability
- Increases system uptime
- Diagnostics and troubleshooting can be done remotely, saving you money
- Features a remote antenna tuning tool to optimize signal

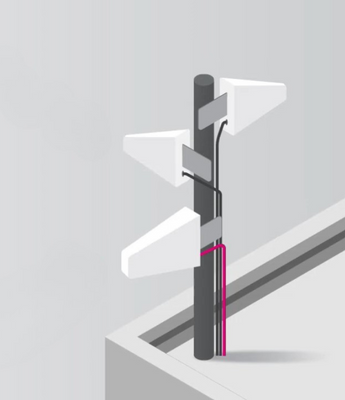

How Does Patented WilsonPro Multi-Tower Technology Work?
How Does Extended Dynamic Range (XDR) Technology Work?

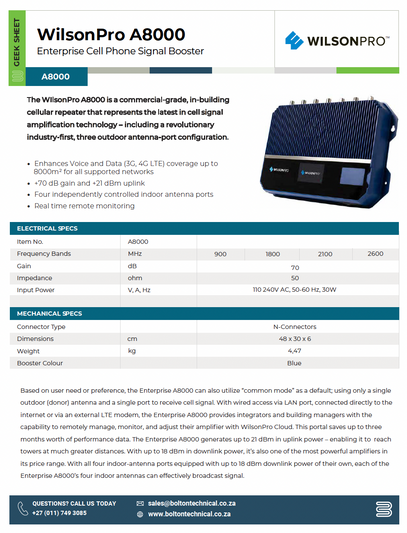

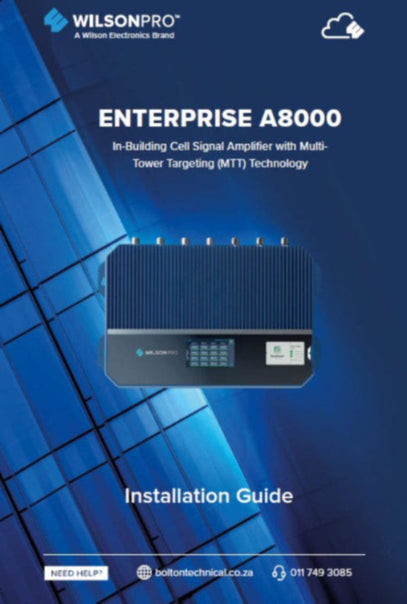

WilsonPro A8000 File Downloads
Add a short description for this section
Frequently Asked Questions
What is a DAS System?
A Distributed Antenna System (DAS) is a network of antennas connected to a shared signal source to improve indoor cellular coverage. DAS solutions boost weak mobile signals in buildings—making them ideal for areas where dropped calls, slow data, or no signal are common. If you’re asking how to fix signal issues in a commercial or industrial space, DAS is one of the most effective answers.
Why Use Passive DAS?
Reliable indoor mobile signal is essential for both business operations and visitor experience. Employees depend on strong signal for calls, emails, cloud access, and apps. Guests often need connectivity to access tickets, reservations, or mobile vouchers, check in with family, or browse social media.
A Passive DAS system, like the A8000, captures the outdoor cellular signal and distributes it indoors via coaxial cable. It’s a cost-effective solution that works across all major networks and is ideal for buildings up to 8,000 m².
What If Signal Problems Are Limited to One Carrier?
Signal strength issues can happen when a carrier’s tower is either too far or too close to the building. You can’t control what mobile network your staff or visitors use—but a Passive DAS system like the A8000 helps bridge the gap.
If certain areas of the building require multi-network coverage and others need carrier-specific optimization, the A8000 supports channel-specific tuning for more precise signal enhancement.
Passive vs Active vs Hybrid DAS – What’s the Difference?
Passive DAS (like the A8000): Uses outdoor signal captured by an antenna, distributed indoors over coax cable. Best for mid-sized commercial buildings, warehouses, and offices.
Should You Use Active or Passive DAS?
It depends on your coverage needs:
(A8000) if you need fast deployment and coverage of up to 8,000 m².
for large, high-density environments like airports, hospitals, or stadiums.
offers the flexibility of signal capture with fiber-based distribution—ideal for complex layouts or long-distance coverage needs.
How much coverage does the WilsonPro A8000 provide?
The WilsonPro A8000 can cover up to 8,000 square metres, depending on the strength of the incoming signal, building layout, and internal materials. It’s ideal for medium to large-scale commercial environments looking to eliminate dropped calls and weak data zones.
What kind of antennas are used with the WilsonPro A8000?
The A8000 works with high-gain outdoor donor antennas (like LPDA or Omni) and indoor broadcast antennas (ceiling domes or wall panels). The antenna configuration depends on your building’s structure and coverage needs, ensuring optimal performance and coverage.
Is professional installation required for the A8000?
Yes, due to its advanced capabilities and commercial-scale design, the WilsonPro A8000 requires professional installation. This ensures correct placement of antennas, optimal cable runs, and maximum signal performance with minimal interference.
Can the WilsonPro A8000 be monitored remotely?
Yes. The A8000 includes WilsonPro Cloud remote monitoring, allowing real-time performance tracking, diagnostics, and system alerts through a secure online dashboard - ideal for IT teams managing multiple sites or large facilities.
