Arrow - High Gain LPDA Outdoor Antenna side view

Arrow - High Gain LPDA Outdoor Antenna mounted to a pole

Arrow - High Gain LPDA Outdoor Antenna components

Arrow - High Gain LPDA Outdoor Antenna brackets

Arrow - High Gain LPDA Outdoor Antenna 50 Ohm N-Female Connector

In stock

BT974921

The Arrow LPDA – High Gain Directional Antenna (Refurbished)

Name: The Arrow LPDA – High Gain Directional Antenna (Refurbished)
Brand: Bolton Technical South Africa
SKU: BT974921
Price: 1500.00 ZAR
Availability: InStock

~~R 2,500.00~~ R 1,500.00 Save 40%

Tax included.

Quantity

Product variants

Key Features

Wide Frequency Range (698–2700 MHz)
High Directional Gain (+12 dBi)
Durable Weatherproof Construction - Built to withstand harsh outdoor conditions
Versatile Compatibility - Works seamlessly with all 50-ohm cellular boosters
Easy Mounting and Installation - Includes a universal bracket for secure pole or mast mounting

Technical Specifications

Frequency Range & Gain:

698-960 MHz: +12 dBi

1710-2700 MHz: +12 dBi

Impedance: 50 Ohm

Polarization: Vertical

Horizontal Beam Width: 55° ± 5°

Vertical Beam Width: 50° ± 5°

VSWR: ≤ 2.0

Connector: N-Female

Max Input Power: 50 Watts

Water Resistance: IPX Weather Rated

Reflector Finish: Aluminum

Radome Material: Aluminum

Coverage And Results

The Arrow LPDA antenna delivers impressive coverage by capturing weak and distant cellular signals over 8 kilometers away, making it ideal for rural, remote, and low-signal environments. Its high directional gain and wide frequency range ensure a strong, stable connection across all major South African networks and technologies. When properly aligned, users experience significantly faster data speeds, clearer calls, and fewer dropped connections - transforming frustrating, spotty reception into reliable, high-quality cellular service. This makes the Arrow LPDA a powerful solution for homes, farms, lodges, and commercial sites where consistent connectivity is essential.

Pickup available at Bolton Technical Cape Town

Usually ready in 24 hours

Need product assistance? Call us on 011 749 3085 for signal expert help.

Product Information For The Arrow LPDA – High Gain Directional Antenna (Refurbished)

The Arrow LPDA High Gain Directional Antenna – Precision Signal Power for South Africa’s Toughest Terrains

Need serious signal performance in challenging environments? The Arrow LPDA (Log Periodic Dipole Array) directional antenna is engineered for maximum reach and reliability - delivering exceptional cellular reception in places where other antennas fall short. Whether you're setting up in a remote farm, mountain cabin, coastal lodge, or suburban home, the Arrow ensures your signal booster or router performs at its peak.

Why choose an LPDA? Unlike standard directional antennas, the Arrow LPDA covers a wide frequency range (698–2700 MHz) and features a highly focused +12 dBi gain. Think of it as a sniper rifle for signal: long-range, accurate, and powerful. Its wideband design means it works with all major cellular networks (Vodacom, MTN, Telkom, Cell C, Rain) and technologies (2G, 3G, & 4G LTE). This makes it a go-to choice for users who want flexibility and performance in one rugged package.

Key benefits: Pulls in weak signals from distant or obstructed towers, especially valuable in low-signal, rural, or off-grid areas. Compatible with virtually all carriers and devices thanks to its broad frequency range. Built to survive harsh South African climates - from summer sun to winter storms. Pairs seamlessly with 50-ohm cellular signal boosters and high-performance cellular routers.

Installation note: The Arrow LPDA requires line-of-sight aiming for optimal performance. Once aligned with your nearest tower, it delivers cleaner, stronger signal with fewer dropped calls, faster data, and a better overall experience - especially compared to omnidirectional options.

If you need reliable cellular coverage in the most signal-starved parts of the country, the Arrow LPDA is your trusted long-range signal solution - precision-tuned for South Africa’s unique landscapes and connectivity challenges.

Frequencies & Gains

Frequency	Gain
698 - 960 MHz	+12 dB
1710 - 2700 MHz	+12 dB
Impedance	50 Ohm
Polarization	Vertical & Horizontal
Horizontal Beam Width (°)	55 ± 5
Vertical Beam Width (°)	50 ± 5
VSWR	≤ 2.0
Connectors	N-Female
Input Power MAX	50 Watt
Water Resistance	IPX Weather Rated
Reflector Finish	Aluminum
Radome Material	Aluminum
Dimensions	110 x 20 x 4.7 cm
Weight	2.0 kg

Download Geek Sheet

Free Delivery Info

Free delivery on orders over R750 to all major cities. No hidden fees.

Local Delivery (Johannesburg, Cape Town and Surrounds)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R60
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R90
Bulky Items (15kg+)	R250

Main Centres (JHB, DBN, PTA, CPT, BFN, PE, EL)

Order Value / Weight	Rate (ZAR)
R750 or more	Free
R750 or less (0–2kg)	R90
R750 or less (2–5kg)	R90
R750 or less (5–10kg)	R150
Bulky Items (15kg+)	R350

Regional Delivery

Weight	Rate (ZAR)
0–2kg	R120
2–5kg	R150
5–10kg	R220
15kg+	R450

Courier & Delivery Times

Preferred couriers: The Courier Guy, Courier IT, and Dawn Wing.

Standard delivery: 3–5 business days nationwide.

Need it faster? Contact us directly. Express orders must be placed before 10am for same-day dispatch.

Note: Remote area rates available on request. Email sales@boltontechnical.co.za.

We reserve the right to amend delivery fees. All updates will be reflected here.

Returns & Refunds

2-Year Warranty

All our signal boosters and cellular amplifiers include a 2-year limited manufacturer’s warranty. If your unit experiences a fault during this period, please reach out to us — we’ll assess the issue and, where applicable, arrange for repair or replacement. Our goal is to support you well beyond your initial purchase, within reasonable use and warranty terms.

30-Day Return Policy

We understand that circumstances can change. That’s why we offer a 30-day return period for most products, subject to inspection and approval. While we strive to make this process smooth, returns are handled on a case-by-case basis to ensure fairness for both parties.

To request a return, please call us at (JHB) 011-749-3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to obtain an RMA (Return Merchandise Authorisation) number before sending anything back.

Return Conditions

Items must be unmodified, in original condition, and include all accessories.
Original packaging and proof of purchase are required.
Returns that are not in original condition and packaging may be subject to a handling fee.
The warranty does not cover damage due to misuse, mishandling, or unauthorised modifications.
Customers are responsible for return shipping. We’ll cover the shipping cost back to you if a repair or replacement is approved.
Products purchased on promotion or clearance can only be returned within 5 days of receipt.
Express shipping fees are non-refundable.

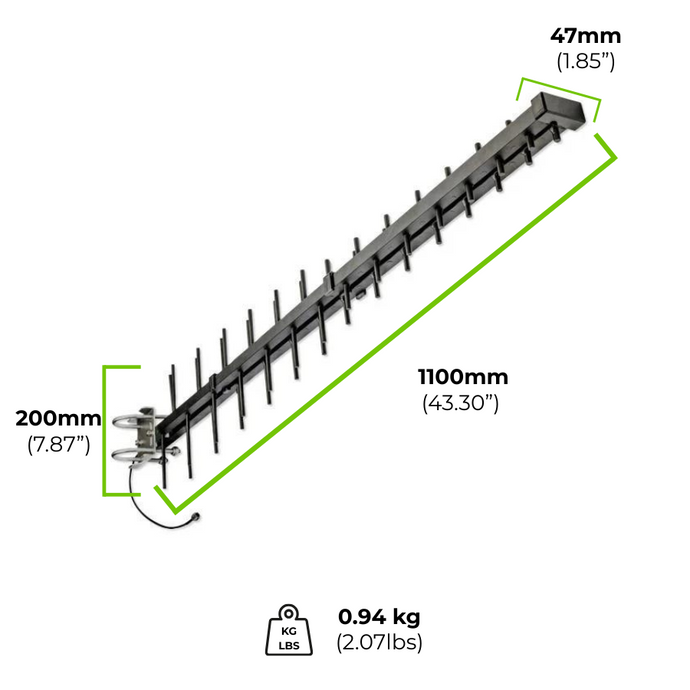

Product Dimensions

Weight 0,94 KG

1100mm L x 200mm W x 47mm D

Product FAQ

1 What is the range of the Arrow LPDA antenna?

The Arrow LPDA can reach cell towers over 8 km away in ideal conditions with clear line of sight, making it ideal for rural and remote areas.

2 Is the Arrow LPDA weatherproof?

Yes, it’s built for permanent outdoor installation and designed to withstand sun, wind, and rain — ideal for South Africa’s diverse climates.

3 What type of cable connector does the Arrow LPDA use?

The Arrow LPDA comes with an N-Female connector, which is standard for most 50-ohm boosters, routers, and coaxial cables. You'll likely need an adapter (e.g., SMA or TS9) for some routers or modems.

4 Do I need a signal booster to use the Arrow LPDA?

Yes, for best performance, the Arrow should be used with a cellular signal booster or a router/modem with external antenna ports. It captures the signal but does not amplify it by itself.

5 Can I install the Arrow LPDA myself?

Yes, many users install it themselves with basic tools. However, accurate tower alignment is crucial, so using signal scanning apps or hiring a professional may improve results.
