MIMO-3-17 BT151588
Availablity: Out of Stock

MIMO-3-17

R 2,599.95Incl. VAT
  • 7-in-1 High performance multi frequency 2G/3G/4G/LTE/5G antenna
  • 2X2 MIMO LTE, 2X2 MIMO Wi-Fi & GPS / GLONASS
  • Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP 68)
  • Ideal for transportation and marine use
Our expert team is available at 011 749 3085 to provide you with personalised recommendations and hassle-free installation advice!

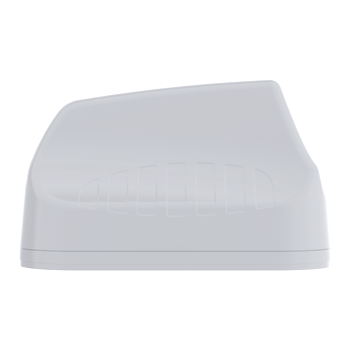

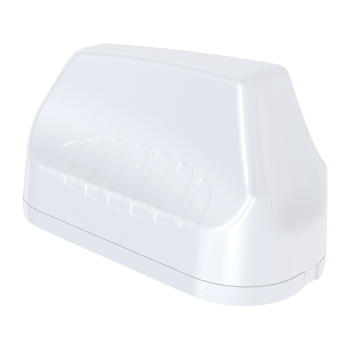

The MIMO-3-17 is a 7-in-1 high-performance multi-frequency antenna within a single housing, providing two cellular, two Wi-Fi and a GPS/GLONASS antenna.

The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.

The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2x2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-17 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna.

The radiation patterns of all radiating elements provide an excellent balance between Omni directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market.

Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies while remaining future proof over the wide frequency band.

The MIMO-3-17 is a 7-in-1 high-performance multi-frequency antenna within a single housing, providing two cellular, two Wi-Fi and a GPS/GLONASS antenna.

The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.

The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2x2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-17 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna.

The radiation patterns of all radiating elements provide an excellent balance between Omni directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market.

Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies while remaining future proof over the wide frequency band.

The MIMO-3-17 Antenna Frequencies & Gains

410 - 470 MHz 1.5 dBi
698 - 960 MHz 2.2 dBi
1710 - 2700 MHz 6.2 dBi
3400 - 3800 MHz 4.8 dBi



Impedance 50 Ohm
Polarization Vertical
VSWR ≤ 2.5:1 across 90% of the bands
Connectors SMA (M)
Input Power MAX
10 watt
Water Resistance IP 68
Radome Material UV Stable ASA
Dimensions 253 mm x 128 mm x 144 mm
Weight 1.51 kg
