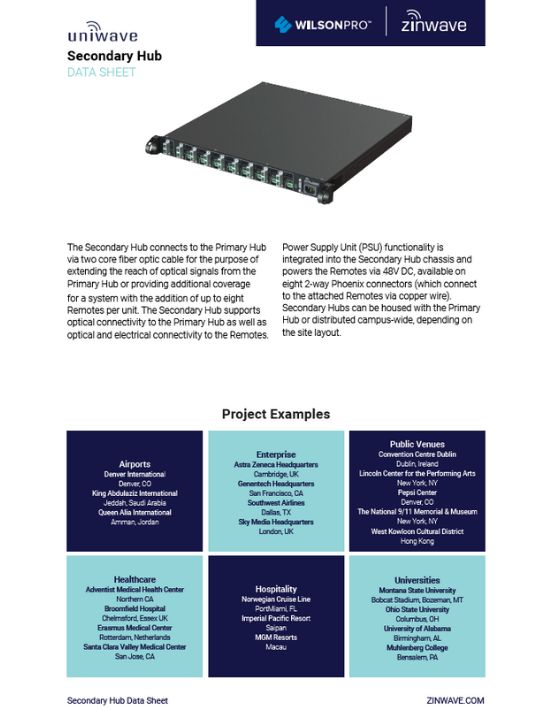

Zinwave Uniwave 8000 Secondary Hub Technical Specs
Unit Specifications
| Power Connectivity |
Dual Screw Terminals AWG 12-24 |
| Fiber Connectivity |
SC/APC Duplex |
| Other Connectivity |
Alarm Relay (DE-9F) |
| Dimensions (W / D / H) |
17.48” (444mm) x 17.13” (435mm) x 1.72” (43.7mm) (1U) |
| Weight |
15 lbs (6.8 kg) |
| Operating Temp (Ambient, Non-Condensing) |
-5°C to +45°C (23°F to 113°F) |
AC Power Specifications (Input)
|
Min |
Typical |
Max |
Unit |
Notes |
| Input Voltage |
90 |
110 / 230 |
264 |
VAC |
Auto-sensing Input |
| Input Frequency |
-5 |
50 / 60 |
5% |
Hz |
|
| Fuse |
-- |
12 |
-- |
A |
Anti-surge (on PSU) |
Approvals & Listings
| Africa |
ICASA Certified |
| Europe |
CE Marked (Radio Equipment Directive 2014/53/EU, RoHS 2011/65/EC) |
| USA |
FCC Certified |
| Canada |
Industry Canada Certified |
| Safety |
IEC 60950-1, EN 60950-1, UL60950-1 (UL Listed - E486578) |
| Laser Safety |
IEC 60825-1:2007 |
